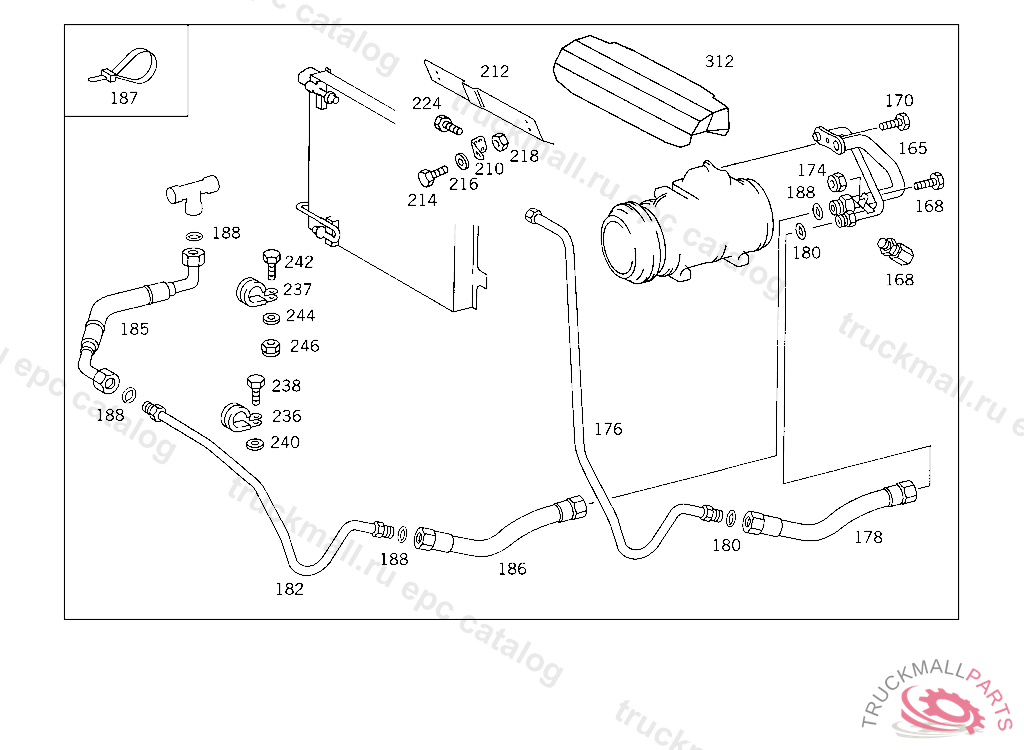

Поз.
Артикул
Описание
165
PIPE LINE FROM COMPRESSOR TO CONDENSER AND TO CONNECTING LINE
165
PIPE LINE FROM COMPRESSOR TO CONDENSER AND TO CONNECTING LINE
165
PIPE LINE FROM COMPRESSOR TO CONDENSER AND TO CONNECTING LINE
165
PIPE LINE FROM COMPRESSOR TO CONDENSER AND TO CONNECTING LINE
168
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0018306384
170
SCREW PIPE CLAMP
170
SCREW PIPE CLAMP
170
SCREW , Replaced By: N304017008021
174
NUT , Replaced By: N913004006001
174
NUT PUMP TO BRACKET
176
PIPE LINE COMPRESSOR-TO-CONDENSER REFRIGERANT LINE,5 526948
176
PIPE LINE COMPRESSOR-TO-CONDENSER REFRIGERANT LINE
176
PIPE LINE COMPRESSOR-TO-CONDENSER REFRIGERANT LINE
176
PIPE LINE COMPRESSOR-TO-CONDENSER REFRIGERANT LINE
178
HOSE FROM COMPRESSOR TO CONDENSER
180
SEAL RING , Replaced By: A1409970845
180
SEAL RING , Replaced By: A1249970545
180
SEAL RING HOSE TO CONDENSER 14 MM
182
PIPE LINE REFRIGERANT LINE TO T-FITTING,5 526948
182
PIPE LINE REFRIGERANT LINE TO T-FITTING,5 526948
185
HOSE REFRIGERANT LINE TO T-FITTING
185
HOSE REFRIGERANT LINE TO T-FITTING
185
HOSE REFRIGERANT LINE TO T-FITTING
185
HOSE REFRIGERANT LINE TO T-FITTING
185
HOSE REFRIGERANT LINE TO T-FITTING
185
PIPE LINE REFRIGERANT LINE TO T-FITTING,5 526948
185
HOSE REFRIGERANT LINE TO T-FITTING
185
HOSE REFRIGERANT LINE TO T-FITTING,5 954699
185
HOSE REFRIGERANT LINE TO T-FITTING,5 954699
186
HOSE , Replaced By: A6738324923
186
HOSE REFRIGERANT LINE TO T-FITTING
187
LOOM TIE LINE MOUNTING 280 MM
188
SEAL RING , Replaced By: A1249970345
188
SEAL RING , Replaced By: A1409970945
188
O-RING HOSE TO EXPANSION VALVE 17X2
188
SEAL RING HOSE TO RESERVOIR 10.6 MM
210
BRACKET RADIATOR
212
ANTINOISE CAPSULE , Replaced By: A6765200022
212
COVERING RADIATOR
214
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
216
WASHER , Replaced By: N006902011100
216
WASHER , Replaced By: N006902011102
216
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
218
NUT STRAP TO BRACKET
218
NUT , Replaced By: N910113010000
224
SCREW BRACKET TO WATER RADIATOR
236
CLAMP LINE MOUNTING
236
CLAMP LINE MOUNTING
237
CLAMP BRAKE HOSE BRACKET
237
CLAMP BRAKE HOSE BRACKET
238
SCREW COVER PLATE TO BRACKET
238
SCREW , Replaced By: N304017008016
238
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
240
WASHER EXHAUST MUFFLER TO STRAP
240
WASHER , Replaced By: N000125008443
242
SCREW CAB FLOOR COVERING M 6X25
244
WASHER COMPRESSED AIR LINE TO BRACKET
244
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
246
NUT , Replaced By: N913004006001
246
NUT PUMP TO BRACKET
312
PROTECTIVE PLATE (HEAT SHIELD)
999
HOSE REFRIGERANT LINE TO T-FITTING,5 954699
999
BRACKET AT BRACKET
999
PIPE LINE SUCTION LINE TO VALVE
999
BRACKET REFRIGERANT LINE TO T-FITTING
999
BRACKET LIQUID TANK, FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 5 526949 - 5 564192
999
BRACKET RIGHT FRONT
999
VALVE
