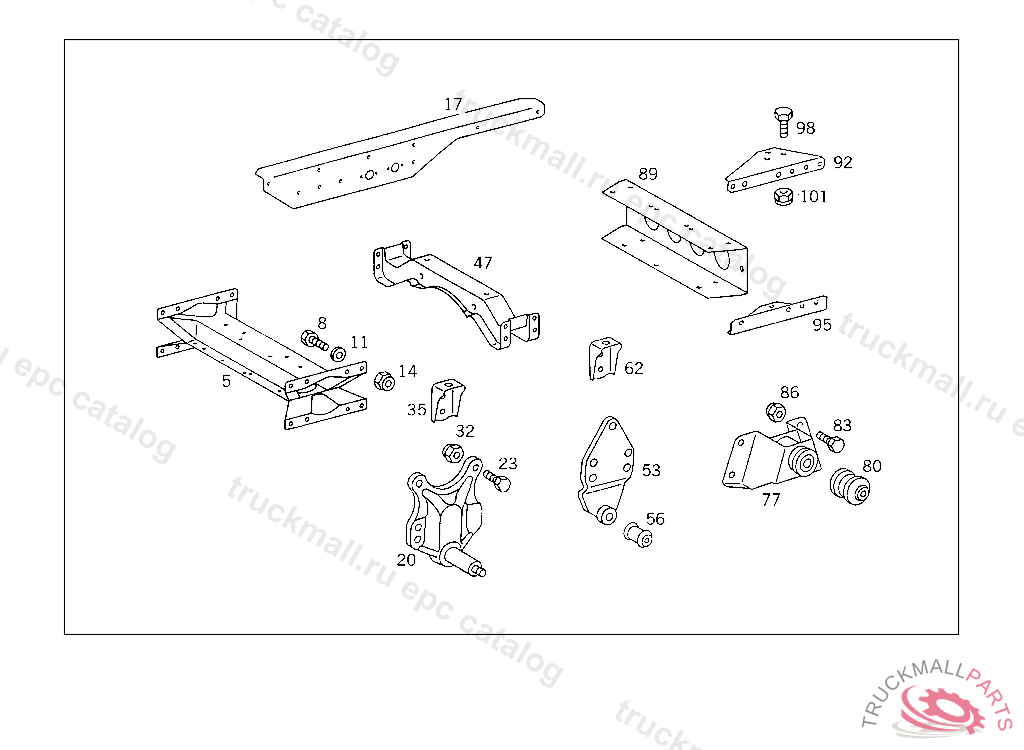

Поз.
Артикул
Описание
5
CROSS MEMBER SPARE WHEEL CARRIER, TO BE ADAPTED DURING ASSEMBLY
5
CROSS MEMBER , Replaced By: A6753100137
5
CROSS MEMBER REAR SPRING BRACKET NO.9
5
CROSS MEMBER , Replaced By: A6753100237
20
SPRING BRACKET (REAR SPRING BRACKET),FRONT, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME5 220620
20
SPRING BRACKET REAR SPRING FRONT BRACKET
23
SCREWM 14X15X21X38
23
SCREWM 14X15X19X36
32
NUT STEERING SUPPORT TO FRAME
32
NUT STEERING SUPPORT TO FRAME
32
NUT , Replaced By: N910113014000
35
CONSOLE BODY MOUNTING
35
CONSOLE , Replaced By: A6733171101
47
CROSS MEMBER SHOCK ABSORBER
53
CONSOLE TORSION BAR,REAR
56
BEARING TORSION BAR BEARING
62
CONSOLE , Replaced By: A6733171101
62
CONSOLE BODY MOUNTING
77
SPRING BRACKET REAR-SPRING REAR BRACKET
80
BUSHING SPRING EYE,REAR
83
SCREWM 14X15X17X34
86
NUT , Replaced By: N910113014000
86
NUT STEERING SUPPORT TO FRAME
89
CROSS MEMBER
92
GUSSET PLATE TOP RIGHT,5 437116
92
GUSSET PLATE TOP LEFT,5 437116
95
GUSSET PLATE BOTTOM LEFT,5 437116
95
GUSSET PLATE BOTTOM RIGHT,5 437116
98
SCREW , Replaced By: N308676012012
98
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
98
SCREW MOUNTING TO CONSOLE M 14X35
98
SCREW , Replaced By: N308676014008
101
NUT , Replaced By: N910113012003
101
NUT , Replaced By: N910113014000
101
NUT STEERING SUPPORT TO FRAME
101
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
