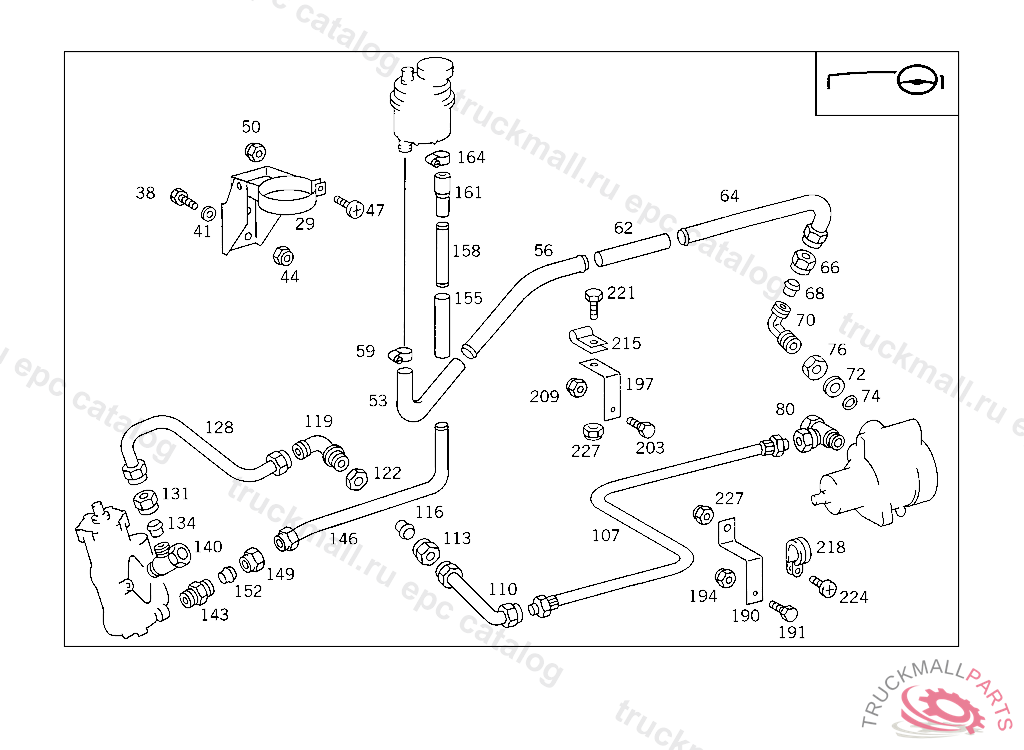

Поз.
Артикул
Описание
29
BRACKET OIL TANK,5 553319
29
BRACKET , Replaced By: A6754601035, +001A6752600262
38
SCREW BEARING BRACKET TO SIDE MEMBER
41
SPACER WASHER BRACKET TO FRAME
44
NUT COMBINATION CYLINDER TO BEARING BRACKET
44
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
47
SCREW OIL TANK TO BRACKET
50
NUT PUMP TO BRACKET
50
NUT , Replaced By: N913004006001
53
HOSE ,K 055044
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138294
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 163366
59
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
59
CLAMP , Replaced By: N000000000667
62
HOSE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138294
64
LINE ,K 055043K 126843
66
NUT LINE CONNECTION
66
UNION NUT LINE CONNECTION, Replaced By: N000000006243
68
GLAND , Replaced By: A0019901267
70
ELBOW FITTING SUCTION LINE TO OIL PUMP
72
THRUST RING SUCTION LINE TO OIL PUMP
74
SEALING CORD SUCTION LINE TO OIL PUMP
76
NUT SUCTION LINE TO OIL PUMP
80
SCREW CONNECTION DELIVERY LINE TO PUMP
80
SCREW CONNECTION DELIVERY LINE TO PUMP
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138293
107
HOSE POWER-STEERING-PUMP-TO-STEERING-BOX DELIVERY LINE
110
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING,5 955601
113
NUT. UNION NUT LINE CONNECTION
116
CUTTING RING. GLAND LINE CONNECTION
119
FITTING DELIVERY LINE TO FRAME
122
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
128
LINE (DELIVERY LINE) FROM FITTING TO STEERING
131
NUT. UNION NUT LINE CONNECTION
134
CUTTING RING. GLAND LINE CONNECTION
140
SCREW CONNECTION DELIVERY LINE TO STEERING
143
FITTING DELIVERY LINE TO PUMP
146
LINE12 MM, ORDER BY THE METER4 691315
146
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 163366
149
UNION NUT LINE CONNECTION
149
UNION NUT LINE CONNECTION, Replaced By: N000000006239
152
SEAL CONE LINE CONNECTION
152
GLAND , Replaced By: A0019901967
155
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
158
LINE (RETURN LINE),FROM STEERING TO OIL TANK
161
HOSE ,K 055044
164
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
164
CLAMP HOSE TO FITTING AND TO OIL TANK
190
BRACKET DELIVERY LINE TO FRAME
191
SCREW END PIECE TO EXHAUST PIPE M 12X30
191
SCREW , Replaced By: N304017012020
194
NUT END PIECE TO EXHAUST PIPE
197
BRACKET FUEL LINE TO BELL HOUSING
203
SCREW PIPE CLAMP
203
SCREW , Replaced By: N304017008021
203
SCREW BRACKET TO SIDE MEMBER
203
SCREW , Replaced By: N304017010002
209
NUT , Replaced By: N913004008001
209
NUT STRAP TO BRACKET
209
NUT , Replaced By: N910113010000
215
CLAMP LINE MOUNTING
215
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
215
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
218
CLAMP CABLE HARNESS MOUNTING
218
CLAMP , Replaced By: N000000001045
218
CLAMP , Replaced By: N916016010211
218
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
218
CLAMP DELIVERY AND SUCTION LINES TO FRAME
218
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
221
SCREW COVER PLATE TO BRACKET
224
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
227
NUT PUMP TO BRACKET
227
NUT , Replaced By: N913004006001
999
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
999
TUBE FROM HIGH PRESSURE HOSE TO STEERING
999
PROTECTIVE CAP
999
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
999
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
999
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
999
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING,5 701910
999
LINE (DELIVERY LINE) FROM FITTING TO STEERING
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,K 051606
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
999
BRACKET DELIVERY AND SUCTION LINES
999
LINE , Replaced By: A0004291601
999
FITTING IN-LINE FILTER,CONNECTION: "10",230274
999
BULKHEAD FITTING DELIVERY LINE TO FRAME, Replaced By: N000000006392
