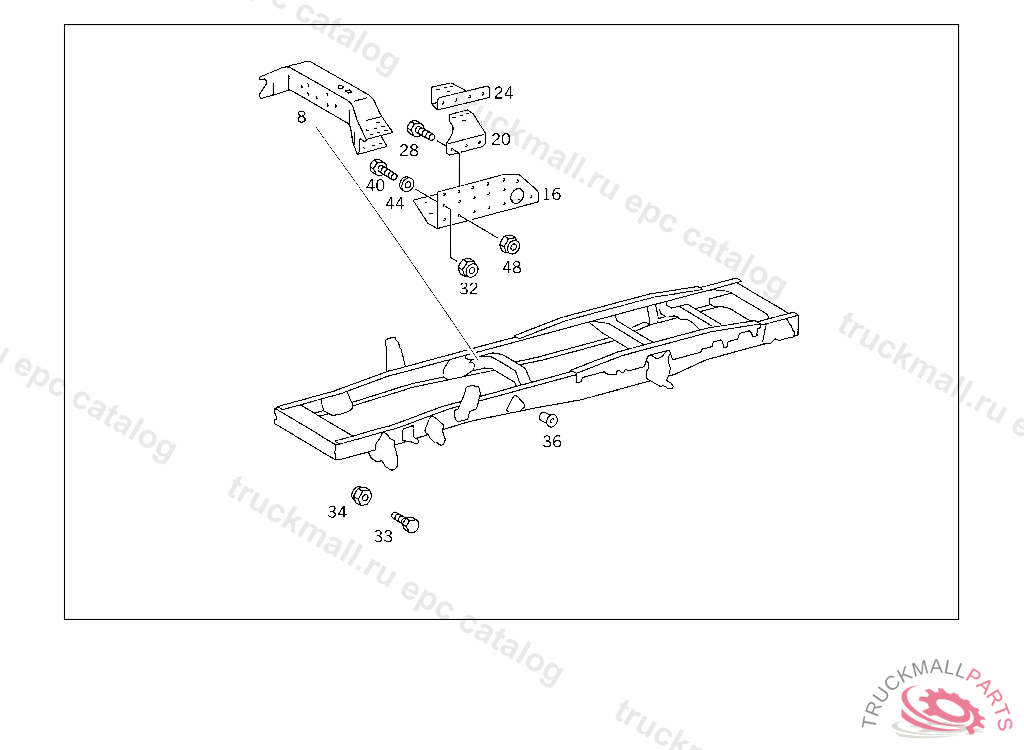

Поз.
Артикул
Описание
8
CROSS MEMBER ,5 519078, Replaced By: A6753120011, +001A6753112260, +001A6753112360, +001A6753112383, +001A6733121152, +001A6733121252, +008N000961012052, +006N000961012151, +014N913004012008
8
CROSS MEMBER ,5 519078, Replaced By: A6753120011, +001A6753112260, +001A6753112360, +001A6753112383, +001A6733121152, +001A6733121252, +008N000961012052, +006N000961012151, +014N913004012008
8
CROSS MEMBER ,5 519078, Replaced By: A6753120011, +001A6753112260, +001A6753112360, +001A6753112383, +001A6733121152, +001A6733121252, +008N000961012052, +006N000961012151, +014N913004012008
8
CROSS MEMBER TRANSMISSION,5 519079
8
CROSS MEMBER TRANSMISSION,5 519079
16
REINFORCEMENT LEFT
16
REINFORCEMENT LEFT
16
REINFORCEMENT RIGHT
16
REINFORCEMENT RIGHT
20
REINFORCEMENT LEFT
20
REINFORCEMENT RIGHT
24
ANGLE , Replaced By: A6733121252
24
ANGLE LEFT
24
ANGLE LEFT,5 519078
24
ANGLE LEFT,5 519078
24
ANGLE LEFT
24
ANGLE LEFT
24
ANGLE LEFT
24
ANGLE , Replaced By: A6733121152
24
ANGLE LEFT,5 519078
24
ANGLE LEFT,5 519078
28
SCREW , Replaced By: N304017010040
28
SCREW STRUT TO CROSS MEMBER M 10X25
28
SCREW , Replaced By: N304017010047
28
SCREW CONNECTOR TO REAR SHIFTING ROD
28
SCREW CONNECTOR TO REAR SHIFTING ROD
32
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
32
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
33
SCREWM 12X13X18X35
34
NUT , Replaced By: N910113012003
34
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
36
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
40
SCREW BRACKET TO FRAME M 12X35
40
SCREW BRACKET TO FRAME M 12X35
44
WASHER BRACKET TO FRAME
44
WASHER BRACKET TO FRAME
48
NUT , Replaced By: N910113012003
48
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
999
CROSS MEMBER
999
CROSS MEMBER TRANSMISSION NO.2, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
999
ANGLE LEFT
