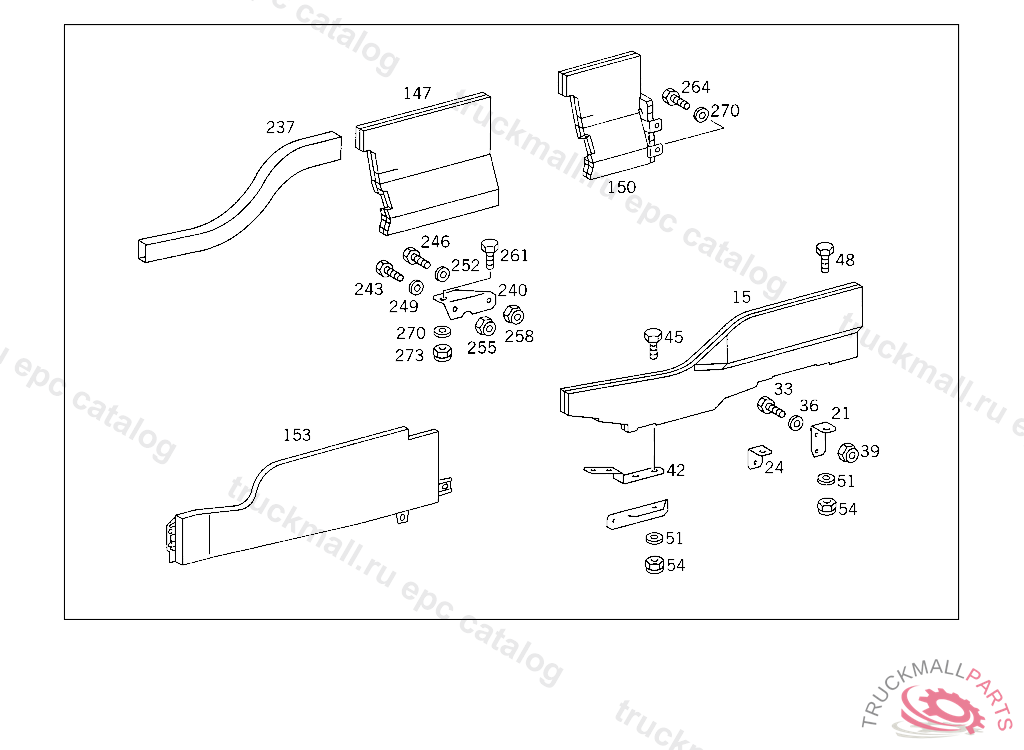

Поз.
Артикул
Описание
15
ANTINOISE CAPSULE LEFT TOP
21
BRACKET ANTINOISE CAPSULE
24
BRACKET ANTINOISE CAPSULE
33
SCREW SUPPORT TO CROSS MEMBER M 10X28
33
SCREW SUPPORT TO CROSS MEMBER M 10X28
36
WASHER , Replaced By: N006902011102
36
WASHER , Replaced By: N006902011100
36
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
39
NUT STRAP TO BRACKET
39
NUT STRAP TO BRACKET
39
NUT , Replaced By: N910113010000
42
BRACKET LEFT TOP ANTINOISE CAPSULE TO FRONT BRACKET
45
SCREW , Replaced By: N304017008034
45
SCREW BRACKET TO CROSS CONNECTION STRUT
48
SCREW , Replaced By: N304017008021
48
SCREW PIPE CLAMP
51
WASHER EXHAUST MUFFLER TO STRAP
51
WASHER EXHAUST MUFFLER TO STRAP
51
WASHER , Replaced By: N000125008443
54
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
54
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
54
NUT , Replaced By: N913004008001
147
ANTINOISE CAPSULE RIGHT TOP
147
ANTINOISE CAPSULE RIGHT TOP
150
ANTINOISE CAPSULE RIGHT TOP
150
ANTINOISE CAPSULE RIGHT TOP
153
ANTINOISE CAPSULE RIGHT
237
ANTINOISE CAPSULE INTAKE MUFFLER
240
BRACKET BRACKET TO FRAME SIDE MEMBER
243
SCREW SUPPORT TO CROSS MEMBER M 10X28
243
SCREW SUPPORT TO CROSS MEMBER M 10X28
246
SCREW BRACKET TO LEFT SIDE MEMBER
246
SCREW BRACKET TO LEFT SIDE MEMBER
249
WASHER , Replaced By: N006902011102
249
WASHER , Replaced By: N006902011100
249
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
249
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
252
WASHER BRACKET TO FRAME
252
WASHER BRACKET TO FRAME
255
NUT , Replaced By: N910113010000
255
NUT STRAP TO BRACKET
255
NUT STRAP TO BRACKET
258
NUT SUPPORT TO SIDE MEMBER
258
NUT SUPPORT TO SIDE MEMBER
261
SCREW , Replaced By: N304017008021
261
SCREW PIPE CLAMP
264
SCREW CLAMP TO BRACKET AND TO PIPE
264
SCREW TAIL LAMP TO BRACKET
270
WASHER , Replaced By: N000125008443
270
WASHER EXHAUST MUFFLER TO STRAP
273
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
273
NUT , Replaced By: N913004008001
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
SCREW CLAMP TO BRACKET,5 597426
999
SCREW BRACKET TO BRACKET
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
WASHER BRACKET TO COVERING
999
WASHER , Replaced By: N009021010209
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: N009021008213
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW HAND PUMP TO BRACKET
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017008021
999
BRACKET RIGHT ANTINOISE CAPSULE
999
BRACKET , Replaced By: A6733170684
999
BRACKET , Replaced By: A3914750026
999
COVER PLATE RIGHT BOTTOM
999
ANTINOISE CAPSULE RIGHT BOTTOM
999
ANTINOISE CAPSULE RIGHT TOP
999
ANTINOISE CAPSULE LEFT TOP
999
ANTINOISE CAPSULE LEFT BOTTOM
999
LOCK ANTINOISE CAPSULE TO ANTINOISE CAPSULE
999
BRACKET BRACKET TO FRAME SIDE MEMBER
999
DAMPING STRIP
999
DAMPING STRIP
999
DAMPING STRIP RIGHT,5 462573
999
DAMPING STRIP RIGHT,5 462573
999
DAMPING STRIP ,5 462572
999
DAMPING STRIP ,5 462572
999
DAMPING STRIP ,5 462572
999
DAMPING STRIP
999
DAMPING STRIP
999
ANTINOISE CAPSULE RIGHT TOP
999
ANTINOISE CAPSULE RIGHT TOP
999
BRACKET RIGHT ANTINOISE CAPSULE
999
ANTINOISE CAPSULE RIGHT TOP
999
BRACKET RIGHT ANTINOISE CAPSULE
999
SHIM CONSOLE TO FRAME, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
999
SCREW , Replaced By: N910142008009
999
SCREW , Replaced By: N910142008001
999
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
999
NUT BRACKET TO BRACKET
