Поз.
Артикул
Описание

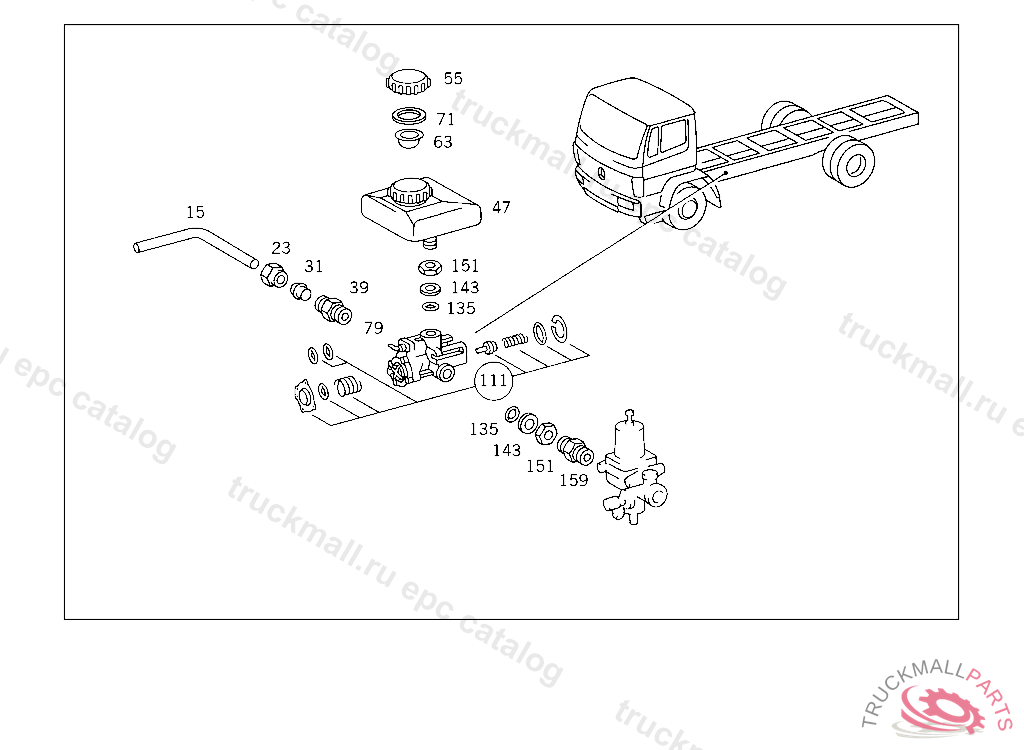

15
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
23
FITTING LINE CONNECTION
31
GLAND LINE CONNECTION
39
FITTING SHUTTLE VALVE,CONNECTION: "20"
47
RESERVOIR ANTI-FREEZE DEVICE
47
RESERVOIR , Replaced By: A0024311602, +001A0004317833
55
FILLER CAP BUTTRESS THREAD
55
FILLER CAP , Replaced By: A0004315433
63
STRAINER
71
SEAL RING
71
SEAL RING , Replaced By: A0009972940
79
ANTI-FREEZE DEVICEWABCO
111
REPAIR KITTO 000 431 29 15/32 15
135
O-RING CHECK VALVE TO AIR RESERVOIR
135
O-RING CHECK VALVE TO AIR RESERVOIR
135
O-RING CHECK VALVE TO AIR RESERVOIR
143
THRUST RING CHECK VALVE TO AIR RESERVOIR
143
THRUST RING CHECK VALVE TO AIR RESERVOIR
143
THRUST RING CHECK VALVE TO AIR RESERVOIR
143
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
151
NUT CHECK VALVE TO AIR RESERVOIR
151
NUT CHECK VALVE TO AIR RESERVOIR
159
FITTING AIR RESERVOIR,CONNECTION: "13"
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
999
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3975011082
999
HOSE BRAKE VALVE,CONNECTION: "30"
999
HOSE , Replaced By: A3975010382
999
UNION NUT LINE CONNECTION
999
UNION NUT BUTT SCREW CONNECTION
