Поз.
Артикул
Описание

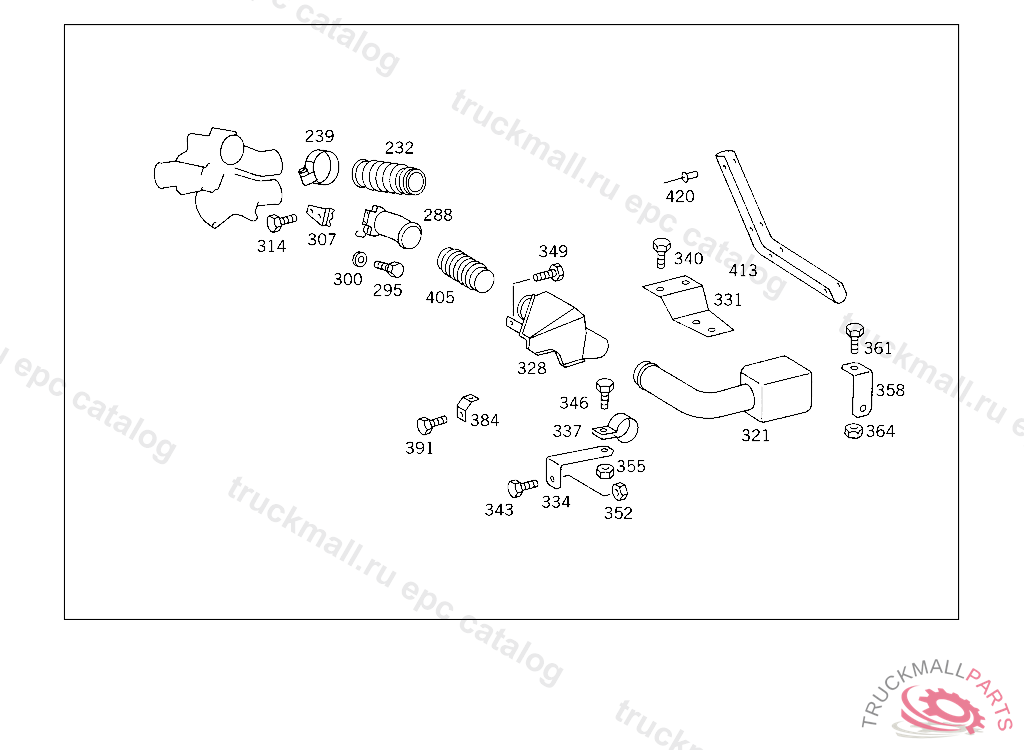

232
HOSE FROM MUFFLER TO ENGINE
239
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
288
AIR INTAKE PIPE
295
SCREW PIPE CLAMP
295
SCREW , Replaced By: N304017008021
300
WASHER , Replaced By: N000125008443
300
WASHER EXHAUST MUFFLER TO STRAP
307
ANGLE AIR INTAKE PIPE
314
SCREW , Replaced By: N304017006018
314
SCREW COVER PLATE TO COVER PLATE M 6 X 12
321
AIR INTAKE PIPE
328
AIR INTAKE PIPE
331
BRACKET AIR INTAKE PIPE,5 551664
334
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
334
BRACKET , Replaced By: A3524920141
337
CLAMP , Replaced By: N071555090502
337
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
340
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
340
SCREW , Replaced By: A0009903204
343
SCREW BRACKET TO FRAME SIDE MEMBER
346
SCREW REAR EXHAUST PIPE TO MUFFLER
349
SCREW PIPE CLAMP
349
SCREW , Replaced By: N304017008021
352
NUT , Replaced By: N913004008001
352
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
355
NUT , Replaced By: N910113010000
355
NUT STRAP TO BRACKET
358
BRACKET FUEL LINES TO TRANSMISSION
358
BRACKET , Replaced By: A6205240340
361
SCREW , Replaced By: N304017008039
361
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
364
NUT , Replaced By: N913004008001
364
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
384
BRACKET AIR INTAKE PIPE, NOT USED
391
SCREW BRACKET TO SIDE MEMBER
391
SCREW , Replaced By: N304017008040
405
HOSE AIR INTAKE PIPE TO AIR INTAKE PIPE
413
COVERING CAB REAR PANEL
420
RIVET CAB REAR PANEL
999
PLASTIC PIPE RISING PIPE 4X6 MM
999
AIR CLEANER (PAPER AIR CLEANER) MANN & HUMMEL
999
AIR CLEANER ,5 586474, Replaced By: A0160948402, +001A6795280040, +002N000125013008, +002N000961012151, +002N913004012008
999
AIR CLEANERMANN & HUMMEL
999
MUFFLER (INTAKE MUFFLER)
999
SUPPORT ,5 4625735 505597, Replaced By: A6735201833, +003N000933010128
999
SUPPORT (PAPER AIR CLEANER)
999
SUPPORT AIR INTAKE
999
HOSE ,5 451580
999
HOSE , Replaced By: A6735281282, +001A0019880735, +002A0019978390
999
HOSE FROM SUPPORT TO ENGINE
999
WASHER CONSOLE TO SIDE MEMBER
999
AIR INTAKE PIPE
999
HOSE TO OIL BATH AIR CLEANER
999
BRACKET AIR INTAKE PIPE
999
SCREW BRACKET TO BELL HOUSING
999
SCREW LEAF SPRING TO STRUT
999
SCREW , Replaced By: N308676012016
999
HEXAGON HEAD BOLT. SCREW REINFORCEMENT TO SIDE MEMBER M 12X55
