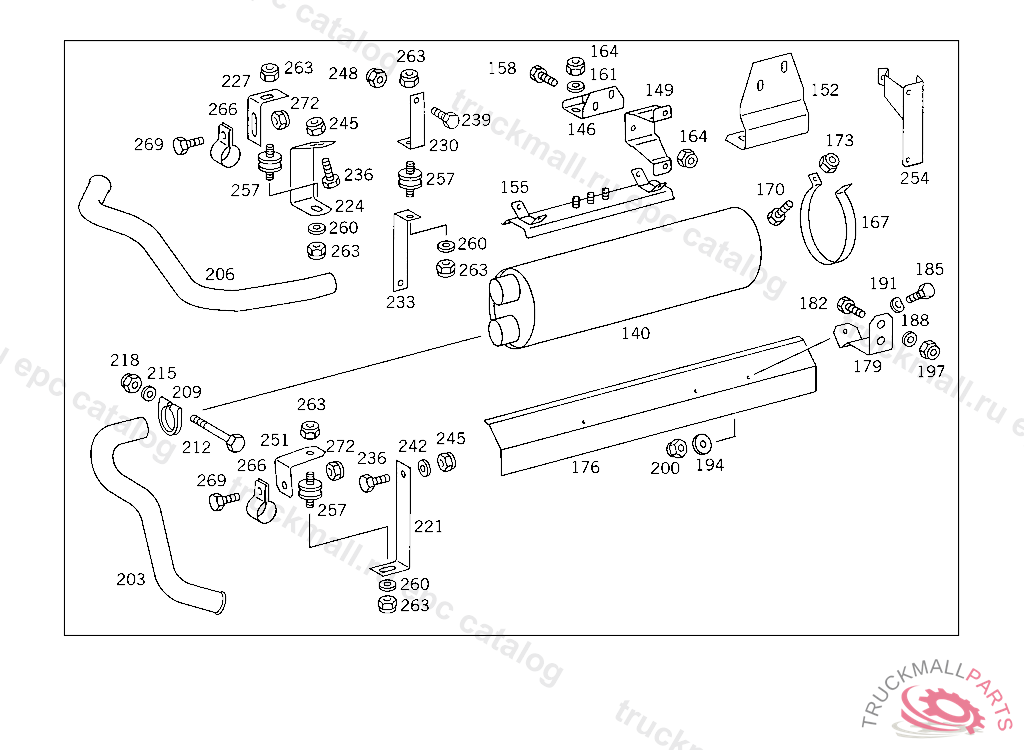

Поз.
Артикул
Описание
140
EXHAUST MUFFLER
146
BRACKET EXHAUST MUFFLER TO BRACKET
146
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. K 139807, Replaced By: A6744924841
149
BRACKET EXHAUST MUFFLER
155
SUPPORT EXHAUST MUFFLER TO BRACKET
158
SCREW BRACKET TO SIDE MEMBER
158
SCREW , Replaced By: N304017010002
161
WASHER , Replaced By: N007349010007
161
WASHER STRUT TO CROSS MEMBER
164
NUT STRAP TO BRACKET
164
NUT , Replaced By: N910113010000
167
BRACKET , Replaced By: A6744914541
167
STRAP EXHAUST MUFFLER TO SIDE MEMBER
170
SCREW BRACKET TO CONSOLE
170
SCREW , Replaced By: N304017010043
173
NUT , Replaced By: N910113010000
173
NUT STRAP TO BRACKET
203
REAR EXHAUST PIPE (TAIL PIPE)
206
REAR EXHAUST PIPE (TAIL PIPE),K 079963
209
CLAMP BRACKET TO EXHAUST PIPE
212
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
212
SCREW , Replaced By: N304014008021
215
WASHER , Replaced By: N000125008443
215
WASHER EXHAUST MUFFLER TO STRAP
218
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
218
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
218
NUT , Replaced By: N913004008001
221
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
224
BRACKET BRACKET TO FILTER BRACKET
227
BRACKET FUEL LINES TO TRANSMISSION
236
SCREW PIPE CLAMP
236
SCREW , Replaced By: N304017008021
242
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
245
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
245
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
245
NUT , Replaced By: N913004008001
251
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
257
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
260
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
260
WASHER , Replaced By: N006902011100
260
WASHER , Replaced By: N006902011102
263
NUT , Replaced By: N910113010000
263
NUT STRAP TO BRACKET
266
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
266
CLAMP , Replaced By: N071555090502
269
SCREW , Replaced By: N304017010002
269
SCREW BRACKET TO SIDE MEMBER
272
NUT STRAP TO BRACKET
272
NUT , Replaced By: N910113010000
999
SCREW PROTECTIVE PLATE TO CLAMP
999
SCREW COVERING TO SUPPORT
999
PROTECTIVE PLATE , NOT USED
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 227991, Replaced By: A6764902640
999
BRACKET HEAT SHIELD
999
WASHER HEAT SHIELD TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
