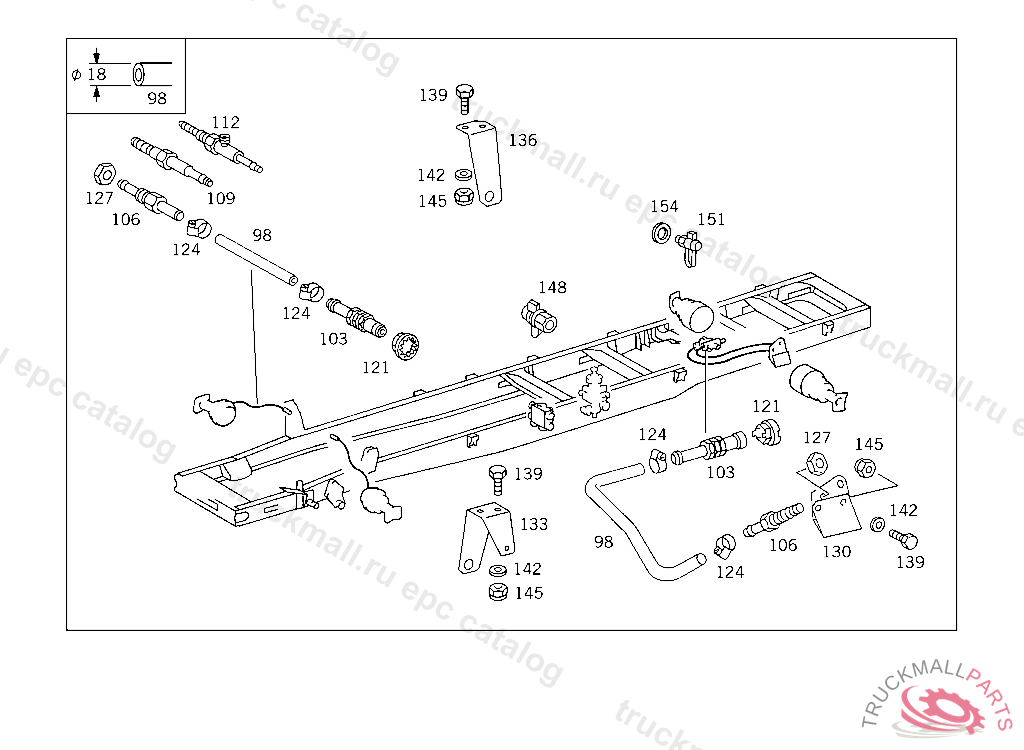

Поз.
Артикул
Описание
98
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
103
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
106
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
109
CONNECTOR COMPRESSED AIR LINE THRU RIGHT SIDE MEMBER TO M 22
121
LOCK REAR AXLE BRAKE HOSE,K 181360
124
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
124
CLAMP HOSE TO FITTING AND TO OIL TANK
127
NUT BRACKET TO SIDE MEMBER
130
BRACKET COMPRESSED AIR LINE
139
SCREW END PIECE TO EXHAUST PIPE M 10X25
142
WASHER , Replaced By: N006902011102
142
WASHER , Replaced By: N006902011100
142
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
145
NUT STRAP TO BRACKET
145
NUT , Replaced By: N910113010000
148
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
148
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
148
TEST CONNECTION
148
TEST CONNECTION
148
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
148
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
148
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
148
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
151
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
151
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
154
SEAL RING LINE CONNECTION
999
CLAMP BRAKE HOSE
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
GROMMET LINE THRU LEFT SIDE MEMBER
999
HOSE COMPRESSED AIR GUIDE, REAR AXLE. 220 MM
999
CLAMP BRAKE HOSE
999
EDGE GUARD SECTION , Replaced By: A0019872272
999
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
999
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
