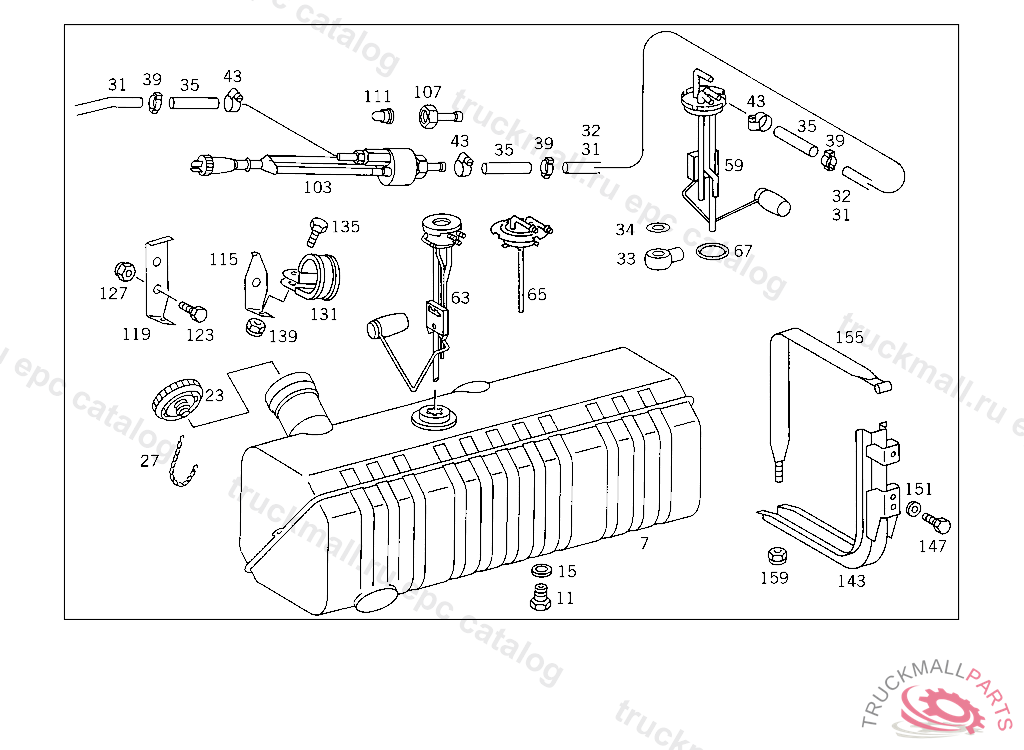

Поз.
Артикул
Описание
7
FUEL TANK105L
7
FUEL TANK , Replaced By: A6734701001
11
SCREW PLUG , Replaced By: N007604014110
11
SCREW PLUG FUEL TANK
15
SEALING RING. SEAL RING FUEL TANK
23
FILLER CAP , Replaced By: A0004700305
23
FILLER CAP
23
FILLER CAP , Replaced By: A0004700305
23
FILLER CAP , Replaced By: A0004700305
27
CHAIN FILLER CAP
31
HOSE FUEL LINE, ORDER BY THE METER
31
PLASTIC PIPE FUEL SYSTEM 6X2 MM, ORDER BY THE METER
31
PLASTIC PIPE FUEL SYSTEM 6X2 MM, ORDER BY THE METER
32
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6744700026
33
BANJO UNION HEATING CONNECTION,K 169122
34
SEAL RING FUEL LINE TO FEED PUMP
35
INTERMEDIATE PIECE FUEL LINE,K 223528
39
LOOM TIE LINE MOUNTING
43
CLAMP LINE MOUNTING
43
CLAMP LINE MOUNTING
43
CLAMP LINE MOUNTING
59
SENDER UNIT FUEL GAUGE
59
SENDER UNIT FUEL GAUGE
59
SENDER UNIT FUEL GAUGE
63
SENDER UNIT , Replaced By: A0085424017
63
SENDER UNIT , Replaced By: A0085428517
63
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
63
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
63
SENDER UNIT FUEL GAUGE
65
COVERING FUEL TANK
67
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
103
AUXILIARY PUMP FUEL-OIL,K 181478, Replaced By: A0004706694
103
AUXILIARY PUMP , Replaced By: A0004704594, +002A0025450628, +001A0055454528, +001A0019906440, +001A0009904954, +001A0029970781
103
AUXILIARY PUMP FUEL-OIL PUMP,K 181478
107
FITTING
111
STRAINER
115
BRACKET FUEL-OIL PUMP,5 325253
119
BRACKET FUEL-OIL PUMP,5 325254
119
BRACKET FUEL-OIL PUMP,5 325254
123
SCREW END PIECE TO EXHAUST PIPE M 10X25
127
NUT , Replaced By: N910113010000
127
NUT STRAP TO BRACKET
131
CLAMP PUMP TO BRACKET
135
SCREW , Replaced By: N304017006016
135
SCREW PUMP TO BRACKET
139
NUT PUMP TO BRACKET
139
NUT , Replaced By: N913004006001
143
SUPPORT FRONT AND REAR
147
SCREW CONSOLE TO SIDE MEMBER
151
WASHER BRACKET TO FRAME
155
STRAP , Replaced By: A6734300040
159
NUT STRAP TO BRACKET
159
NUT , Replaced By: N910113010000
999
SENDER UNIT FUEL GAUGE,K 169122
999
SENDER UNIT FUEL GAUGE,5 218304K 169122
999
SENDER UNIT FUEL GAUGE
999
SENDER UNIT FUEL GAUGE,5 218304
999
BRACKET FUEL TANK, FOR USE WITH SHORT MERCEDES-BENZ CAB5 3506525 495522
999
RISING PIPE FUEL TANK
999
EDGE GUARD SECTION
999
REINFORCEMENT
999
SUPPORT , Replaced By: A6674701142
999
SUPPORT , Replaced By: A6674701042
999
REINFORCEMENT FUEL TANK, FOR USE WITH SHORT MERCEDES-BENZ CAB5 350652
999
HOSE PLASTIC PIPE,K 223529
999
BRACKET , Replaced By: A3044760335
999
BRACKET , Replaced By: A6205244040
999
WASHER , Replaced By: A0039902940
999
SENDER UNIT FUEL GAUGE
999
CLIP TAIL LAMP CABLE HARNESS TO REAR LID
999
CONNECTOR
999
CLIP FUEL LINE TO CAB CONSOLE
