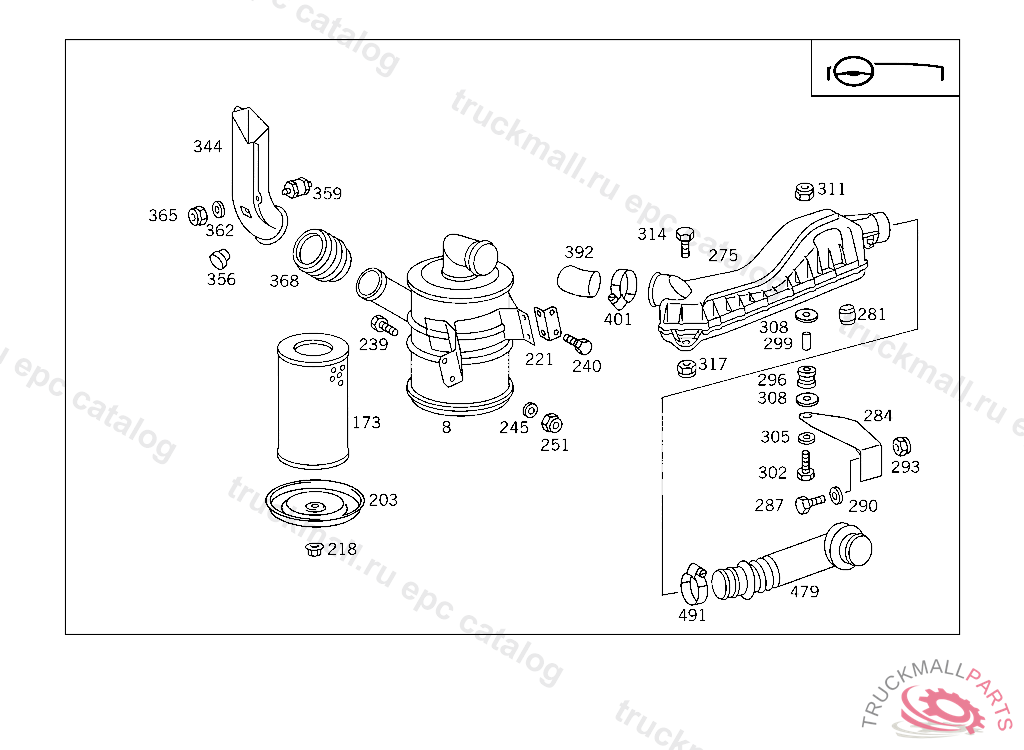

Поз.
Артикул
Описание
8
AIR CLEANERMANN & HUMMEL,5 586475
173
FILTER ELEMENT AIR CLEANER
203
COVER LOWER PART
218
NUT
221
BRACKET AT SIDE MEMBER
239
SCREW CONSOLE TO FRAME
239
SCREW , Replaced By: N308676016020
240
SCREW CONSOLE TO SIDE MEMBER
245
WASHER BRACKET TO FRAME
245
WASHER , Replaced By: N000125017016
251
NUT COMBINATION CYLINDER TO BEARING BRACKET
251
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
275
MUFFLER (INTAKE MUFFLER)
281
RUBBER MOUNTING BRACKET TO BEARING BRACKET
284
BRACKET INTAKE MUFFLER
287
SCREW PIPE CLAMP
287
SCREW , Replaced By: N304017008021
290
WASHER EXHAUST MUFFLER TO STRAP
290
WASHER , Replaced By: N000125008443
293
NUT , Replaced By: N913004008001
296
RUBBER MOUNTING INTAKE MUFFLER TO BRACKET
299
SPACER TUBE PUMP TO FRAME SIDE MEMBER 12X21 MM
302
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
302
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
302
SCREW BRACKET TO SIDE MEMBER
302
SCREW , Replaced By: N304017008040
305
WASHER EXHAUST MUFFLER TO STRAP
305
WASHER , Replaced By: N000125008443
308
RETAINER INTAKE MUFFLER TO BRACKET
311
NUT , Replaced By: N913004008001
314
SCREW EXHAUST PIPE TO BRACKET
317
NUT STRAP TO BRACKET
317
NUT , Replaced By: N910113010000
344
AIR INTAKE PIPE
356
PLUG AIR INTAKE PIPE
359
BUFFER REFRIGERANT LINE TO CAB
362
WASHER BRACKET TO CAB REAR PANEL
362
WASHER BRACKET TO LEFT SIDE MEMBER
362
WASHER , Replaced By: N009021008213
365
NUT , Replaced By: N913004008001
368
BOOT AIR INTAKE
392
HOSE TO OIL BATH AIR CLEANER
401
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE 100-120X13 MM
401
CLAMP , Replaced By: A0059970690
479
HOSE FROM MUFFLER TO ENGINE
491
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
491
CLAMP , Replaced By: A0059972990
491
CLAMP , Replaced By: N000000000675
