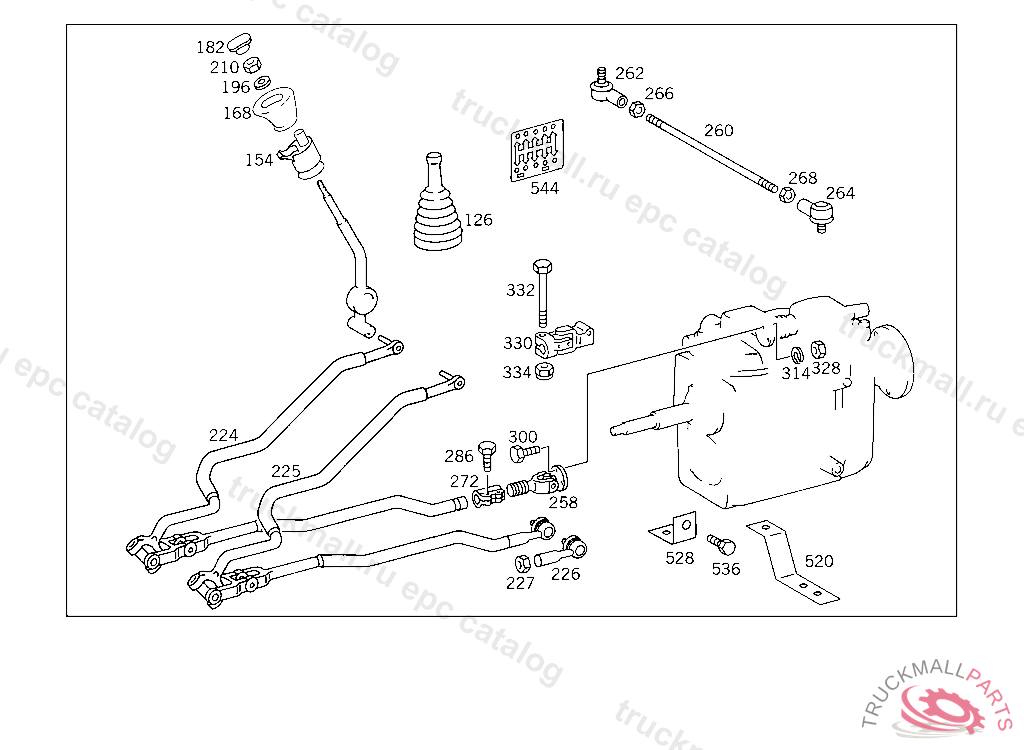

Поз.
Артикул
Описание
126
BOOT SHIFTING LEVER
126
BOOT SHIFTING ROD
154
VALVE , Replaced By: A0012602457
154
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 403697, Replaced By: A0012605357
154
VALVE SHIFT LEVER HERION
154
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 528951, Replaced By: A0012606357
154
VALVE GEARSHIFT LEVER LOWER PART WABCO
154
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 403697, Replaced By: A0012602457
168
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
168
HANDLE (SHIFT LEVER HANDLE)
182
COVER 6-SPEED,SHIFT LEVER KNOB
182
COVER FIVE-SPEED, SHIFT LEVER KNOB
182
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
182
COVER 6-SPEED,SHIFT LEVER KNOB
182
COVER SHIFT LEVER KNOB,K 189883
182
COVER SHIFT LEVER KNOB,K 189883
196
WASHER RADIATOR TO RUBBER MOUNTING
196
WASHER , Replaced By: N000125010532
210
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
210
NUT , Replaced By: N308673010000
210
NUT GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER
224
SHIFTING ROD
224
SHIFTING ROD
224
SHIFTING ROD ,K 189882
224
SHIFTING ROD ,K 189882
224
SHIFTING ROD
224
SHIFTING ROD ,K 010023
224
SHIFTING ROD ,K 010023
224
SHIFTING ROD ,K 010024
224
SHIFTING ROD
224
SHIFTING ROD
224
SHIFTING ROD
224
SHIFTING ROD
224
SHIFTING ROD ,K 010023
224
SHIFTING ROD ,K 010023
224
SHIFTING ROD ,K 010024
224
SHIFTING ROD
224
SHIFTING ROD ,K 010024
224
SHIFTING ROD
224
SHIFTING ROD ,K 189883
224
SHIFTING ROD
225
SHIFTING ROD
226
ARTICULATION PIECE
227
NUT RELEASE BEARING LUBRICATION
258
JOINT SHIFTING ROD TO TRANSMISSION
258
JOINT SHIFTING ROD TO TRANSMISSION
260
PULL ROD SHIFTING TRANSFER, TO BE ADAPTED DURING ASSEMBLYK 142858
260
PULL ROD SHIFTING TUBE
262
ARTICULATION PIECE , Replaced By: A0009965545
262
CONSTANT VELOCITY JOINT R.H. THREAD
262
ARTICULATION PIECE R.H. THREAD, Replaced By: A0019963045
264
ARTICULATION PIECE , Replaced By: A0009965645
264
CONSTANT VELOCITY JOINT L.H. THREAD
264
ARTICULATION PIECE L.H. THREAD, Replaced By: A0019963145
266
NUT L.H. THREAD
266
NUT L.H. THREAD
268
NUT BRACKET TO FRAME
268
NUT , Replaced By: N304035012002
268
NUT
272
CLAMPING PIECE SHIFTING ROD TO TRANSMISSION
286
SCREW CONNECTOR TO REAR SHIFTING ROD
286
SCREW , Replaced By: N304017010047
300
SCREW , Replaced By: N304017008027
300
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
300
SCREW SHIFTING ROD TO TRANSMISSION
314
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
314
LOCK WASHER RAIL TO BATTERY SUPPORT
328
NUT
328
NUT
330
JOINT REAR SHIFTING ROD
332
SCREW SHIFTING ROD TO JOINT
334
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
520
BRACKET LINE MOUNTING
528
ANGLE LINE MOUNTING
536
SCREW COVER PLATE TO COVER PLATE M 6 X 10
536
SCREW , Replaced By: N304017006034
544
GUMMED LABEL NINE-SPEED,ASHTRAY,5 032516
999
DISTRIBUTOR HOSE WIDTH, 6 MM
999
PLASTIC PIPE RISING PIPE 4X6 MM
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ARTICULATION PIECE R.H. THREAD,K 131522
999
ARTICULATION PIECE ,K 142858
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
999
LOOM TIE LINE MOUNTING 280 MM
999
FITTING (PARTS KIT),LINE RUPTURE
999
PLASTIC TUBE2X4MM, ORDER BY THE METER
999
SEAL RING CONNECTOR 11.8X2 MM
999
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
999
WASHER BRACKET TO SIDE MEMBER
999
BUSHING SHIFT LEVER BEARING TO CAB FLOOR
999
COVER
999
BUSHING COMPRESSED AIR LINE THRU CAB FLOOR,K040603
999
SHIFTING ROD BOTTOM
999
BRACKET LINE MOUNTING
999
SHIFTING ROD BOTTOM
999
SHIFTING ROD , Replaced By: A6732604933
999
BRACKET LINE MOUNTING
999
PLUG TO PLUG THE FREE CONNECTIONS,K 063043
999
COVER WITH GEAR INDICATOR
999
SCREW VALVE TO BRACKET
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
