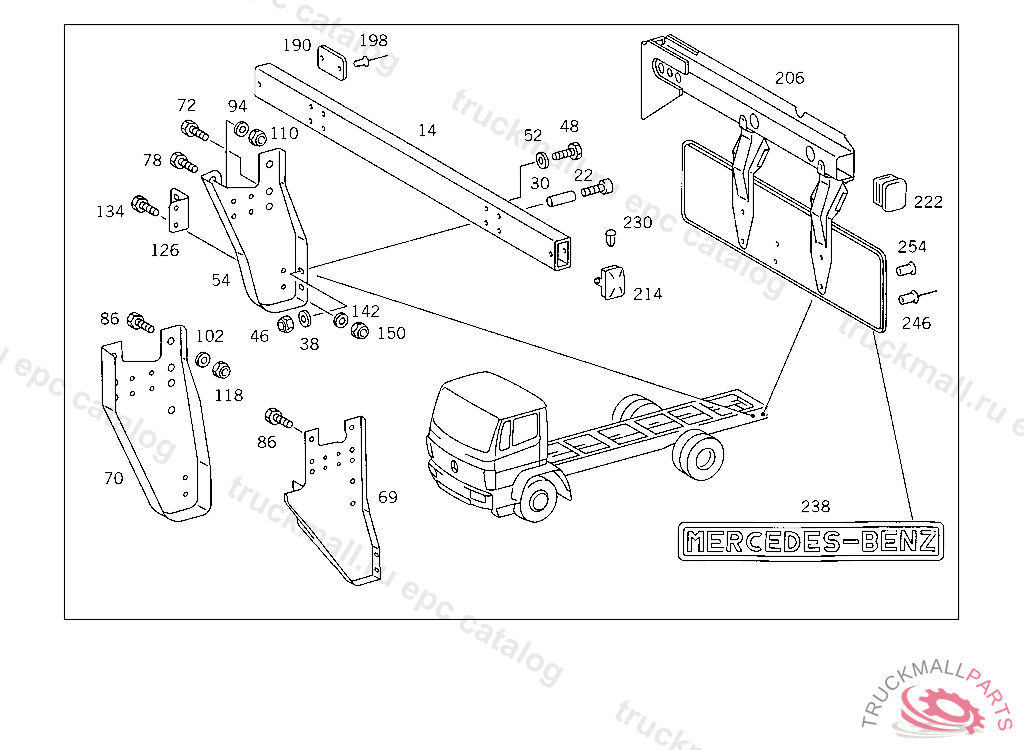

Поз.
Артикул
Описание
14
BUMPER
14
BUMPER
14
BUMPER
22
SCREW , Replaced By: N000912010225
22
CAP BOLT. SCREW BUMPER TO BRACKET,5 398606
30
SPACER TUBE BUMPER TO BRACKET,5 398606
38
WASHER , Replaced By: N000125010532
38
WASHER RADIATOR TO RUBBER MOUNTING
46
NUT , Replaced By: N910113010000
46
NUT STRAP TO BRACKET
48
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
48
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
52
WASHER , Replaced By: N007349010007
52
WASHER STRUT TO CROSS MEMBER
54
BRACKET , Replaced By: A6735252839
54
BRACKET BUMPER,LEFT
54
BRACKET , Replaced By: A6735252939
54
BRACKET BUMPER,RIGHT
54
BRACKET , Replaced By: A6735253039
54
BRACKET BUMPER,LEFT
54
BRACKET , Replaced By: A6735253139
54
BRACKET BUMPER,RIGHT
54
BRACKET BUMPER,LEFT
54
BRACKET BUMPER,RIGHT
69
SUPPORT BUMPER,LEFT
69
SUPPORT BUMPER,RIGHT
69
SUPPORT BUMPER,LEFT
69
SUPPORT BUMPER,RIGHT
69
BRACKET LEFT TAIL LAMP,K 062690
69
SUPPORT BUMPER,LEFT, NOT USED
69
SUPPORT BUMPER,RIGHT, NOT USED
70
BRACKET BUMPER,LEFT
70
BRACKET BUMPER,RIGHT
70
BRACKET BUMPER,LEFT
70
BRACKET BUMPER,RIGHT
72
SCREW BRACKET TO SIDE MEMBER M 10X30
72
SCREW BRACKET TO SIDE MEMBER M 14X33
78
SCREW END PIECE TO EXHAUST PIPE M 10X25
78
SCREW REAR EXHAUST PIPE TO MUFFLER
78
SCREW BRACKET TO SIDE MEMBER M 10X30
78
SCREW BRACKET TO SIDE MEMBER M 14X33
78
SCREW , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 391899, Replaced By: A6739900614
78
SCREW , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 391899, Replaced By: A6739900514
78
SCREW END PIECE TO EXHAUST PIPE M 10X25
78
SCREW BRACKET TO SIDE MEMBER M 10X30
86
SCREW BRACKET TO SIDE MEMBER
86
SCREW BRACKET TO SIDE MEMBER
86
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
86
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
86
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
86
SCREW , Replaced By: N308676014020
86
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
86
SCREW BRACKET TO SIDE MEMBER
86
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
86
SCREW BRACKET TO SIDE MEMBER
86
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
94
WASHER , Replaced By: N000125010532
94
WASHER RADIATOR TO RUBBER MOUNTING
102
WASHER , Replaced By: N000125015019
102
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
102
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
110
NUT , Replaced By: N910113010000
110
NUT STRAP TO BRACKET
110
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
110
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
110
ANGLE RIGHT
110
ANGLE FRONT LEFT
118
NUT , Replaced By: N910113014001
118
NUT BRACKET TO SIDE MEMBER
118
NUT BRACKET TO SIDE MEMBER
118
NUT , Replaced By: N910113014000
118
NUT STEERING SUPPORT TO FRAME
118
NUT BRACKET TO SIDE MEMBER
118
NUT STEERING SUPPORT TO FRAME
126
ANGLE
126
ANGLE
126
ANGLE , Replaced By: A6735250341
134
SCREW END PIECE TO EXHAUST PIPE M 10X25
134
SCREW , Replaced By: N304017010002
134
SCREW BRACKET TO SIDE MEMBER
134
SCREW BRACKET TO SIDE MEMBER
134
SCREW BRACKET TO SIDE MEMBER
134
SCREW END PIECE TO EXHAUST PIPE M 10X25
142
WASHER , Replaced By: N000125010532
142
WASHER RADIATOR TO RUBBER MOUNTING
142
WASHER RADIATOR TO RUBBER MOUNTING
150
NUT , Replaced By: N910113010000
150
NUT STRAP TO BRACKET
150
NUT STRAP TO BRACKET
190
REFLECTOR
190
REFLECTOR
198
RIVET REFLECTOR TO BUMPER,K 062690
206
BRACKET LEFT TAIL LAMP,K 062690
206
BRACKET RIGHT TAIL LAMP,K 062690
206
BRACKET RIGHT TAIL LAMP,K 062690
206
BRACKET LEFT TAIL LAMP,K 062690
214
CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO., Replaced By: A6735250238, +002A0009903792
214
CAP
214
CAP
222
CAP , Replaced By: A0019973586
222
PLUG BRACKET,K 062690
222
PLUG BRACKET,K 062690
230
EXPANSION RIVET UNDERRUN PROTECTION CROSS MEMBER
230
EXPANSION RIVET UNDERRUN PROTECTION CROSS MEMBER
238
NAME PLATE
246
RIVET NAME PLATE TO TAIL LAMP BRACKET
254
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
999
ANGLE
999
BRACKET TAIL LAMP BRACKET
999
BRACKET BUMPER,RIGHT
999
BRACKET
999
BRACKET BUMPER,LEFT
999
STAY RIGHT
999
STAY LEFT
999
STAY RIGHT
999
STAY LEFT
999
ANGLE
999
STIFFENING
