Поз.
Артикул
Описание

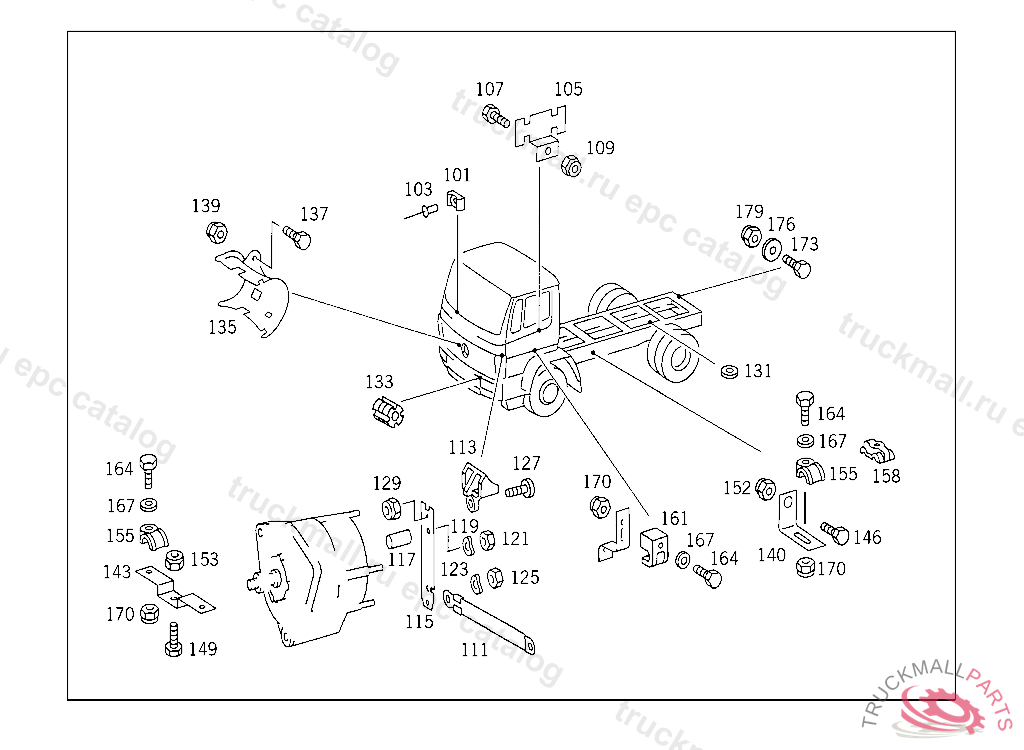

101
BRACKET FRAME MOUNTED CABLE HARNESS TO CAB
103
RIVET BRACKET TO CAB
105
BRACKET BREATHER LINE TO SIDE MEMBER
107
SCREW BRACKET TO CROSS CONNECTION STRUT
107
SCREW , Replaced By: N304017008034
109
NUT , Replaced By: N913004008001
111
GROUND STRAP HEAT RESISTANT, FROM ALTERNATOR TO FRAME SIDE MEMBER GROUND
113
BRACKET CABLE HARNESS MOUNTING
113
BRACKET , Replaced By: A0005462243
115
BRACKET ALTERNATOR BRANCH-OFF TO ALTERNATOR SA 24 439/03/04
117
SPACER TUBE ALTERNATOR BRANCH-OFF TO ALTERNATOR SA 24 439/03/04
119
SPRING WASHER ALTERNATOR CONNECTION D+
121
NUT TACHOGRAPH TO BRACKET
123
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
123
SPRING WASHER , Replaced By: N000137008212
123
SPRING WASHER , Replaced By: N000137008204
123
SPRING WASHER LICENSE PLATE TO BRACKET
123
SPRING WASHER ALTERNATOR CONNECTION D+
123
SPRING WASHER HEATER PLUG CABLE HARNESS
123
SPRING WASHER ELECTRIC CABLE TO ALTERNATOR
125
NUT
125
NUT BALL PIVOT TO LEVER
125
NUT TACHOGRAPH TO BRACKET
125
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
127
SCREW CONTROL UNIT TO CAB
129
NUT TWO-WAY VALVE TO BRACKET
131
WASHER EXHAUST MUFFLER TO STRAP
131
WASHER , Replaced By: N000125008443
133
BRACKET LINE MOUNTING
133
BRACKET LINE MOUNTING
135
BRACKET CABLE HARNESS
137
SCREW END PIECE TO EXHAUST PIPE M 10X25
139
NUT STRAP TO BRACKET
139
NUT , Replaced By: N910113010000
140
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
140
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
140
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
143
BRACKET BATTERY CABLE TO CROSS MEMBER
146
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
146
SCREW , Replaced By: N308676012012
146
SCREW BRACKET TO SIDE MEMBER
149
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
149
SCREW , Replaced By: N304017008027
152
NUT SUPPORT TO SIDE MEMBER
152
NUT STRAP TO BRACKET
152
NUT , Replaced By: N910113010000
153
NUT STRAP TO BRACKET
155
CLAMP CABLE HARNESS TO BRACKET
155
CLAMP CABLE HARNESS TO BRACKET
155
CLAMP BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
158
CLAMP , Replaced By: A0005462675
161
CLAMP BATTERY CABLE MOUNTING,5 143360
164
SCREW , Replaced By: N304017006026
164
SCREW , Replaced By: N304017006026
167
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
167
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
170
NUT PUMP TO BRACKET
170
NUT PUMP TO BRACKET
170
NUT , Replaced By: N913004006001
173
SCREW PIPE CLAMP
173
SCREW , Replaced By: N304017008021
176
WASHER BRACKET TO LEFT SIDE MEMBER
176
WASHER , Replaced By: N009021008213
179
NUT , Replaced By: N913004008001
999
WASHER BRACKET TO LEFT SIDE MEMBER
