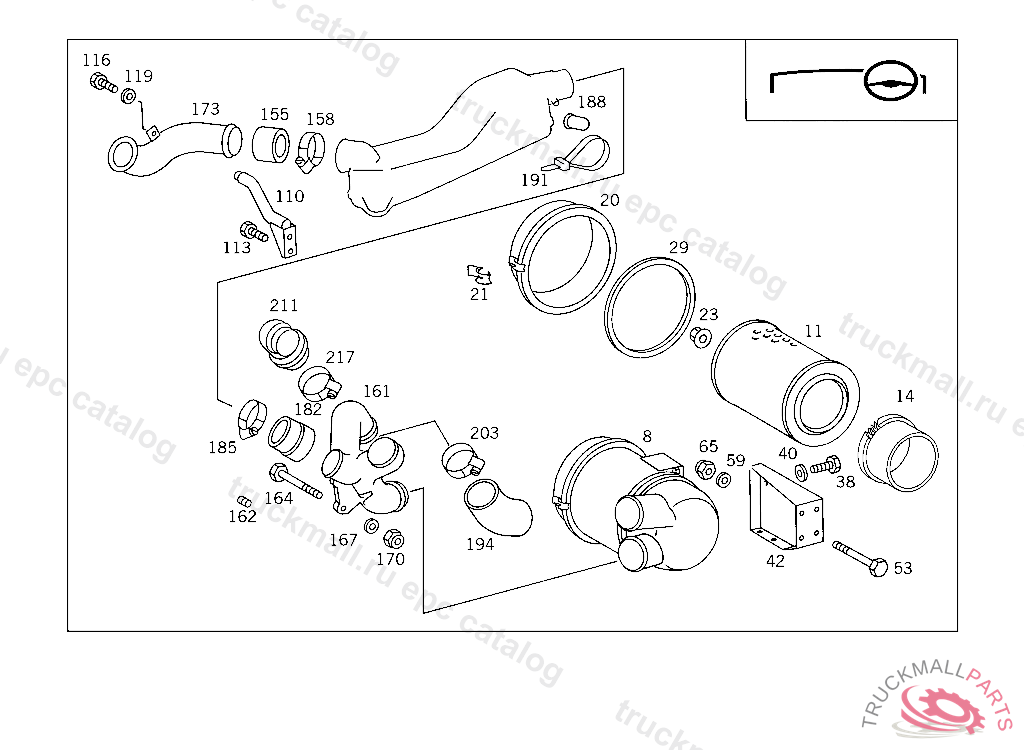

Поз.
Артикул
Описание
8
AIR CLEANER
11
FILTER ELEMENT AIR CLEANER
11
FILTER ELEMENT
14
AIR BAFFLE AIR CLEANER
20
FILTER BOWL LOWER PART
21
FASTENER
23
NUT
29
GASKET AIR CLEANER BOWL
38
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
40
WASHER RADIATOR TO RUBBER MOUNTING
40
WASHER , Replaced By: N000125010532
42
SUPPORT
53
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
59
WASHER
65
NUT SUPPORT TO SIDE MEMBER
155
HOSE FROM AIR CLEANER TO MUFFLER, ORDER BY THE METER
158
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE 100-120X13 MM
158
CLAMP , Replaced By: A0059970690
158
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
158
CLAMP , Replaced By: N000000000678
158
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
161
SUPPORT (PAPER AIR CLEANER)
162
THREADED INSERT
162
THREADED INSERT ,5 462573
162
THREADED INSERT
164
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
164
SCREW , Replaced By: N308676012011
164
SCREW CONSOLE TO SIDE MEMBER
167
WASHER BRACKET TO FRAME
170
NUT SUPPORT TO SIDE MEMBER
173
AIR INTAKE PIPE
182
HOSE FROM MUFFLER TO SUPPORT
185
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
188
CAP INTAKE MUFFLER FITTING
191
LOOM TIE LINE MOUNTING 280 MM
194
HOSE FROM SUPPORT TO PAPER AIR CLEANER
203
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
203
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
203
CLAMP , Replaced By: A0059971490
211
HOSE FROM MUFFLER TO ENGINE
217
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
999
PIPE SOCKET
999
CLAMP
999
HOSE TO OIL BATH AIR CLEANER
