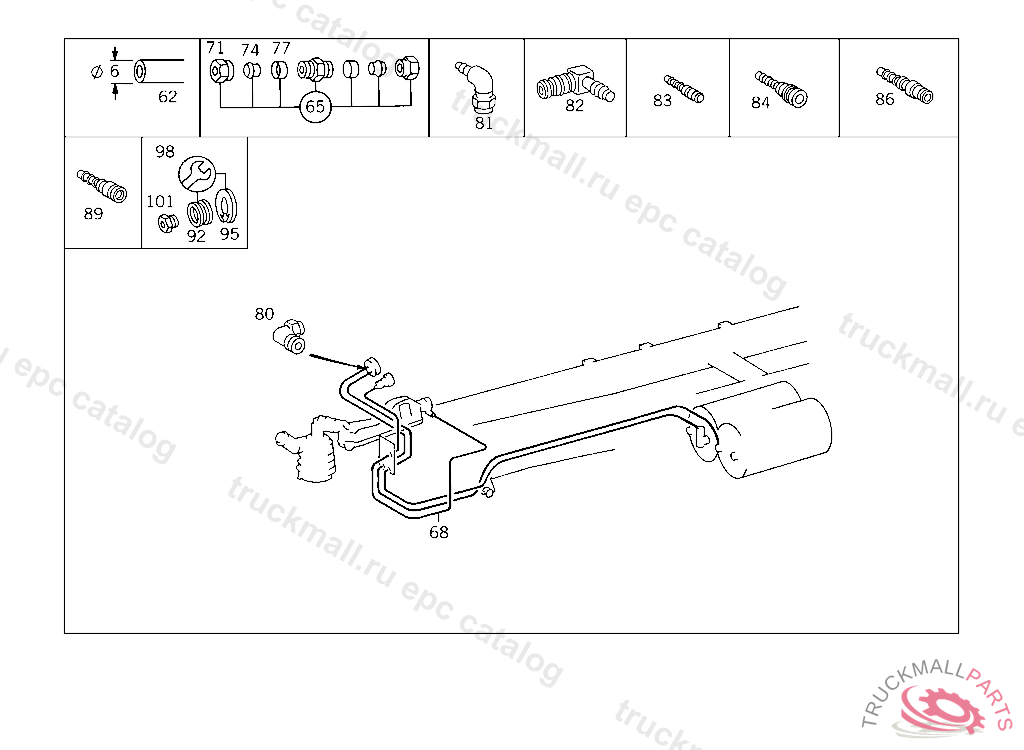

Поз.
Артикул
Описание
62
PLASTIC PIPE RISING PIPE 4X6 MM
62
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
65
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
68
HOSE LEAK LINE, ORDER BY THE METER
71
UNION NUT
74
SEAL CONE
74
GLAND , Replaced By: A0019901667
77
SLEEVE LEAK LINE
80
FITTING FROM PUMP TO CYLINDER
80
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
81
ELBOW FITTING
83
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
83
CONNECTOR , Replaced By: A0029905378
84
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
86
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
86
CONNECTOR DISTRIBUTOR TO CAB
89
CONNECTOR HOSE WIDTH, / I.D., 6 MM
92
LOCK RING LINE CONNECTION
92
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
92
SEAL RING , Replaced By: A0009940747
95
LOCK , Replaced By: A0009945448
95
LOCK LINE CONNECTION
95
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
98
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
98
REPAIR KIT , Replaced By: A0309971748
98
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
101
SCREW. UNION SCREW LINE CONNECTION
101
SCREW. UNION SCREW LINE CONNECTION
101
SCREW. UNION SCREW , Replaced By: A0009973734
