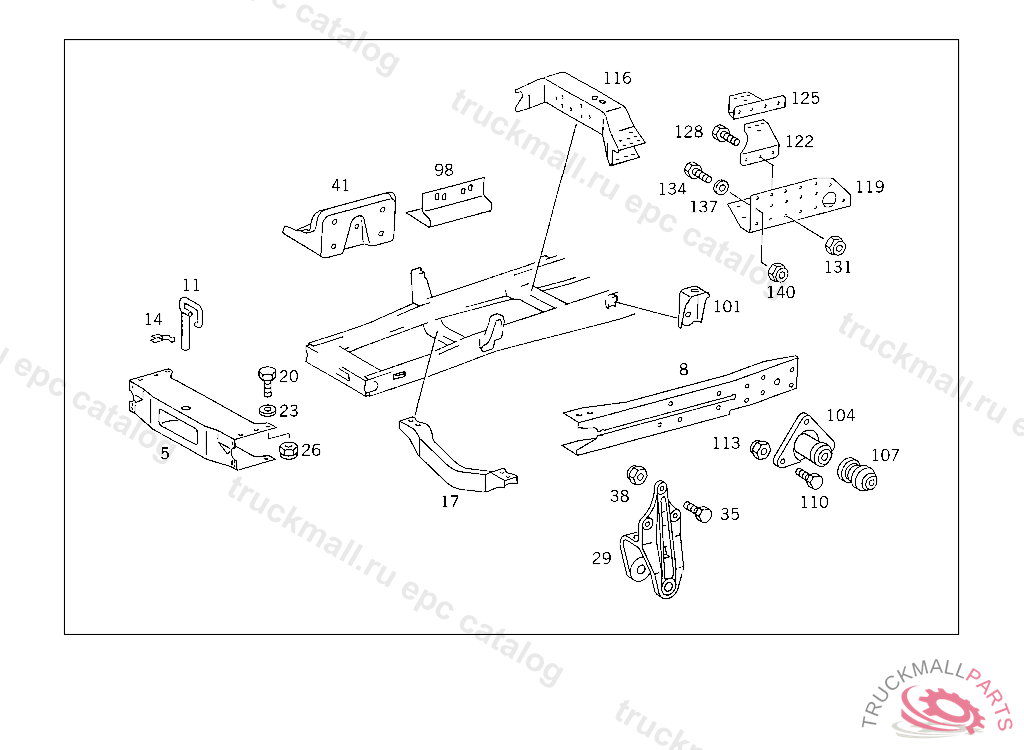

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT
8
GUSSET PLATE FRONT RIGHT, TO BE ADAPTED DURING ASSEMBLY
8
GUSSET PLATE FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
11
COUPLING PIN FOR COUPLING MOUTH
14
U-BOLT COUPLING PIN
17
ENGINE CROSS MEMBER FRONT
29
FRONT SPRING BRACKET FRONT SPRING FRONT BRACKET
35
SCREWM 16X17X24X44
35
SCREW PLATE TO SIDE MEMBER
38
NUT STEERING SUPPORT TO FRAME
38
NUT CONSOLE TO SUPPORT
38
NUT , Replaced By: N910113016001
38
NUT , Replaced By: N910113014000
41
SUPPORT ENGINE FRONT MOUNTING
98
ANGLE AXLE STOP
101
CONSOLE BODY MOUNTING
104
REAR SUBFRAME (FRONT SPRING BRACKET),REAR, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
104
REAR SUBFRAME , Replaced By: A6733200270
107
BUSHING
110
SCREW , Replaced By: N308676012040
110
HEXAGON HEAD BOLT. SCREW BRACKET TO REAR AXLE
113
NUT , Replaced By: N910113012003
113
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
116
CROSS MEMBER TRANSMISSION,5 519079
119
REINFORCEMENT LEFT
119
REINFORCEMENT RIGHT
122
REINFORCEMENT RIGHT
122
REINFORCEMENT LEFT
125
ANGLE LEFT
128
SCREW STRUT TO CROSS MEMBER M 10X25
128
SCREW , Replaced By: N304017010040
128
SCREW , Replaced By: N304017010002
128
SCREW BRACKET TO SIDE MEMBER
128
SCREW END PIECE TO EXHAUST PIPE M 10X25
131
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
134
SCREW , Replaced By: N308676012026
134
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
137
WASHER BRACKET TO FRAME
140
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
140
NUT , Replaced By: N910113012003
