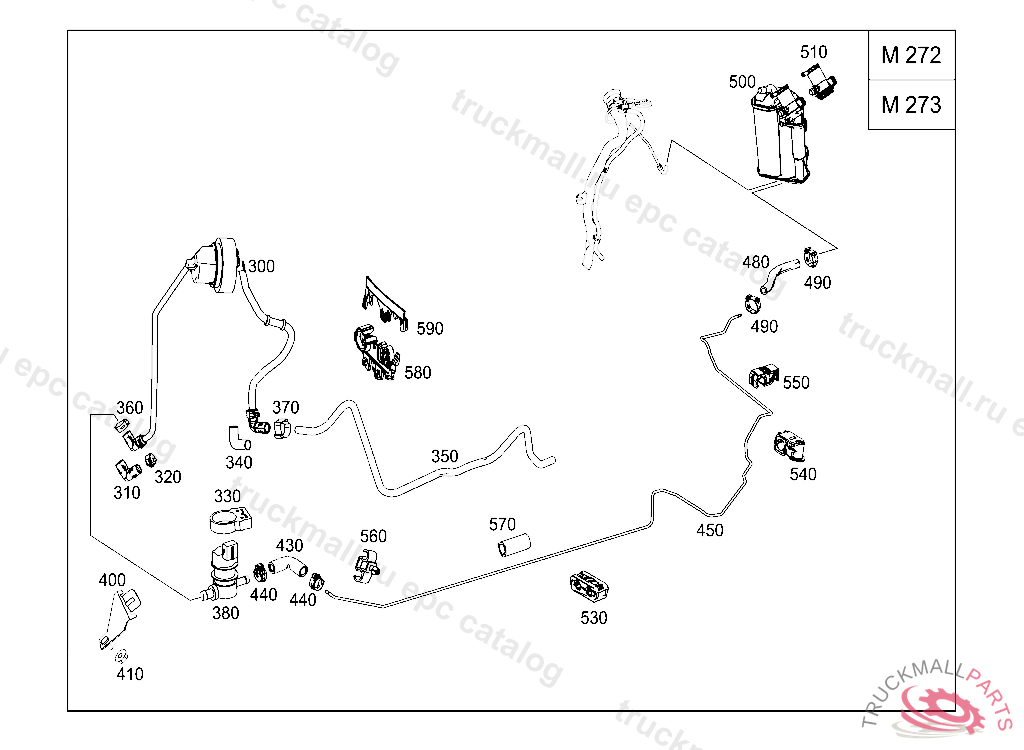

Поз.
Артикул
Описание
300
ABSORBER CONTAINER , F 05046020100411 F 13223720110531
300
DAMPER CAGE , F 05045920100411
300
DAMPER CAGE
310
HOSE FROM ACTIVATED CHARCOAL FILTER TO REGENERATION VALVE
320
HOSE CLAMP FUEL LINE TO FUEL FILTER
330
BRACKET REGENERATION VALVE
340
HOSE FROM FEED LINE TO FILTER 240 MM
350
PURGE LINE MOTOR AT DAMPER FILTER
360
HOSE CLAMP HOSE ATTACHMENT
370
HOSE CLAMP FUEL LINE TO FUEL FILTER
380
PURGE VALVE
380
PURGE VALVE
400
BRACKET PURGE VALVE TO LONGITUDINAL MEMBER
410
NUT , Replaced By: N913023006001
430
HOSE REGENERATION VALVE TO ENGINE
440
HOSE CLAMP FUEL LINE TO FUEL FILTER
450
PURGE LINE
450
PURGE LINE
480
HOSE FROM ACTIVATED CHARCOAL FILTER TO BREATHER LINE, FROM MODEL YEAR '98
480
HOSE PURGE LINE TO ACTIVATED CHARCOALFILTER
490
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
500
ACTIVATED CHARCOAL FILTER
500
ACTIVATED CHARCOAL FILTER
510
SHUT-OFF VALVE ACTIVATED CHARCOAL FILTER
510
VALVE SHUTOFF VALVE ACTIVATED-CARBON FILTER, A 12562420080115 F 14570720080115 R 01906320080115
530
LINE HOLDER FUEL LINE TO FIREWALL, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0049958277
530
LINE HOLDER MOUNTING PIPE LINE, F 50193220100411
530
LINE FASTENER FUEL LINE TO FIREWALL
540
LINE HOLDER FUEL LINE MOUNTING
550
LINE HOLDER FUEL LINE MOUNTING
560
BRACKET FUEL LINE MOUNTING
570
HOSE FROM FEED LINE TO FILTER 240 MM
580
FEED-THROUGH GROMMET LOWER PART
590
FEED-THROUGH GROMMETOBERTEIL, A 58879420110630 L 05094120110630 V 00365520110630 F 73545920110707 L 15437920111012
