Поз.
Артикул
Описание

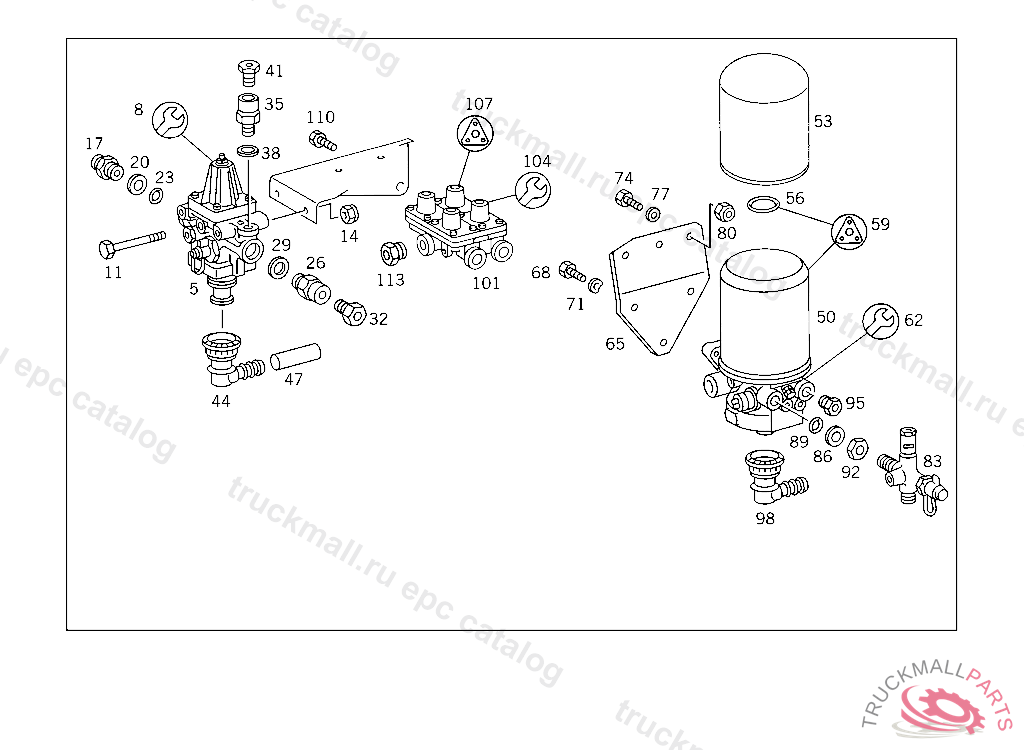

5
PRESSURE REGULATORBOSCH,241, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
PRESSURE REGULATORWABCO
8
REPAIR KIT PRESSURE REGULATOR BOSCH,241
8
REPAIR KIT PRESSURE REGULATOR WABCO
11
SCREW REAR AXLE REGULATING SOLENOID VALVE
14
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
14
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
14
NUT , Replaced By: N913004008001
17
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
20
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
20
THRUST RING CHECK VALVE TO AIR RESERVOIR
23
O-RING CHECK VALVE TO AIR RESERVOIR
26
FITTING LINE CONNECTION
29
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
32
SCREW. UNION SCREW LINE CONNECTION
35
FITTING LINE CONNECTION
38
SEAL RING LINE CONNECTION
41
SCREW. UNION SCREW , Replaced By: A0009973734
41
SCREW. UNION SCREW LINE CONNECTION
44
CONNECTOR BLEEDING
47
HOSE , Replaced By: A0009872927
47
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
50
AIR DEHYDRATOR WITH PRESSURE REGULATOR KNORR,K 126821
50
AIR DRIERKNORR,5 937586
50
AIR DEHYDRATOR WITH PRESSURE REGULATOR BOSCH,K 126821
50
AIR DEHYDRATORKNORR,5 937586, Replaced By: A0024317015
50
AIR DEHYDRATORBOSCH,5 937586
50
AIR DEHYDRATORWABCO,5 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
53
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
53
AIR CLEANER COMPLETE TO BOSCH,KNORR
56
SEAL RINGWABCO
59
GASKET KITKNORR
59
GASKET KITWABCO
59
GASKET KIT SEAL RINGS KNORR,5 937586
62
REPAIR KIT PRESSURE REGULATOR KNORR,K 126821
62
REPAIR KIT PRESSURE REGULATOR BOSCH,K 126821
65
BRACKET AIR DEHYDRATOR,K 126821
65
BRACKET AIR DEHYDRATOR,5 9363655 812730
68
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
68
SCREW BRACKET TO TRANSMISSION
68
SCREW , Replaced By: N308676012012
68
SCREW , Replaced By: N308676012038
71
SPRING WASHER CAB FLOOR
71
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
74
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
74
SCREW , Replaced By: N308676012026
77
WASHER BRACKET TO FRAME
80
NUT SUPPORT TO SIDE MEMBER
83
FITTING AIR DEHYDRATOR
86
THRUST RING CHECK VALVE TO AIR RESERVOIR
86
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
89
O-RING CHECK VALVE TO AIR RESERVOIR
92
NUT CHECK VALVE TO AIR RESERVOIR
95
SCREW. UNION SCREW LINE CONNECTION
95
SCREW. UNION SCREW LINE CONNECTION
95
SCREW. UNION SCREW , Replaced By: A0009973734
98
CONNECTOR BLEEDING
98
CONNECTOR 90 DEG. OFFSET
101
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) 260 0 WABCO
101
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
104
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE WABCO
107
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE
107
REPAIR KIT , Replaced By: A0004304706
110
SCREW , Replaced By: N304017008021
110
SCREW PIPE CLAMP
113
SCREW. UNION SCREW LINE CONNECTION
