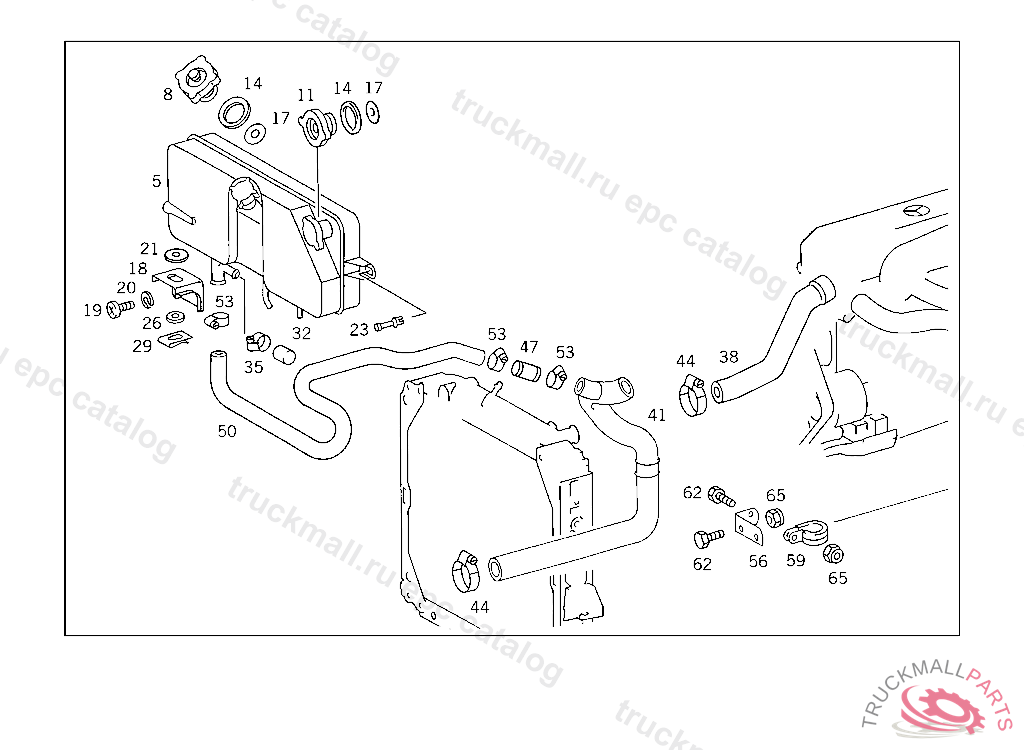

Поз.
Артикул
Описание
5
TANK EXPANSION TANK
5
TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 941451, Replaced By: A6745000049, +001A6745012082, +001A6745012182
8
RADIATOR CAP FILLER NECK
11
RADIATOR CAP
14
GASKET O.D., 52 MM
17
GASKET O.D., 37 MM
18
BRACKET RESERVOIR TO CAB FRONT PANEL
18
BRACKET , Replaced By: A6736250214
19
SCREW RESERVOIR TO CAB FRONT PANEL M 6X12
20
LOCK WASHER CABLE TO FUSE BOX
21
RUBBER MOUNTING RESERVOIR TO CAB FRONT PANEL
23
RIVET COOLANT LINE ON FAN SHROUD
26
WASHER , Replaced By: N000125017016
29
CLIP RESERVOIR TO CAB FRONT PANEL
29
LOCK AT WATER EXPANSION TANK
32
LOCKING CAP AT WATER EXPANSION TANK
35
CLAMP HOSE TO HEATING PIPE
35
LOOM TIE HOSE TO HEATING PIPE
38
HOSE FROM RADIATOR TO THERMOSTAT,5 463262
41
HOSE ,K 053730
44
LOOM TIE HOSE TO FILLER NECK
47
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
50
HOSE RETURN LINE AUXILIARY RADIATOR ON ENGINE, TO BE ADAPTED DURING ASSEMBLY
53
CLAMP HOSE TO FILLER NECK
53
LOOM TIE HOSE TO FILLER NECK
999
SHEET METAL SCREW BRACKET TO FIRE WALL
999
WASHER COVER PLATE TO COVER PLATE
999
BRACKET COOLING WATER HOSE TO OIL FILLER PIPE BRACKET,5 509581
