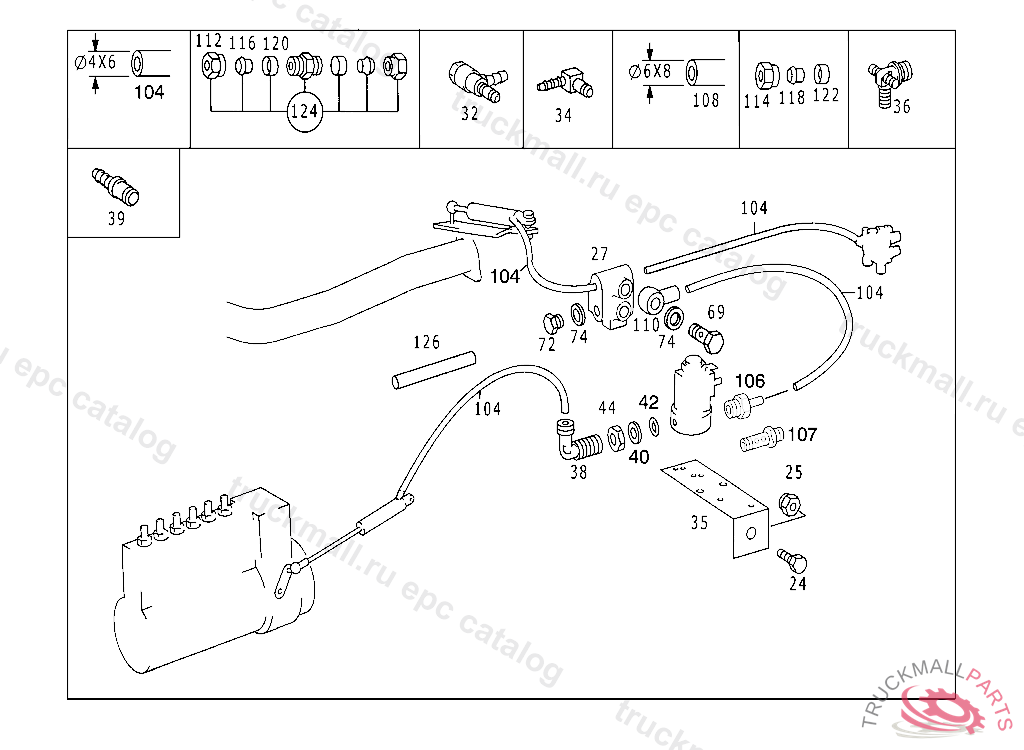

Поз.
Артикул
Описание
24
SCREW BRACKET TO BUMPER,LEFT M 10X25
24
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
24
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
25
NUT BRACKET TO SIDE MEMBER,XB209706
25
NUT BRACKET TO SIDE MEMBER M12X1.5
25
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
27
DISTRIBUTOR
27
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
32
ELBOW FITTING COMPRESSED AIR LINE TO M22 / 4MM / M16X1,5 / VOSS 230
34
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
34
ELBOW FITTINGTO M10 / 4MM /VOSS 230
35
BRACKET DISTRIBUTOR
36
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
38
ELBOW FITTING AT CYLINDER
39
CONNECTOR , Replaced By: A0029905378
39
CONNECTORTO M22 / 4MM / VOSS 230
40
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
40
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
42
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
44
NUT ,D 091466
69
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
69
HOLLOW SCREW HEATING CONNECTION
72
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
74
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
104
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
106
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
107
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
108
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
108
PLASTIC PIPE8X6 MM, ORDER BY THE METER
110
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
110
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
112
UNION NUT
114
UNION NUT LINE CONNECTION
116
GLAND , Replaced By: A0019901667
118
GLAND LINE CONNECTION
120
SLEEVE LEAK LINE
122
SLEEVE LINE CONNECTION
124
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
126
INSULATING HOSE
126
INSULATING HOSE RED, ORDER BY THE METER
126
INSULATING HOSE COLOR CODE GREEN
126
INSULATING HOSE8X0,01 MM
126
INSULATING HOSE COLOR CODE BLUE 2X0,01 MM
999
GUIDE SIGN DIFFERENTIAL LOCK
