Поз.
Артикул
Описание

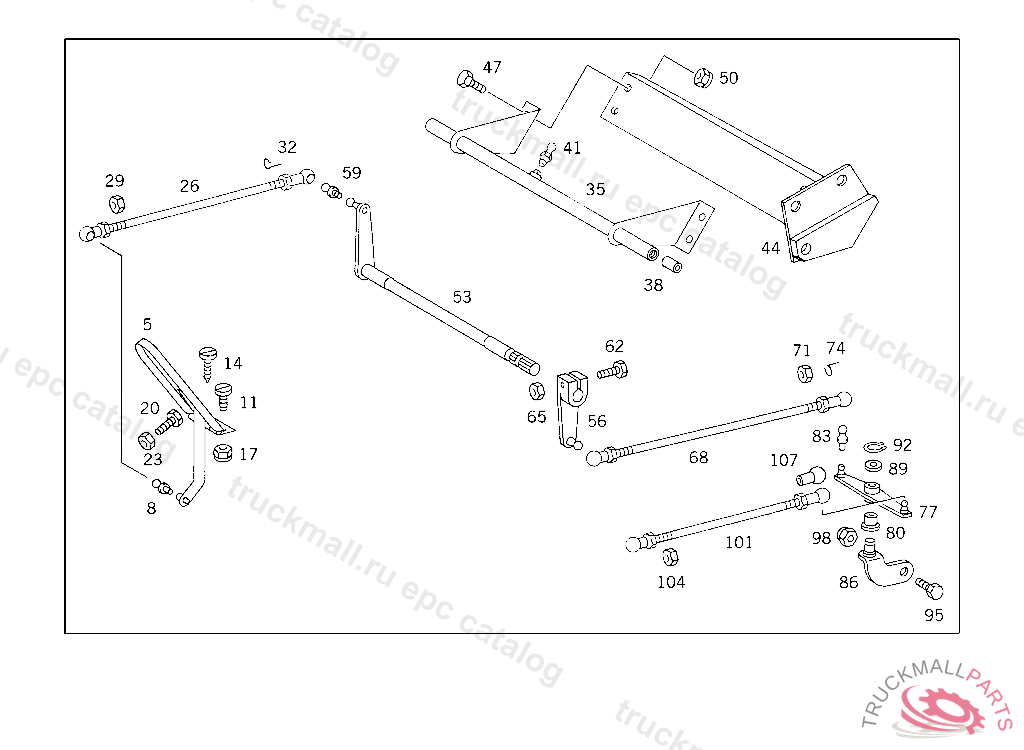

5
ACCELERATOR PEDAL ,B 990549
8
BALL PIVOT CONTROL SHAFT
11
SCREW AIR CLEANER ELEMENT
14
SHEET METAL SCREW MAIN CABLE HARNESS TO FIRE WALL
17
NUT , 309.170-173,181-183,190,191 FROM CHASSIS 011044
20
SCREW BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
20
SCREW LEVER TO RELEASE SHAFT
23
NUT BRACKET TO RETARDER
26
ROD FROM CONTROL LEVER TO ENGINE
29
NUT BALL PIVOT TO LEVER
32
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
35
BRACKET ACCELERATOR CONTROL,D 000146
35
BEARING TUBE ,D 000147
38
BUSHING , 032,033,040,041,132,133,140,141 FROM ENGINE 031700 040,041,140 UP TO CHASSIS 085315 344.141 LESS SUPERCHARGING SYSTEM UP TO CHASSIS 031699 ON LK 1113 WITH CAB 814 FROM CHASSIS 12326709
38
BUSHING , 032,033,040,041,132,133,140,141 FROM ENGINE 031700 040,041,140 UP TO CHASSIS 085315 344.141 LESS SUPERCHARGING SYSTEM UP TO CHASSIS 031699 ON LK 1113 WITH CAB 814 FROM CHASSIS 12326709
41
GREASE NIPPLE PROTECTIVE TUBE
41
GREASE NIPPLE
44
BRACKET ,D 000147
47
SCREW STEERING SHAFT BEARING TO CAB M 8X20
50
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
53
INTERMEDIATE SHAFT MANUAL CONTROL
56
LEVER ACCELERATOR CONTROL
59
BALL PIVOT CONTROL SHAFT
62
SCREW OVERLOAD PROTECTOR TO BRACKET
65
NUT
68
68
71
NUT BALL PIVOT TO LEVER
74
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
77
LEVER
77
LEVER
80
BUSHING MANUAL CONTROL,D 249954
83
BALL PIVOT CONTROL SHAFT
86
BEARING BRACKET
89
WASHER
92
LOCK RING , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
95
SCREW BRACKET TO RIGHT SIDE MEMBER
98
NUT BRACKET TO SIDE MEMBER
101
101
ROD FROM CONTROL LEVER TO ENGINE
104
NUT BALL PIVOT TO LEVER
107
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
999
BALL SOCKET PULL ROD TO LEVER
999
STOP FULL THROTTLE
999
JOINT
999
BRACKET ACCELERATOR CONTROL
999
ACCELERATOR PEDAL
999
LEVER (CONTROL LEVER),1B 915840
999
BEARING BRACKET ,D 209702
999
BRACKET TO PEDESTAL
999
INTERMEDIATE SHAFT
999
ROD FROM PEDAL LEVER TO INTERMEDIATE LEVER
999
LEVER (PEDAL LEVER)
999
ACCELERATOR PEDAL
999
999
WASHER PLUG SOCKET TO BRACKET
999
WASHER TRAILER PLUG SOCKET TO BRACKET
999
SCREW BRACKET TO FRAME
999
SCREW SWITCH TO BRACKET 8X16
999
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
999
SCREW AIR INTAKE PIPE TO BRACKET
999
SCREW PEDAL TO CAB FLOOR
999
BALL PIVOT INTERMEDIATE LEVER
999
BALL SOCKET AT CONTROL LEVER
999
LOCK RING. RETAINING RING ACCELERATOR PEDAL TO LEVER
999
PULL ROD6X170,GB718836
999
NUT , Replaced By: N913004006001
