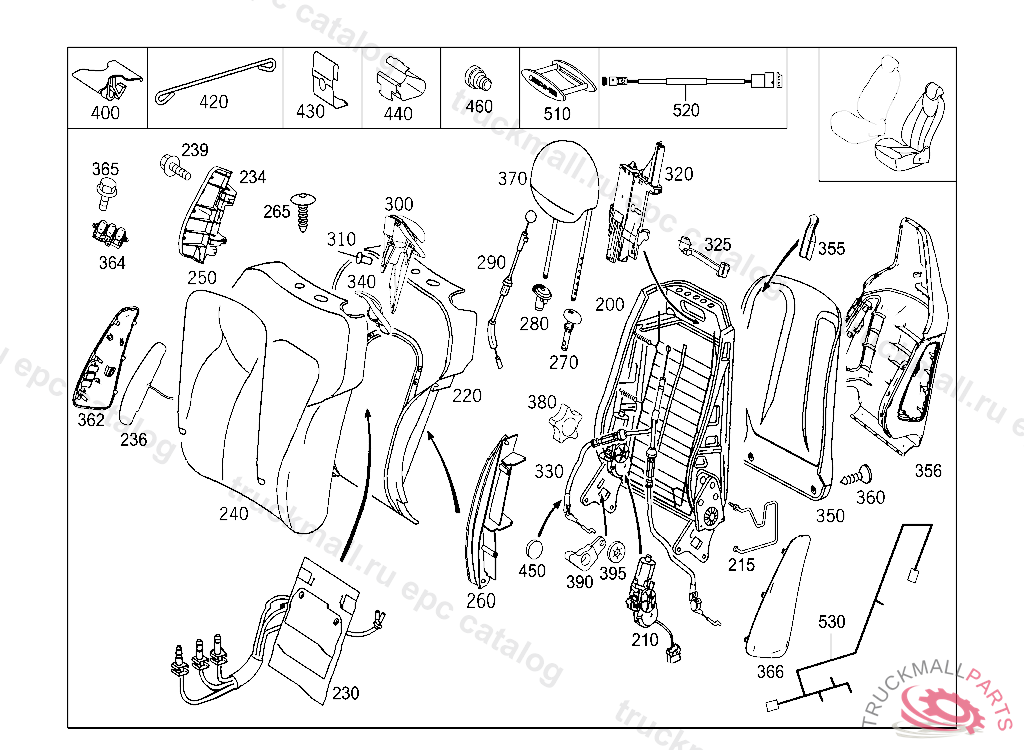

Поз.
Артикул
Описание
200
BACKREST FRAME
200
BACKREST FRAME
210
ELECTRIC MOTOR BACKREST ADJUSTER
220
REST LEFT, F 13263220050114805
220
REST LEFT, F 13263220050114805
220
REST LEFT, F 15559920050114805
220
REST LEFT, F 13263220050114805
220
REST LEFT, F 15559920050114805
220
REST LEFT, F 13263220050114805
230
SEAT ADAPTER LUXURY SEAT, RIGHT
230
SEAT ADAPTER LEFT MULTI-CONTOUR BACKREST
230
SEAT ADAPTER LUXURY SEAT, AND MULTICONTOUR SEAT LEFT
240
COVER FRONT SEAT BACKREST LEFT
240
COVER LEFT
240
COVER LEFT
240
COVER LEFT
240
COVER LEFT
240
COVER LEFT
240
COVER FRONT SEAT BACKREST LEFT
240
COVER LEFT
240
COVER LEFT
240
COVER LEFT
240
COVER LEFT, F 13263220050114805 9E88 711A QFT209A2205 BLACK
240
COVER LEFT
250
CLAMP LONGITUDINAL STAPLE UPHOLSTERY CENTER RIGHT SEAT, T 05605520050531 F 16723020050731
260
SEAT ADAPTER OUTER LEFT ADJUSTABLE, RIGHT SEAT
260
SEAT ADAPTER OUTER RIGHT ADJUSTABLE, RIGHT SEAT
270
GUIDE HEAD RESTRAINT SEAT LEFT, RIGHT
270
GUIDE LEFT HEAD RESTRAINT
280
GUIDE FOR HEADREST HEAD RESTRAINT, RIGHT
290
PULL RETRACTABLE HEAD RESTRAINT
300
DETENT LEFT BACKREST RELEASE
310
RIVET ,190 000697105 108727
320
FOLDING MECHANISM LEFT HEAD RESTRAINT, F 15559920050114805
320
FOLDING MECHANISM HEAD RESTRAINT, RIGHT, F 15559920050114805
325
CONNECTION LEFT BACKREST
330
PULL LEFT BACKREST RELEASE
340
COVER LEFT BACKREST LOCK
350
PANELING BACKREST
350
PANELING LEFT
350
PANELING LEFT
355
HOOK ON TRIM,RIGHT
355
HOOK ON TRIM,LEFT
360
SCREW PANELLING TO FRONT SEAT BACKREST
370
HEAD RESTRAINT LEFT, F 15559920050114805 9D88 711A QFT209A2206 BLACK
370
HEAD RESTRAINT RIGHT
370
HEAD RESTRAINT RIGHT
370
HEADREST LEFT
370
HEAD RESTRAINT RIGHT
370
HEAD RESTRAINT LEFT
370
HEAD RESTRAINT LEFT
370
HEAD RESTRAINT RIGHT
370
HEAD RESTRAINT LEFT
380
HANDWHEEL BACKREST ADJUSTER
390
LEVER RETRACTABLE HEAD RESTRAINT
395
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
400
CLIP
420
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
430
CLIP WIRING OF LINES
450
LOCK PLATE MOUNTING CABLE, RIGHT
460
BOLT FORCED RETURN, RIGHT M8
510
PLATE AMG BADGE
520
WIRING HARNESS SIDE AIRBAG RIGHT TO BACKREST FRAME
