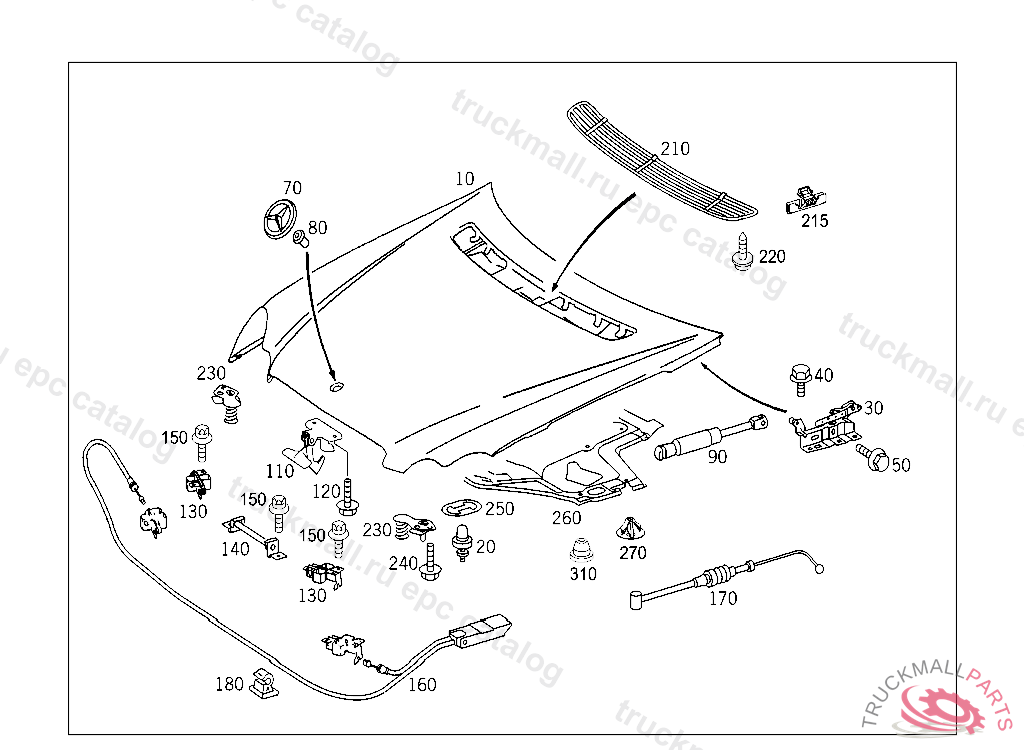

Поз.
Артикул
Описание
10
ENGINE HOOD
20
BUFFER ENGINE HOOD REST TO STIFFENING
30
HINGE LEFT
30
HINGE RIGHT
40
SCREW INTAKE SHELL TO BRACKET,A 213305
50
BOLT HINGE TO ENGINE HOOD M6X16, A 87779820051031806 E 01945020051031806
70
BADGE , Replaced By: A2078170316
70
COMPANY SIGN
80
GROMMET MERCEDES STAR TO REAR LID
90
GAS-OPERATED SPRING LEFT, A 97499920070630 E 06000020080901809
90
GAS-OPERATED SPRING RIGHT, A 97499920070630 E 06000020080901809
110
RETAINING HOOK ENGINE HOOD,FRONT CENTRAL, Replaced By: A2198800064
110
SAFETY HOOK ENGINE HOOD, E 02900020071206808
120
SCREW LEVER TO ENGINE CONTROL SHAFT
130
LOCK LOWER PART ON FRONT CENTRAL STIFFENING, Replaced By: A2198800160
130
ENGINE HOOD CATCH ON FRONT CENTRAL STIFFENING
140
SAFETY HOOK ON FRONT CENTRAL STIFFENING
150
SCREW LEVER TO ENGINE CONTROL SHAFT
150
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
160
ENGINE HOOD RELEASE CABLE FRONT
170
ENGINE HOOD RELEASE CABLE REAR, E 02900020071206808
180
CLAMPING PIECE ENGINE HOOD RELEASE CABLE TO STIFFENING
210
COVER AIR INLET GRILLE
215
SPRING CLAMP ATTACHMENT, GRID
220
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
230
ENGINE HOOD CATCH UPPER PART, E 02900020071206808
240
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
240
SCREW LEVER TO ENGINE CONTROL SHAFT
250
INTERMEDIATE LAYER INSIDE
260
INSULATION ENGINE HOOD AT ENGINE HOOD
270
PLUG-IN MOUNTING INSULATION TO ENGINE HOOD
310
STOP PLUG PAINT RUN-OFF HOLE 15MM
