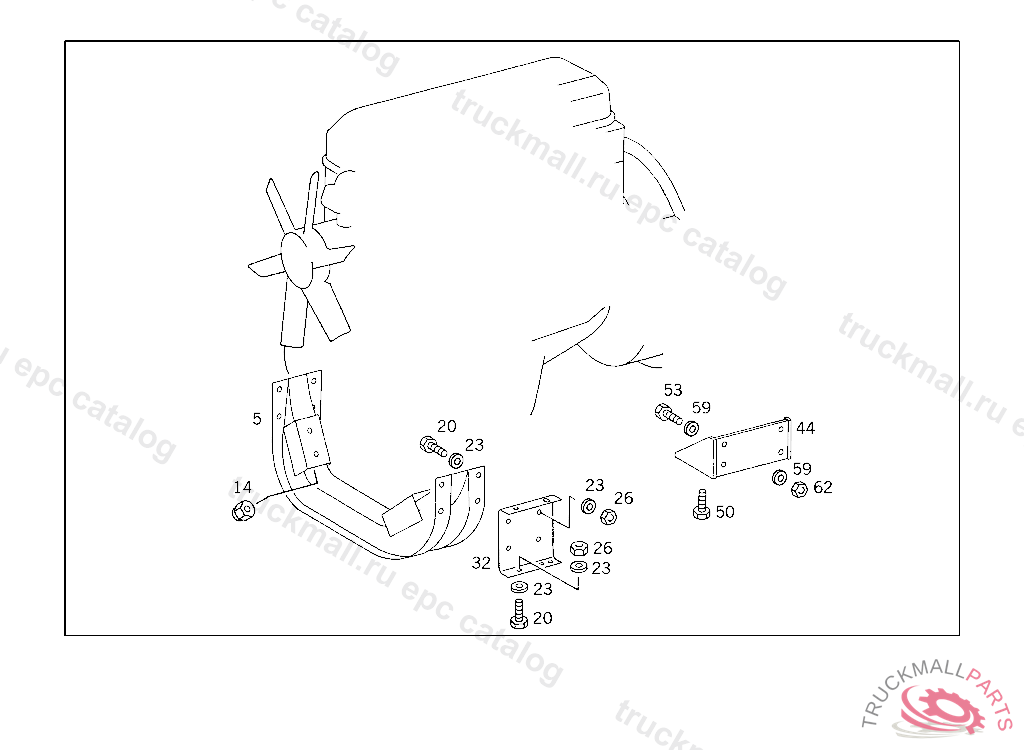

L 1621 - 685.153 - 24 ENGINE SUSPENSION
Поз.
Артикул
Описание
5
5
ENGINE SUPPORT
14
NUT SUPPORT TO SIDE MEMBER
20
PART NAME MISSING SCREW, INAPPLICABLE TO BM 685.441-327,310 BM 685.448-310
20
PART NAME MISSING SCREW
20
PART NAME MISSING SCREW
23
PART NAME MISSING WASHER
26
PART NAME MISSING NUT 1/2-13
32
32
44
CONSOLE LEFT AND RIGHT
50
SCREW CONSOLE TO SIDE MEMBER
53
PART NAME MISSING SCREW, INAPPLICABLE TO BM 685.441-327,310 BM 685.448-310
53
PART NAME MISSING SCREW
59
PART NAME MISSING WASHER
62
PART NAME MISSING NUT 1/2-13
