Mercedes N914138004201 - Болт

L 1619 685.247

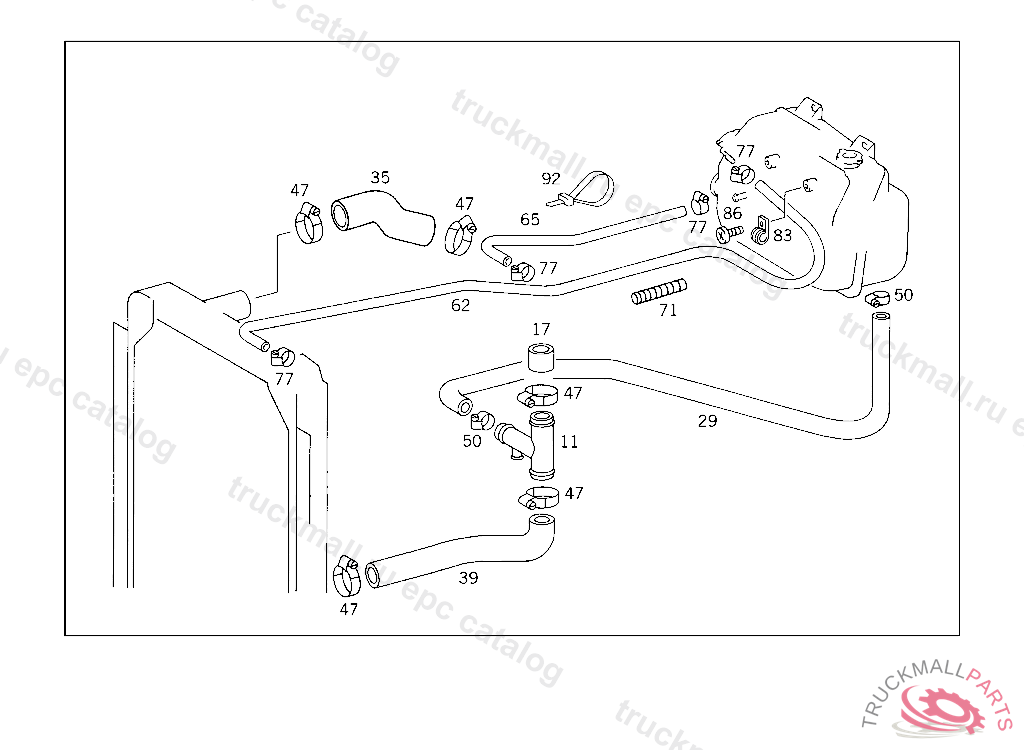

50 RADIATOR - 300 COOLING WATER HOSES IL. 1

Поз.
Артикул
Описание
11
HXM6855000272
17
N900271042008
HOSE COOLING WATER LINE TO CHARGING AIR INTERCOOLER 90MM, ORDER BY THE METER
29
N900271032031
HOSE FROM FITTING TO T-FITTING
35
HXM6855010982
39
A6855010982
47
N000000000671
CLAMP
47
N916017040000
CLAMP , Replaced By: N000000000671
47
A3449977790
CLAMP CHARGE AIR INTERCOOLER
47
A3459977090
CLAMP COMPRESSED AIR LINE
50
A3509977490
50
A3509979090
CLAMP EXPANSION TANK
62
HXM6855011582
HOSE FROM EXPANSION TANK TO RADIATOR, ORDER BY THE METER
65
N900271015129
HOSE FROM L.P.G. REGULATOR TO INTERMEDIATE PIECE 15X24X830 MM
71
HXM6855480735
77
A3509978890
CLAMP AIR COMPRESSOR
83
N916016020201
CLAMP PIPE ON FAN SHROUD
86
N914138004201
SCREW ENGINE CABLE HARNESS
92
A3459977590
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
92
A3459977390
LOOM TIE ELECTRIC CABLE MOUNTING
999
HXM6855010724
