Главная
›
Mercedes
›
VAN
›
311 CDI,313 CDI
›
690.611
›
31 FRAME
›

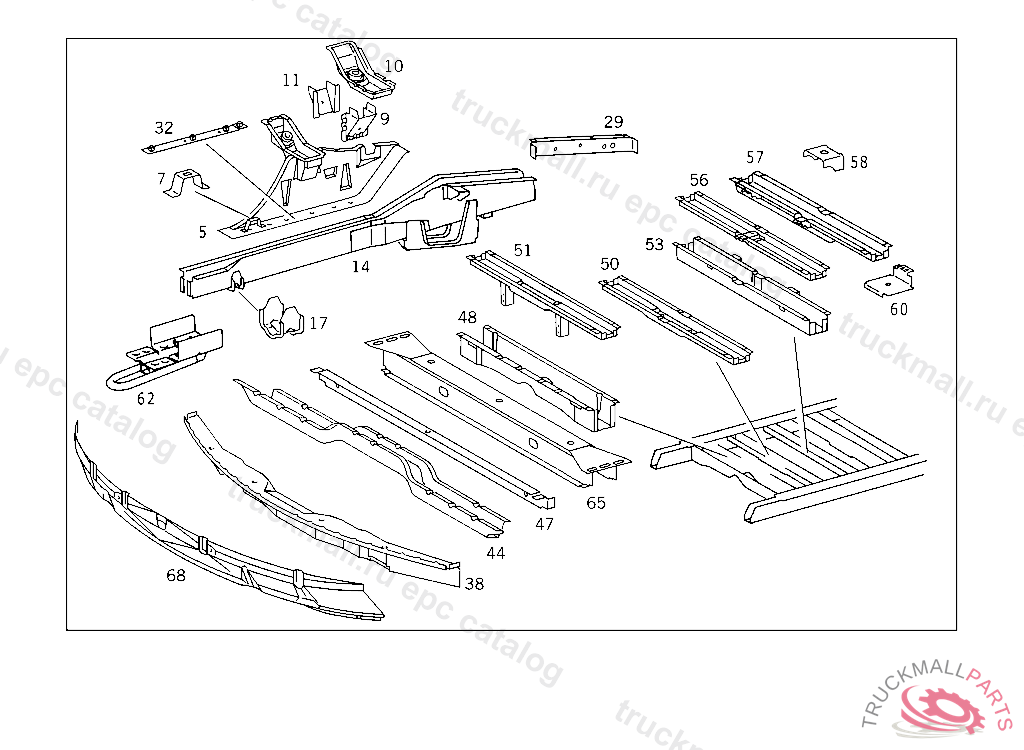

150 FRONT FRAME AREA IL. 1
Mercedes A9013100452 -
311 CDI,313 CDI 690.611
31 FRAME - 150 FRONT FRAME AREA IL. 1
Поз.
Артикул
Описание
5
A6903107063
CONSOLE LEFT, TO BE PROCURED FROM MBA ONLY
5
A6903107163
CONSOLE BODY SUPPORT,RIGHT
7
A9015240240
BRACKET , Replaced By: A9013100063
7
A9013100063
CONSOLE
9
A9013230024
CONSOLE
10
A6903237095
REINFORCEMENT LEFT
10
A6903237195
REINFORCEMENT RIGHT
11
A9013230195
REINFORCEMENT
14
A9013100619
SIDE MEMBER RIGHT FRONT
14
A9013100818
SIDE MEMBER LEFT FRONT
17
A9015830159
CLAMP
29
A9013100209
BRACKET
32
A9013100068
RAIL FRONT LEFT AND RIGHT
38
A9013100622
CROSS MEMBERNO.1
44
A9013120203
CROSS MEMBER SEAT MOUNTING "2"
47
A9013100024
CROSS MEMBERNO.2A
48
A6903108637
CROSS MEMBERNO.3
48
A6903107737
CROSS MEMBERNO.3
51
A9013101837
CROSS MEMBER"3A.1"
53
A9013100636
CROSS MEMBERNO.4.1
62
A9013100708
TOW HOOK AT RIGHT SIDE MEMBER
65
A9013100052
COVER PLATE
68
A9013100452
COVER
