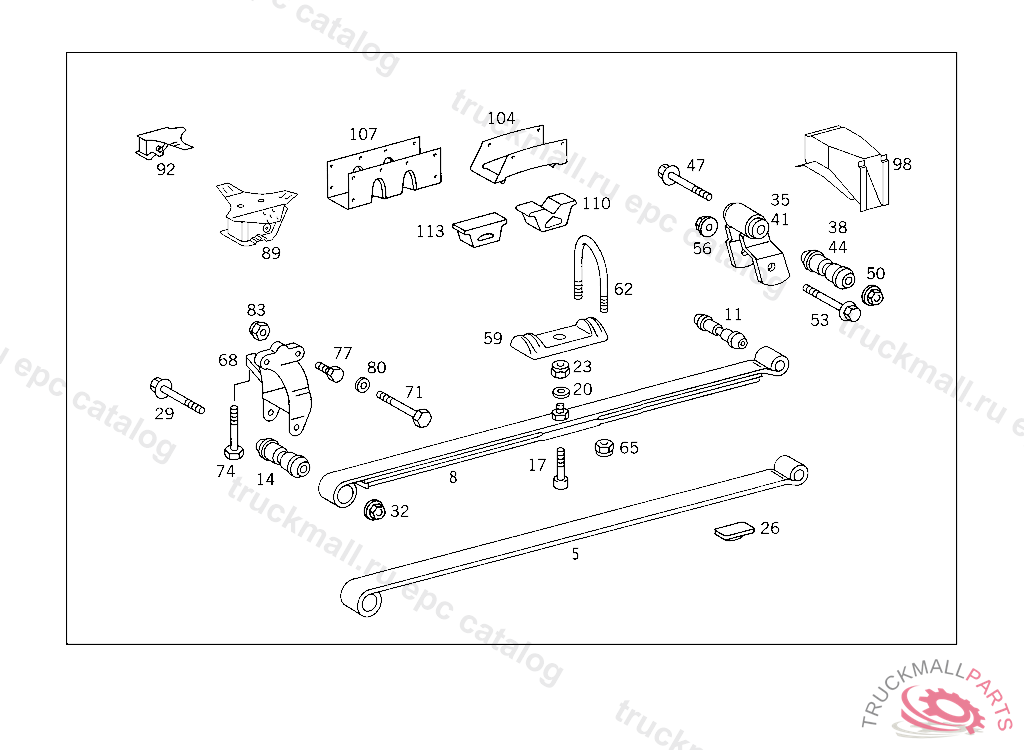

Поз.
Артикул
Описание
5
REAR SPRING
11
BUSHING REAR SPRING TO REAR SPRING FRONT BRACKET
14
BUSHING
26
SHIM
29
SPRING BOLT SHACKLES TO REAR SPRING FRONT AND REAR BRACKETS
32
NUT BRACKET TO SIDE MEMBER M12X1.5
35
SHACKLE REAR SPRING TO REAR SPRING REAR BRACKET
38
BUSHING SHACKLE TO REAR-SPRING REAR BRACKET
47
SPRING BOLT SHACKLES TO REAR SPRING FRONT AND REAR BRACKETS
50
NUT BRACKET TO SIDE MEMBER M12X1.5
53
SCREW. BOLT SPRING SHACKLE
59
PLATE
62
U-BOLT , S 47977520100531
62
CLAMP REAR SPRING TO REAR AXLE, Replaced By: A9063250247
65
COLLAR NUT F SHAFT AT CLAMP
68
SPRING BRACKET REAR SPRING FRONT BRACKET
71
SCREW , Replaced By: N308765014008
74
SCREW , Replaced By: N308676014013
77
SCREW BATTERY CASE TO SIDE MEMBER
80
WASHER BRACKET TO SIDE MEMBER
83
NUT , Replaced By: N910113014000
104
BRACKET SPRING STOP
107
TRUSS SPRING STOP
110
RUBBER BUFFER. RUBBER BUMPER SPRING STOP
110
RUBBER BUMPER. RUBBER BUFFER REAR AXLE
