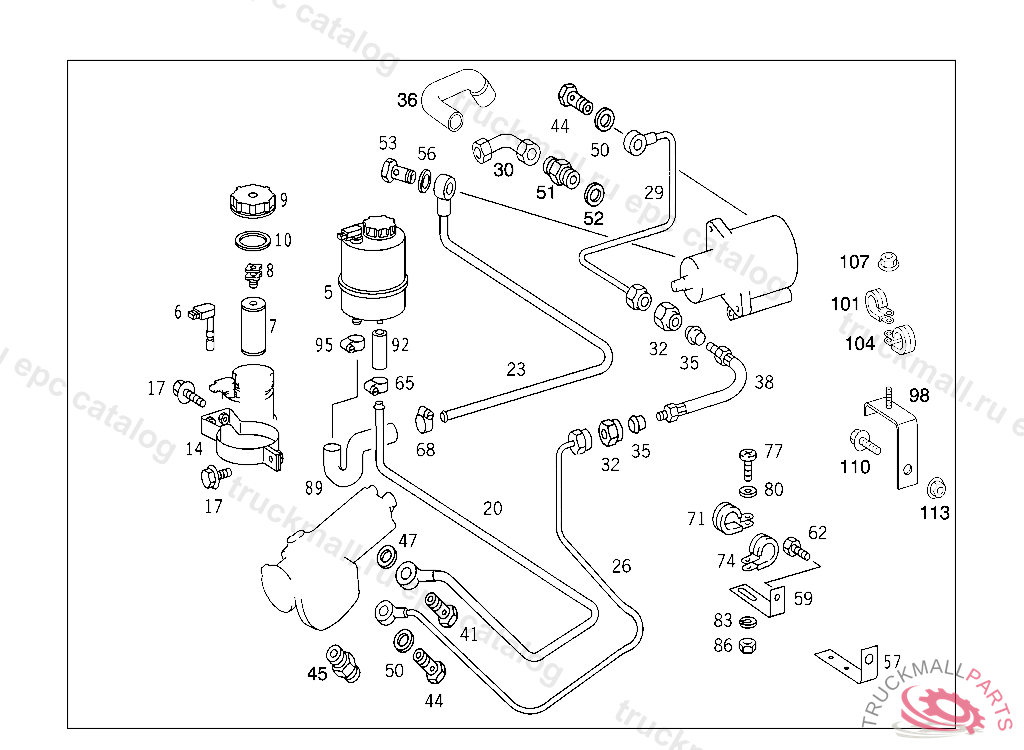

Поз.
Артикул
Описание
5
6
OIL LEVEL CHECK PIPE
7
FILTER , Replaced By: A0004660604
8
BRACKET
9
FILLER CAP
10
SEAL RING
14
STRAP OIL TANK
17
SCREWM 10X20
20
23
23
23
26
26
29
29
30
LINE FROM OIL PUMP TO HIGH PRESSURE HOSE
32
UNION NUT LINE CONNECTION, Replaced By: N000000006239
35
GLAND , Replaced By: A0019901967
36
38
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
38
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
38
HOSE DELIVERY LINE TO PUMP
41
HOLLOW SCREW
44
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
45
SCREW-IN FITTING OIL LINE CONNECTION
47
SEAL RING SOLENOID VALVE A 18X24
50
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
50
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
51
FITTING AT AIR COMPRESSOR
52
SEAL RING LINE TO OIL PUMP
53
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
56
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
57
59
BRACKET BRACKET TO CROSS MEMBER
62
SCREW COOLING WATER LINE TO ENGINE
65
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
68
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
71
CLAMP LINES TO BRACKET
71
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
74
CLAMP LINES TO BRACKET
77
SCREW FUSE BOX TO APPARATUS PLATE
77
SCREW ELECTRICAL COMPARTMENT
80
WASHER PLUG SOCKET TO BRACKET
83
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
83
LOCK WASHER CABLE TO FUSE BOX
86
NUT
89
89
HOSE FROM OIL TANK TO SUCTION LINE
92
HOSE HIGH PRESSURE
95
CLAMP , Replaced By: N000000000667
98
BRACKET OIL LINE TO FRAME,D 523394
101
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
104
CLAMP DELIVERY AND SUCTION LINES TO FRAME
107
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
110
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
113
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
