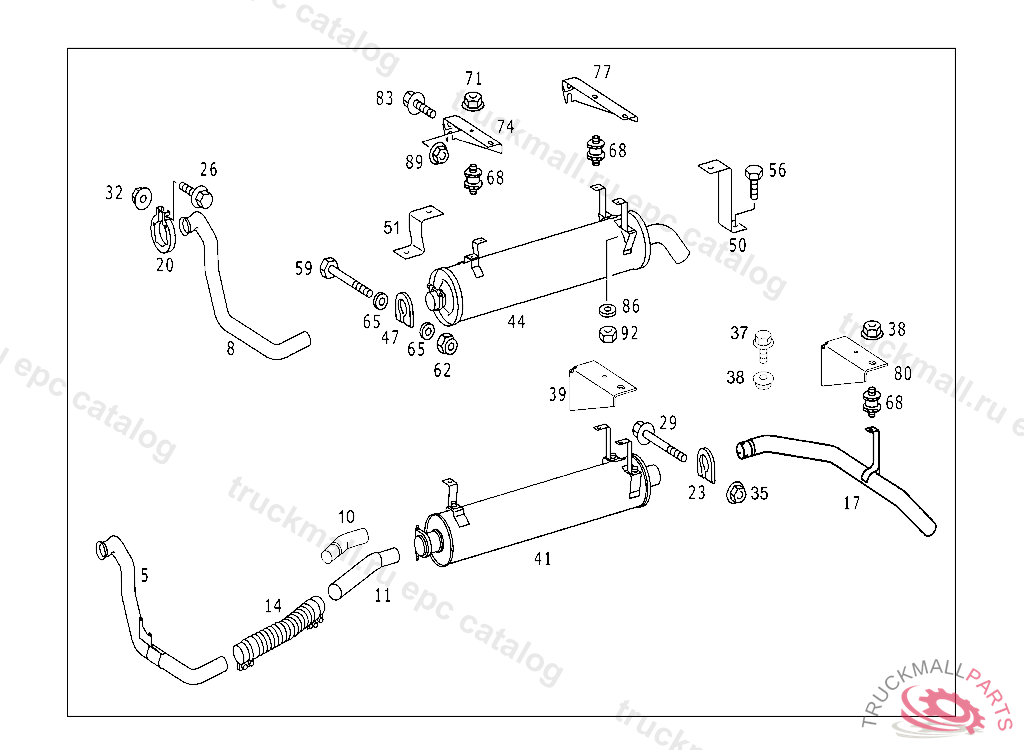

Поз.
Артикул
Описание
5
5
8
10
11
14
FLEXIBLE METAL TUBE3,0" X 334MM
14
FLEXIBLE METAL TUBE CONNECTION OF EXHAUST PIPES WITH EACH OTHER, FOR COMPONENT PARTS SEE SPARE PARTS LIST, Replaced By: A9704900565
17
20
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
23
CLAMP REAR EXHAUST PIPE TO MUFFLER
26
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
29
SCREW. HEXAGON HEAD BOLT FRONT EXHAUST PIPE TO MUFFLER M8X110 - TO A 979 492 03 40
32
NUT HORN TO BRACKET M8
35
NUT HORN TO BRACKET M8
37
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
38
NUT , Replaced By: N913023010002
38
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
39
BRACKET BRACKET TO LEFT SIDE MEMBER
39
41
44
47
CLAMP REAR EXHAUST PIPE TO MUFFLER
50
51
56
SCREW BRACKET TO SIDE MEMBER
59
SCREW SHIFT LEVER
62
NUT , Replaced By: A1201420072
65
WASHER FRONT AND REAR EXHAUST PIPES TO MUFFLER
68
RUBBER BUFFER EXHAUST MUFFLER
71
NUT , Replaced By: N913023010002
74
BRACKET RIGHT SIDE MEMBER
77
77
80
BRACKET BRACKET TO LEFT SIDE MEMBER
80
83
SCREW BRACKET TO SIDE MEMBER M10X35
86
WASHER GROUND CABLE
89
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
92
NUT BRACKET TO RETARDER
999
