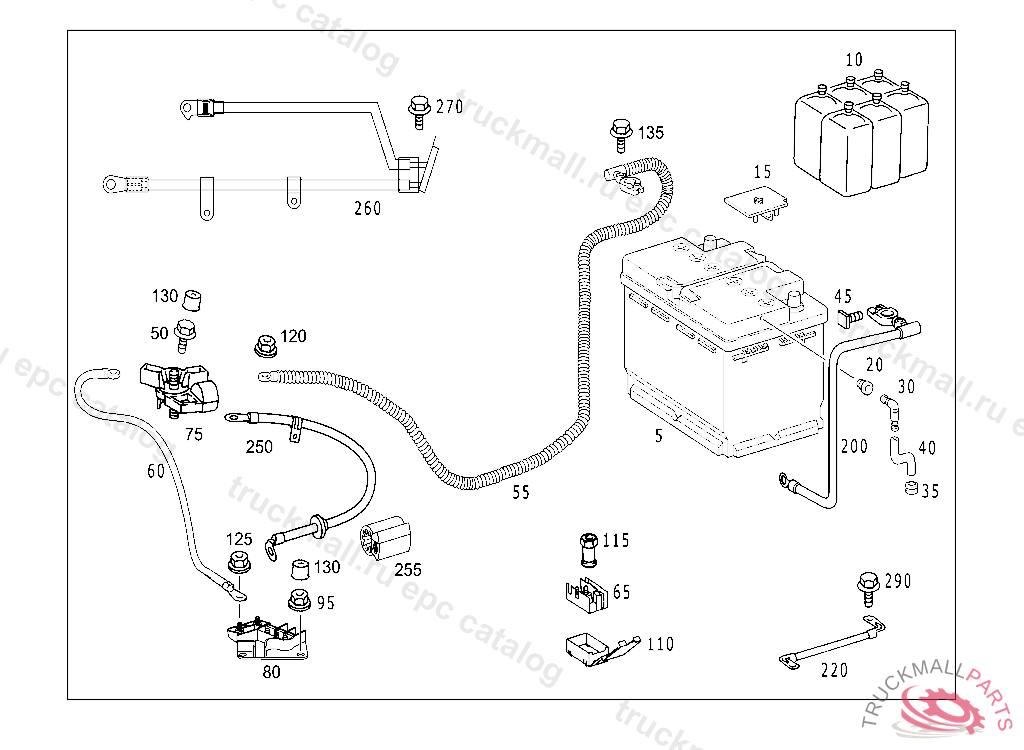

Поз.
Артикул
Описание
5
BATTERY
5
BATTERY FILLED 12V/95AH
5
BATTERY FILLED 12V/100 AH
10
BATTERY ACID BOTTLE SET
10
BATTERY ACID BOTTLE SETTO 001 541 79 01
15
BOOT POS. POLE
20
STOP PLUG. PLUG ON BATTERY,LATERALLY
30
ELBOW FITTING. DISTRIBUTOR
35
GROMMET BREATHER LINE
40
HOSE , ORDER BY THE METER
45
SCREW NEG.POLE
50
SCREW PROTECTIVE PLATE, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
55
POS.CABLE FROM BATTERY TO CABLE CONNECTOR
60
POS.CABLE. POSITIVE CABLE LEFT CABLE CONNECTOR
65
CABLE CONNECTOR WITH PROTECTION 200A
75
CABLE CONNECTOR
75
CABLE CONNECTOR
95
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
110
CAP BATTERY CABLE TO FRAME
115
NUT ON AUXILIARY JUMP START BOLTS
115
NUT BATTERY CABLE TO CABLE CONNECTOR
120
NUT HORN TO BRACKET M8
120
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
125
NUT HEATING PIPE TO BRACKET
125
NUT SPRING-LOADED PUSH ROD
130
BOOT BATTERY CABLE TO CABLE CONNECTOR
130
PROTECTIVE CAP. BOOT CABLE TO CABLE CONNECTOR
135
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
200
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND
200
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND
220
NEG. CABLE GROUND CABLE TO FRAME SIDE MEMBER
250
POS.CABLE FROM CABLE CONNECTOR TO STARTING MOTOR, B 17399920000630801
255
RUBBER RING STARTER WIRING HARNESS
270
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
290
HEXALOBULAR BOLT FASTENING OF WIRING HARNESS AT TRANSMISSION M8X16
