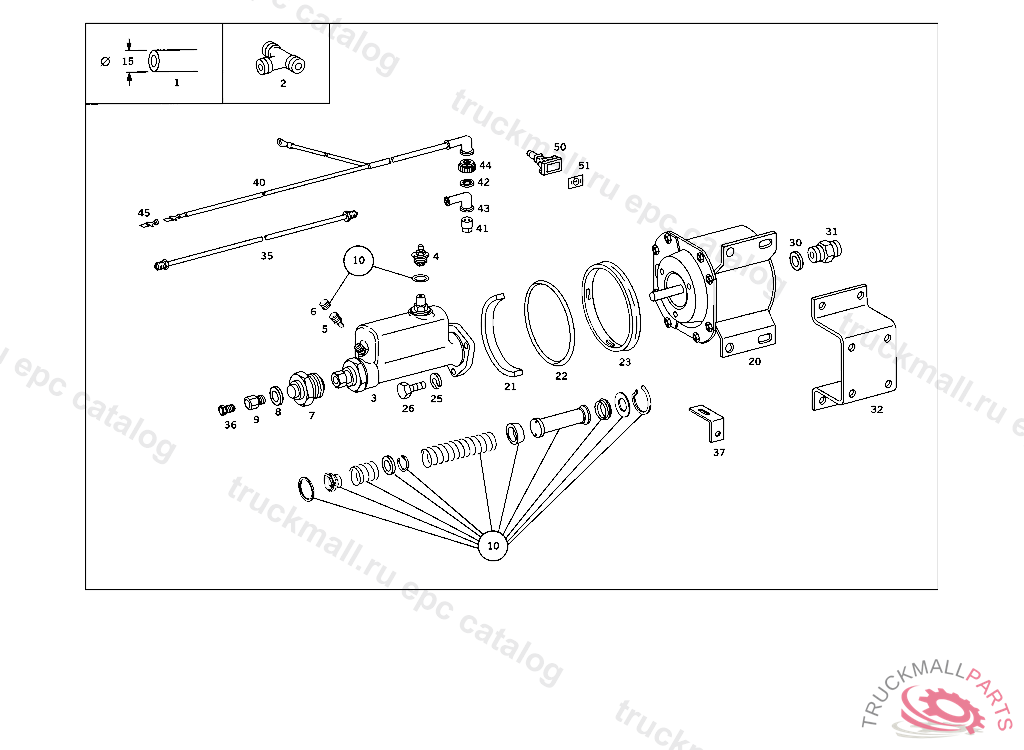

Поз.
Артикул
Описание
1
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
2
T-FITTING COMPRESSED AIR VALVE CONNECTION
3
BRAKE MASTER CYLINDER
4
SCREW PLUG
5
VALVE CLUTCH SLAVE CYLINDER
5
VALVE , Replaced By: A3075530107
6
PROTECTIVE CAP ,5 962906
6
PROTECTIVE CAP , Replaced By: A0004210887
6
PROTECTIVE CAP , Replaced By: A0004217187
7
THREADED UNIONTO 002 430 41 01
8
SEAL RING FUEL LINE TO FEED PUMP
9
SCREW FITTING (AT INTAKE). FITTING , TO TANDEM BRAKE MASTER CYLINDERS 001 430 51 01 AND 001 430 68 01
10
REPAIR KITTO 002 430 41 01
20
BRAKE CYLINDER
21
FILTER ELEMENT
22
SEAL RING
23
SEAL RING
25
LOCK WASHER COMPRESSED AIR LINE TO BRACKET
26
SCREW BRACKET TO SIDE MEMBER
26
SCREW , Replaced By: N304017010002
30
SEAL RING LINE CONNECTION
31
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
32
BRACKET
35
LINE FROM DISTRIBUTOR TO VALVE 3000 MM
36
SCREW PLUG CONNECTION "1","2",4 478330
37
BRACKET
37
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
37
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
37
BRACKET , Replaced By: A3812950440
40
ELECTRIC CABLE FROM STROKE CONTROL SWITCH TO TELL-TALE LAMP
41
PLUG
41
PLUG SOCKET PRESSURE SWITCH SCREW-CONNECTION TO M 24X1
42
WASHER PRESSURE SWITCH SCREW-CONNECTION TO M 24X1,5 129167
43
PLUG SOCKET , Replaced By: A3805400181
43
PLUG SOCKET , Replaced By: A3805402181
43
PLUG SOCKET REPAIR VERSION, NOT FOR DANGER CATEGORY VEHICLES M 24X1
43
BOOT
44
NUT PRESSURE SWITCH SCREW-CONNECTION M 24X1,5 129167
45
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
50
TELL-TALE LAMP , Replaced By: A0005451630, +001A0005452319
50
SHELL TRAILER BLINKER
51
LENS BRAKE LINING WEAR INDICATOR
999
LINE , Replaced By: A0005516256
999
SWITCH PRESSURE SWITCH M 24 X 1 MM
999
PLUG TO PLUG THE FREE HOLES FOR TELL-TALE LAMP
999
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
999
ELECTRIC CABLE
999
ELECTRIC CABLE
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
LOCK WASHER AIR DEHYDRATOR TO BRACKET
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
NUT BALL PIVOT TO LEVER
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT STRAP TO SUPPORT
999
NUT , Replaced By: N308673014001
999
SCREW , Replaced By: N308676012012
999
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
999
SCREW LINE MOUNTING M 6X16
999
BULB TELL-TALE LAMP
999
NUT BRACKET TO SIDE MEMBER,K 035196
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
