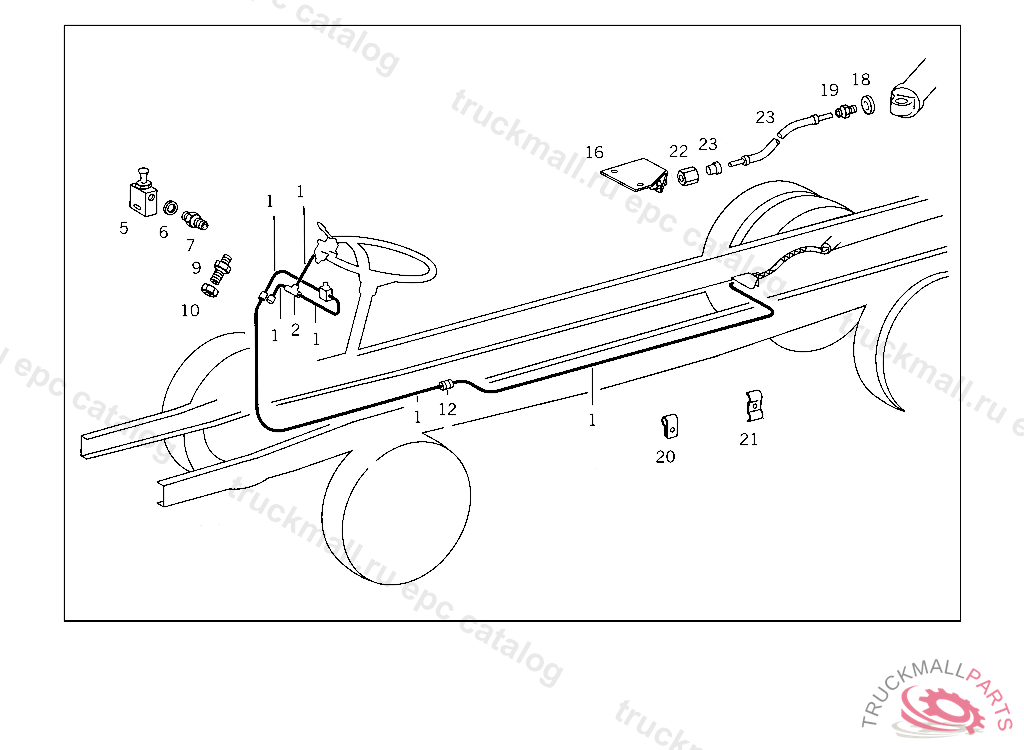

Поз.
Артикул
Описание
1
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
1
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
1
LINE , Replaced By: A0004296201
2
T-FITTING
2
T-FITTING FITTING,5 461950
5
VALVE DIFFERENTIAL LOCK
5
VALVE DIFFERENTIAL LOCK
6
SEAL RING LINE CONNECTION
7
FITTING LINE CONNECTION, Replaced By: N000000006446
7
FITTING , Replaced By: A0019972572
9
FITTING HYDRAULIC LINE TO BRACKET,K 130132
10
NUT RELEASE BEARING LUBRICATION
10
NUT , Replaced By: N308675014002
10
NUT , Replaced By: N308675014000
12
TS DOUBLE FITTING SOLENOID VALVE
12
FITTING (PARTS KIT),LINE RUPTURE
16
BRACKET FOR LINE CONNECTION
17
HOSE TRISTOP CYLINDER,4 412125
18
SEAL RING LINE CONNECTION
19
FITTING LINE CONNECTION, Replaced By: N000000006446
20
CLAMP , Replaced By: A1279950020
20
CLAMP LINE MOUNTING
20
CLAMP WIRE CABLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
20
CLAMP HOSE TO CAB
20
CLAMP , Replaced By: N072571001035
21
CLAMP AT SIDE MEMBER
22
NUT. UNION NUT LINE CONNECTION
23
GLAND LINE CONNECTION
999
STRAINER , L338 FROM IDENT NO. 006549
999
KNOB ,5 558612
999
NUT , Replaced By: N080705022001
999
SEALING CORD11.3X2.4
999
NUT CHECK VALVE TO AIR RESERVOIR
