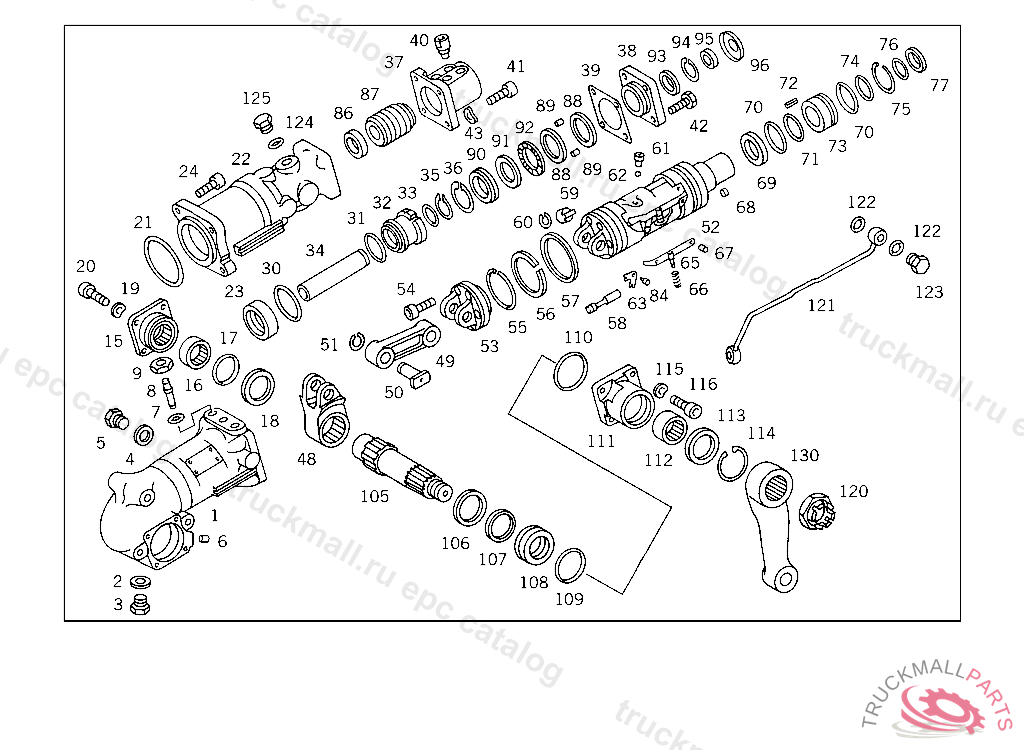

Поз.
Артикул
Описание
1
BOX
1
BOX
2
SEAL RING LINE CONNECTION
3
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
3
SCREW PLUG , Replaced By: N000908012009
4
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
5
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
6
PLUG
7
SEALING CORD7.5X2 MM
8
SCREW
9
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
15
COVER WITH NEEDLE BEARING
16
NEEDLE BEARING38X48X20 MM
17
SEALING CORD *** 52X3 MM
18
SPACER WASHER2.5 MM
18
SPACER WASHER2,6 MM
18
SPACER WASHER2.7 MM
18
SPACER WASHER2.8 MM
18
SPACER WASHER2.9 MM
18
SPACER WASHER3.0 MM
18
SPACER WASHER3.1 MM
18
SPACER WASHER3,2 MM
18
SPACER WASHER3.3 MM
18
SPACER WASHER3,4 MM
19
SPRING WASHER , Replaced By: N000137008212
20
SCREW
21
SEALING CORD88X3 MM
22
BOX WITH BEARING BUSHING
22
BOX UPPER PART
23
BUSHING
24
SCREW
30
SEAL RING INTERMEDIATE SHAFT, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
30
SEALING CORD , Replaced By: A0119973645
31
SEALING CORD46X3 MM
32
SPACER TUBE
33
SEALING CORD30X3 MM
34
SPACER TUBE
35
LOCK
36
SNAP RING
36
LOCK , Replaced By: A0009940640
37
CONTACT SUPPORT
38
FLANGE
39
SPACER WASHER0.4 MM
39
SPACER WASHER0.3 MM
39
SPACER WASHER0.2 MM
39
SPACER WASHER0.15 MM
39
SPACER WASHER0.12 MM
39
SPACER WASHER0.1 MM
40
CONTACT PIECE
40
CONTACT PIECE , Replaced By: A0004640319
41
SCREW
42
SCREW
43
SPRING WASHER STEERING COLUMN BRACKET TO CAB
48
UNIVERSAL JOINT YOKE
49
CONNECTING ROD
50
PIN
51
LOCK RING
52
PISTON
52
PISTON
53
BEARING BODY
54
SCREW
55
SNAP RING
56
RING SCRAPER RING 74.4X80X2.8
57
RING SEAL RING 67X73X3
58
PISTON OVERSIZE 0.1 MM, ONLY FOR EXPORT PURPOSE,AS PER SERVICE-INFORMATION 30/32 OF NOV.1965
58
PISTON
59
PIN
60
LOCK1.3 MM
60
LOCK , Replaced By: A0039948941
60
LOCK1.2 MM
60
LOCK1.1 MM
60
LOCK RING
61
VALVE *** 11.33 MM, 335.002-004/013 UP TO CHASSIS 006235,335.103/104/113 UP TO CHASSIS 002744,336.UP TO CHASSIS 600307,339.UP TO CHASSIS 600070
62
BALL SHIFTING CYLINDER
63
WEB
65
WEB
66
SPRING
67
CYLINDRICAL PIN
68
SPACER TUBE
69
RING7.0 MM
70
SEALING CORD47X2.5 MM
71
SEALING CORD *** 40X2.5 MM
72
SPRING
73
RING
74
SEALING CORD38X2.5 MM
75
SNAP RING
76
RING
77
RING
86
SEAL RING WITH DUST LIP 30X40X7 MM
86
SEAL RING30X40X7 MM
87
INSULATING PART
88
WASHER
89
ROLLER
90
BALL RACE
91
BALL RACE
92
NEEDLE BEARING
93
SEAL RING LESS DUST LIP 26X37X7 MM
93
SEAL RING , Replaced By: A0139974147
94
LOCK RING
95
SEAL RING ON DRIVE END
95
SEAL RING , Replaced By: A0089979447
95
SEAL RING , Replaced By: A0059973747
96
BOOT ON DRIVE END
105
STEERG. WORM SECTOR SHAFT
105
STEERG. WORM SECTOR SHAFT
105
STEERG. WORM SECTOR SHAFT
106
SPACER WASHER *** 2.5 MM
106
SPACER WASHER2.6 MM
106
SPACER WASHER2.7 MM
106
SPACER WASHER2,8 MM
106
SPACER WASHER2.9 MM
106
SPACER WASHER3.0 MM
106
SPACER WASHER3,1 MM
106
SPACER WASHER3.2 MM
106
SPACER WASHER3.3 MM
106
SPACER WASHER3,4 MM
107
SEAL RING40X50X5 MM
108
SPACER RING
109
SEALING CORD *** 52X3 MM
110
SEALING CORD59X3 MM
111
FLANGE
111
FLANGE
112
NEEDLE BEARING40X50X20 MM
112
NEEDLE BEARING
113
SEAL RING
115
SPRING WASHER , Replaced By: N000137008212
116
SCREW
120
NUT
121
LINE
121
LINE , FROM STEERING 27219
122
SEALING CORD
123
HOLLOW SCREW
124
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
125
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
130
PITMAN ARM
130
PITMAN ARM
130
PITMAN ARM
130
PITMAN ARM
999
VALVE
999
BEARING RING
999
RIVET , Replaced By: N910005012002
999
RIVET , Replaced By: N910005012020
999
NUT , Replaced By: N000934012013
999
LOCK REVERSE IDLER SHAFT
999
SEAL CONE LINE CONNECTION
999
SEAL RING44X59.8X7.5 MM, TO TYPE NOS.7419 955 427,7419 955 428
999
GROMMET FOR PASSAGE OF LINE
999
BASE , Replaced By: A3142030084
999
CLAMP DELIVERY AND SUCTION LINES TO BRACKET
999
SHIM BRACKET TO LEFT SIDE MEMBER
999
WASHER STEERING TO BEARING BRACKET
999
SCREW
999
PEDAL PLATE
999
CLAMP LOW PRESSURE OIL LINE TO ENGINE FRONT CROSS MEMBER,14011500
999
PEDAL PLATE
999
PEDAL PLATE CLUTCH
999
STEERING ARM RIGHT, 323 FROM CHASSIS 000001,328 FROM CHASSIS 004685
999
STEERING BOX ASSEMBLY LESS PITMAN ARM
999
STEERING BOX ASSEMBLY LESS PITMAN ARM
999
STEERING BOX ASSEMBLY LESS PITMAN ARM
999
STEERING BOX ASSEMBLY LESS PITMAN ARM
999
SCREW
999
SCREW
999
SCREW
999
FRONT AXLE , ONLY FOR USE WITH SA 15750
999
FRONT AXLE , ONLY FOR USE WITH SA 15750
999
FRONT AXLE , ONLY FOR USE WITH SA 15750
999
FRONT AXLE , ONLY FOR USE WITH SA 15750
999
FRONT AXLE , ONLY FOR USE WITH SA 15752
999
FRONT AXLE , ONLY FOR USE WITH SA 15752
999
FRONT AXLE , ONLY FOR USE WITH SA 15752
999
FRONT AXLE , ONLY FOR USE WITH SA 15752
999
STEERING ARM ,011050-K69725
999
STEERING ARM RIGHT
999
STEERING ARM LEFT
999
STEERING ARM RIGHT
999
STEERING BOX ASSEMBLY , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A3274606501
999
STEERING BOX ASSEMBLY , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3094601501
999
NUT STEERING TO STEERING BRACKET TO 327 990 01 14,322 990 09 14
999
SCREW STEERING TO STEERING BRACKET
999
NUT
999
STEERING ARM LEFT,011049
999
STEERING BOX ASSEMBLY , Replaced By: A3374601501
999
STEERING BOX ASSEMBLY , Replaced By: A3374601601
999
COVERING FOR HYDRAULIC STEERING
999
BOOT FOR HYDRAULIC STEERING
999
BRACKET OIL LINES
999
CLAMP PIPE LINE TO BRACKET
999
BEARING BRACKET STEERING AND PEDALS
999
BEARING BRACKET STEERING AND PEDALS
999
FRONT AXLE , 002073011049
999
FRONT AXLE
999
FRONT AXLE
999
FRONT AXLE
999
FRONT AXLE
999
FRONT AXLE WITH BRAKES
999
FRONT AXLE WITH BRAKES, FOR USE WITH SV 15752
999
FRONT AXLE , ONLY FOR USE WITH SA 15752
999
FRONT AXLE TRILEX WHEEL 7.0-20
999
FRONT AXLE WITH BRAKES, FOR USE WITH SV 15750
