Поз.
Артикул
Описание

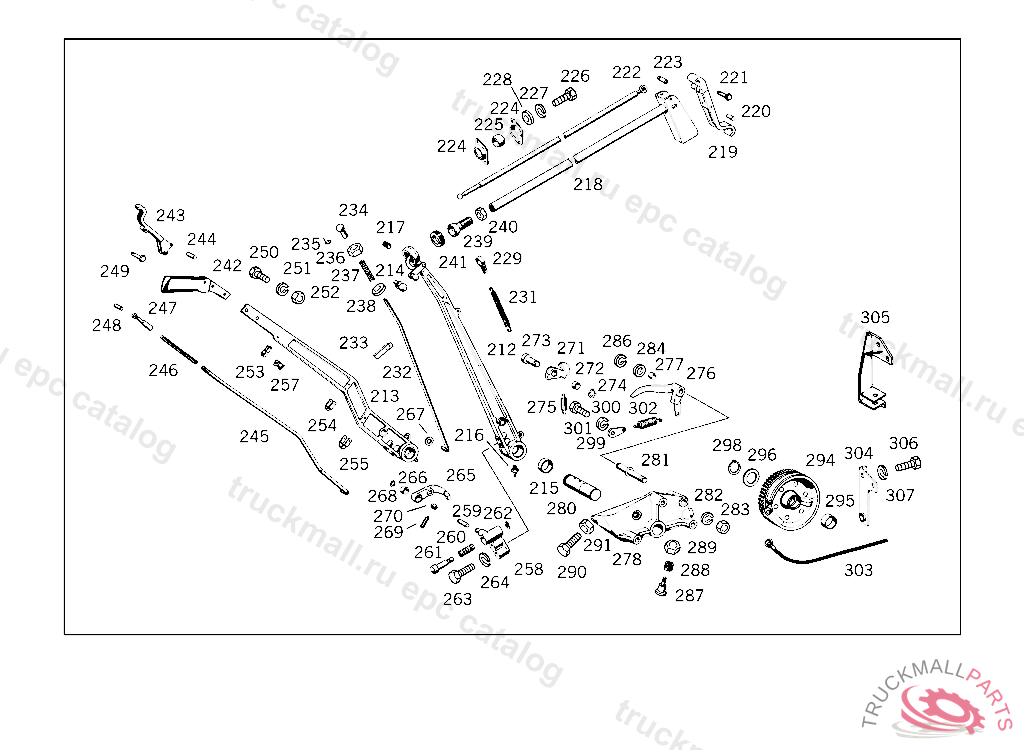

212
BRAKE LEVER
214
BALL PIVOT
215
BUSHING , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
216
GREASE NIPPLE
216
GREASE NIPPLE , Replaced By: N071412008102
217
BUSHING , 602130
218
PARKING BRAKE
219
PAWL ROD HANDLE , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
220
PIN , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
221
PIN
222
ROD
223
SCREW , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
224
GUIDE
225
GUIDE BALL , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
226
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
226
SCREW , Replaced By: N304017008016
227
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
228
WASHER EXHAUST MUFFLER TO STRAP
228
WASHER , Replaced By: N000125008443
229
CLAMP
231
SPRING
232
PAWL ROD
233
BRACKET
234
BALL SOCKET ROD TO BALL PIVOT
235
SECURING CLIP. CIRCLIP
236
NUT
237
SPRING
238
WASHER EXHAUST MUFFLER TO STRAP
238
WASHER , Replaced By: N000125008443
239
SPHERICAL PIECE
240
NUT , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
241
SPHERICAL PIECE , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
258
STOP
259
PIN
260
SPRING
261
PIN
262
SNAP RING
263
SCREW VALVE TO BRACKET
264
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
265
PAWL
266
BUSHING
266
BUSHING , Replaced By: A3179920101
267
WASHER EXHAUST MUFFLER TO STRAP
267
WASHER , Replaced By: N000125008443
268
LOCK RING , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB DISCONTINUED,PART IS NO LONGER REQUIRED
269
HEADLESS SETSCREW
270
NUT BALL PIVOT TO LEVER
271
PAWL
272
BUSHING
273
PIN
274
LOCK RING , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
275
SPRING , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
275
SPRING , Replaced By: A3529930610
276
PAWL
277
BUSHING
278
BEARING BRACKET
280
PIN , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
281
PIN
282
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
283
NUT RELEASE BEARING LUBRICATION
283
NUT , Replaced By: N308675014002
283
NUT , Replaced By: N308675014000
284
WASHER , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
286
LOCK RING , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
287
PIN
288
SPRING
289
NUT
290
SCREW REAR EXHAUST PIPE TO MUFFLER
291
NUT BRACKET TO SUPPORT AND TO END PIECE
294
CABLE PULLEY , Replaced By: A3224200193
295
BUSHING , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
296
WASHER AS REQUIRED 1.7MM, UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
298
LOCK RING P.T.O.
299
BRACKET
300
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
301
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
302
SPRING , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
302
SPRING , Replaced By: A3529930610
303
BRAKE CABLE , 002073
304
GUIDE , 002073
306
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
306
SCREW , Replaced By: N304017010028
307
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
SEAL RING
999
PROTECTIVE CAP , Replaced By: A0004217187
999
PROTECTIVE CAP ,5 962906
999
SPRING , Replaced By: A3444217090
999
PROTECTIVE CAP , Replaced By: A3454237087
999
HOHLSCHRAUBE FUR. HOLLOW SCREW MASTER CYLINDER,CONNECTION "2.1",4 338292
999
BREMSSCHLAUCHHALTER. LOCK , Replaced By: A0004280473
999
DISTRIBUTOR , TO TANDEM BRAKE MASTER CYLINDERS 001 430 51 01 AND 001 430 68 01
999
BRAKE HOSE
999
BRAKE HOSE , Replaced By: A0024280735
999
BRAKE HOSE , Replaced By: A0004280535
999
BRAKE HOSE
999
BRAKE HOSE , Replaced By: A0024280735
999
PIN
999
BRAKE LINE COUPLING , Replaced By: A0004292930
999
LINE , Replaced By: A0005516256
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVE CONEBOSCH
999
LINE , Replaced By: A0005516456
999
SHUT-OFF COCK , Replaced By: A0004291431
999
ADAPTER FITTING RELAY VALVE
999
COVERTO 000 429 48 30
999
COVERWABCO
999
SHUT-OFF COCK
999
SPRINGTO 000 429 16 31,4 940458
999
SPRINGTO 000 429 16 31,4 940458
999
AIR CLEANER
999
SEAL RINGTO 000 429 16 31,4 940458
999
KAPPENVENTIL. VALVETO 002 430 31 01,344 430 80 01
999
BOTTOM VALVE. VALVE , Replaced By: A0015861543
999
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
999
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
999
REPAIR KITKNORR
999
REPAIR KIT TRAILER CONTROL VALVE GRAU
999
BRAKE MASTER CYLINDER
999
REPAIR KIT SEAL RING BOSCH,209
999
CUPBOSCH
999
CUP
999
LOCK
999
DICHTRING. SEAL RING
999
VALVE , Replaced By: A3075530107
999
DIAPHRAGMTO 000 429 63 44
999
WASHER , Replaced By: A0004311176
999
SPRING RETAINERTO 002 430 27 01
999
DICHTSCHEIBE. SEAL RING
999
THREADED UNION
999
STRAINER , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
PROTECTIVE CAP BRAKE BOOSTER
999
WASHERTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
SCREW PLUG , Replaced By: A0004311756
999
VALVE , Replaced By: A0005862043
999
VALVE , Replaced By: A0005862043
999
VALVE , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
SEAL RINGTO 003 997 12 36
999
PRESSURE REGULATOR , 002072
999
VALVE , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
SCREW PLUG
999
WASHERTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
FILLER RINGTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
WASHER
999
WASHER , Replaced By: A0004312176
999
WASHER
999
BRAKE BOOSTER , Replaced By: A3444317014
999
PISTON
999
CUPTO 000 431 21 14,BOSCH, WITH BOSCH CHARACTERISTIC NUMBER 724
999
FILLER CAP , Replaced By: A0004315533
999
VALVE , 002073, Replaced By: A0004317906
999
SEAL RING ,4 208907
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
SEAL RING PRESSURE REGULATOR,4 208907
999
SPRING
999
STRAINER PRESSURE REGULATOR
999
PISTONTO 002 430 27 01
999
SPRINGTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
PROTECTIVE CAP , Replaced By: A0004311087
999
CUP , NO LONGER AVAILABLE INDIVIDUALLY
999
CUP , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
FILLER CAPTO 000 431 87 02
999
SPRING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
SPRING ,4 208907
999
SPRING ,4 208907
999
SPRING ,4 208907
999
SPRING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
RESERVOIR
999
RESERVOIR , Replaced By: A0004318702
999
VALVE , Replaced By: A0004320807
999
VALVE DRAIN, Replaced By: A0004322407
999
VALVE. DRAIN VALVE DRAIN
999
VALVE DRAIN, Replaced By: A0004322107
999
NUTTO 000 429 16 30
999
VALVE PARTTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
VALVE DISCTO 000 429 48 30
999
GASKETTO 000 429 16 30
999
LINE , Replaced By: A3404204929
999
REPAIR KITTO 002 430 61 01
999
REPAIR KITTO 002 430 41 01
999
REPAIR KIT REAR BRAKE BOOSTER, ONLY APPLICABLE TO UNITS 000 431 32 14 AND 000431 31 14
999
REPAIR KIT WHEEL CYLINDER
999
REPAIR KITTEVES
999
REPAIR KITTO 000 429 14 31,5 116581
999
REPAIR KIT , Replaced By: A0015860943
999
REPAIR KIT
999
REPAIR KIT ,4 208907
999
VALVE
999
FILTER ELEMENT
999
VALVE
999
TIRE INFLATOR CYLINDER WITH AIR CLEANER
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
SEALING CORD59X3 MM
999
SEALING CORD SUCTION LINE TO OIL PUMP
999
SEALING CORD *** 52X3 MM
999
SEALING CORD12.3X2.4 MM,TO 000 997 39 36,49 36
999
SEALING CORD PRESSURE REGULATOR,4 208907
999
SEALING CORD PRESSURE REGULATOR,4 208907
999
SPRING
