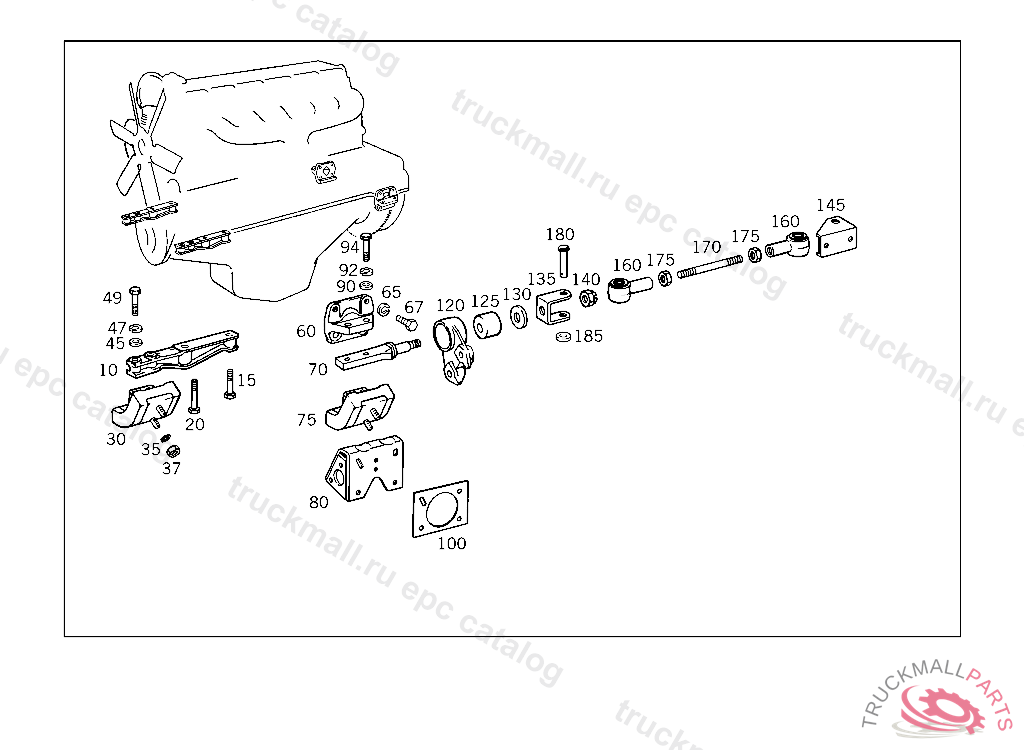

Поз.
Артикул
Описание
10
SUPPORTING ARM ENGINE FRONT SUSPENSION
15
SCREW SUPPORTING ARM TO ENGINE M 16X65
20
SCREW SUPPORT TO TRANSMISSION M 16X1.5X82
30
RUBBER MOUNTING
35
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
37
NUT BRACKET TO SIDE MEMBER,K 035196
37
NUT , Replaced By: N308673014001
49
SCREW RUBBER MOUNTING TO SUPPORTING ARM
60
ENGINE SUPPORT
65
LOCK WASHER FITTING TO BRACKET
67
SCREW RUBBER MOUNTING TO ENGINE M 12X35
67
SCREW , Replaced By: N304017012013
70
75
RUBBER MOUNTING
94
SCREW RUBBER MOUNTING TO SUPPORTING ARM
100
SHIM AS REQUIRED 1.50 MM, SEE ALSO GROUP 24
120
125
130
135
140
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
145
160
ROD END
170
175
NUT ROD TO TORSION BAR
180
185
WASHER RETAINING ROPE TO BEARING BRACKET, BOTTOM
999
BUSHING
999
BUSHING
999
LOCK
999
SHIM AS REQUIRED 2.00 MM, SEE ALSO GROUP 24
999
SHIM AS REQUIRED 2.50 MM, SEE ALSO GROUP 24
999
999
ENGINE SUPPORT LEFT, 000786 SEE ALSO GROUP 24
999
ENGINE SUPPORT RIGHT, 000786 SEE ALSO GROUP 24
999
SHIM ENGINE SUPPORT TO SIDE MEMBERS, 000786 SEE ALSO GROUP 24
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PIN
999
WASHER
999
NUT STRAP TO SUPPORT
999
NUT , Replaced By: N308673014001
999
SCREW FRONT SPRING FRONT BRACKET AND STEERING SUPPORT TO SIDE MEMBER M 12X55
999
SCREW BRAKE LINE COUPLING TO FRAME, 691209
999
SCREW , Replaced By: N308676014014
999
SCREW , Replaced By: N308676012012
999
SCREW , Replaced By: N308676012026
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET M 14X1.5X70
999
NUT BRACKET TO SIDE MEMBER
999
NUT , Replaced By: N910113014001
