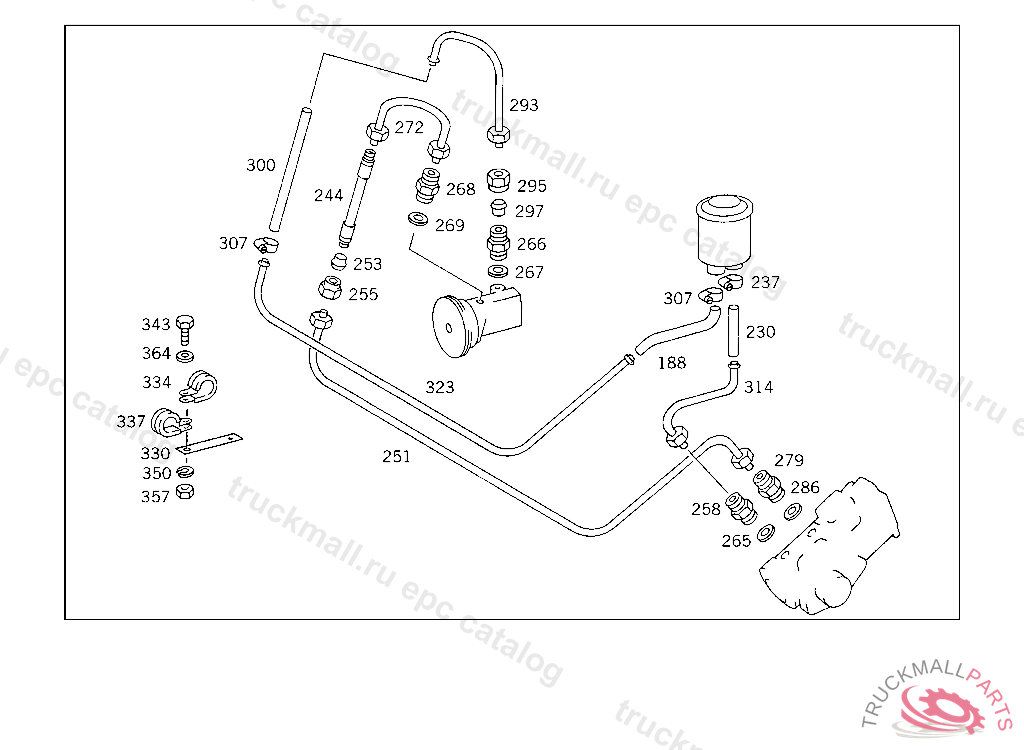

Поз.
Артикул
Описание
188
HOSE , Replaced By: A3859971582
230
HOSE FROM STEERING TO OIL TANK
237
CLAMP , Replaced By: N000000000667
237
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
244
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
244
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
244
HOSE , Replaced By: A0019972652
251
LINE , Replaced By: A3514607824
251
LINE , Replaced By: A3514667865
251
LINE FROM HIGH PRESSURE HOSE TO STEERING
253
GLAND , Replaced By: A0019901967
255
UNION NUT LINE CONNECTION, Replaced By: N000000006239
258
SCREW-IN FITTING RETURN LINE TO STEERING
265
SEAL RING VALVE TO VALVE,K 025179
266
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
267
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
268
SCREW-IN FITTING AT PUMP
269
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
272
LINE FROM PUMP TO HIGH PRESSURE HOSE
272
LINE , Replaced By: A3514607624
279
SCREW-IN FITTING AT PUMP
286
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
293
LINE FROM HOSE TO PUMP, EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: A 058453
293
LINE , Replaced By: A3514608424
295
UNION NUT LINE CONNECTION, Replaced By: N000000006243
297
GLAND , Replaced By: A0019901267
300
HOSE , Replaced By: A3859971582
307
CLAMP , Replaced By: N000000000667
307
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
314
LINE , Replaced By: A3514607724
314
LINE FROM STEERING TO HOSE
323
LINE , Replaced By: A3514668565
323
LINE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: A 058453
330
CLAMPING PIECE DELIVERY AND SUCTION LINES TO RADIATOR CONSOLE
334
CLAMP LINES TO BRACKET
337
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
343
SCREW COMPRESSED AIR ELBOW
350
LOCK WASHER
357
NUT LEVER TO SHIFTING SHAFT
364
WASHER , Replaced By: N000125008443
999
COVERTO 000 461 71 01, UP TO IDENT NO.: 414221,FROM IDENT-NO.: 414222 SEE SPARE PARTS 766.1
999
BOOT ON DRIVE END
999
HOUSING
999
NUT , Replaced By: N000937035000
999
SCREW STEERING TO STEERING BRACKET 128 MM
999
NUT STEERING TO STEERING BRACKET TO 327 990 01 14,322 990 09 14
999
SCREW STEERING TO STEERING BRACKET
999
PITMAN ARM
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
999
STEERING BRACKET
999
STEERING BOX ASSEMBLY
999
DRAG LINK , Replaced By: A3454608605
999
STEERING BOX ASSEMBLY
999
PITMAN ARM
999
STEERING SHAFT BOTTOM, 032,033,040,041: FROM CHASSIS 039640 032,033,040,041: UP TO CAB 1600091
999
BRACKET OIL TANK TO 000 466 45 02
999
CLAMP , Replaced By: A3609951201
999
CLAMP , Replaced By: N916016018202
999
TANK OIL
999
COTTER PIN6.3X63 MM
999
WIRE STEERING BOX ASSEMBLY TO STEERING SUPPORT 600 MM
999
NUT
