Mercedes A1154710079 - УПЛОТНЕНИЕ

E 200 210.235 TO MODELLJAHR CODE 809

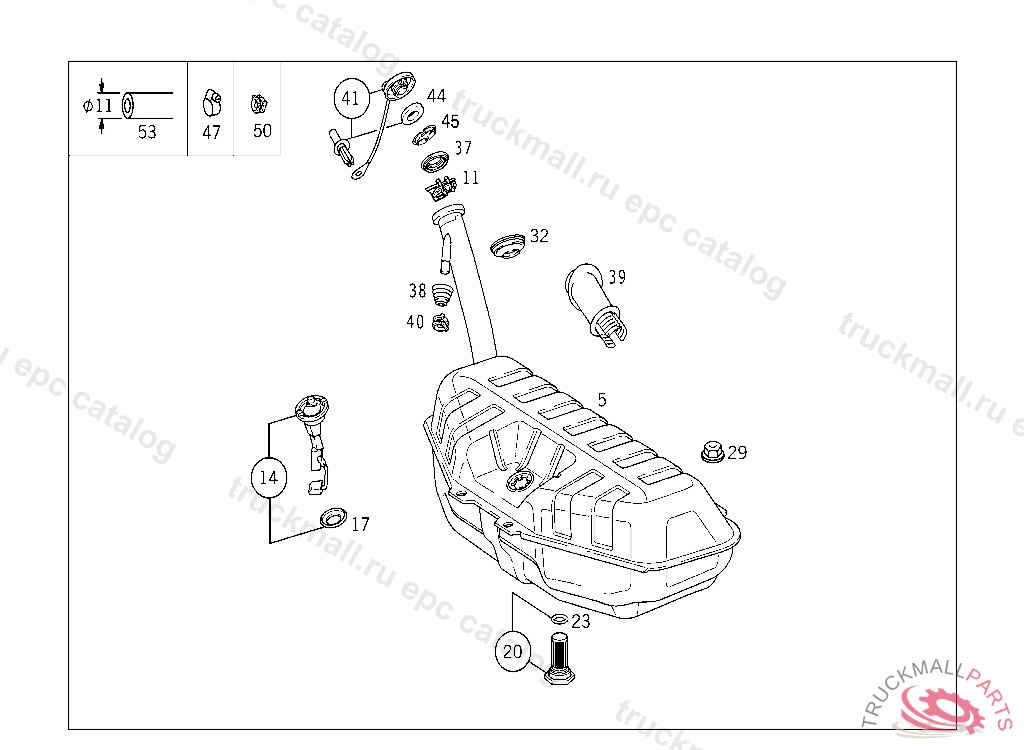

47 FUEL SYSTEM - 015 FUEL TANK WITH ATTACHMENT PARTS

Поз.
Артикул
Описание
5
A2104706401
FUEL TANK70 L, A 313879 X 00000108/97
5
A2104707001
FUEL TANK70 L
5
A2104704301
FUEL TANK ,A 313878, Replaced By: A2104706401, +001A2104765826
11
A1164700129
FUNNEL , Replaced By: A1694700029
11
A1694700029
FILLER NECK
14
A2105420517
SENDER UNIT , Replaced By: A2105421817
14
A2105421817
SENDER UNIT
17
A2104710079
SEAL RING , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
20
A1114700686
FUEL STRAINER
20
A2104700206
FUEL STRAINER , Replaced By: A1114700686
23
A1109970145
SEAL RING
29
A0009903350
NUT , Replaced By: N913002008004
32
A2019971381
GROMMET
37
A1409973981
GROMMET FILLER NECK
41
A2204700005
FILLER CAP
41
A1404700005
FILLER CAP CENTRAL LOCKING MECHANISM TO 124 470 08 04 / 09 04
44
A1154710079
SEAL RING
