Поз.
Артикул
Описание

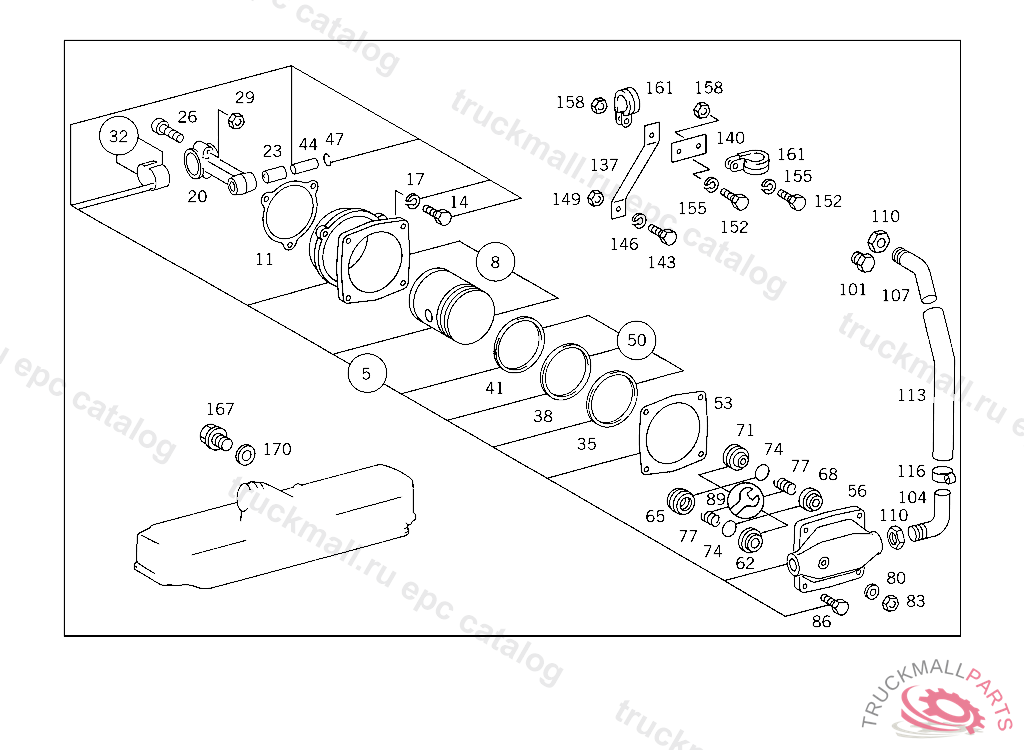

5
COMPRESSOR (ASSEMBLY KIT),FOUR-HOLE MOUNTING 94 MM
5
COMPRESSOR ASSEMBLY KIT
8
CYLINDER LINER WITH PISTON,082678
8
CYLINDER LINER WITH PISTON 94 MM
11
GASKET AS REQUIRED 0.30 MM,085523
11
GASKET AS REQUIRED 0.50 MM,085523
11
GASKET , Replaced By: A3211310080
11
GASKET , Replaced By: A3211310180
14
SCREW , Replaced By: N910105008005
14
SCREW , Replaced By: A3529900604
14
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
14
SCREW BRACKET TO INTAKE MANIFOLD
17
LOCK WASHER
20
CONNECTING ROD
20
CONNECTING ROD ,082679
20
CONNECTING ROD LIFTING PIN WIDTH,28 MM,LENGTH,92 MM, UP TO ENGINE 283201 YEAR OF MANUFACTURE 1978
23
BUSHING ,082679
23
BUSHING ,082678
26
SCREW CONNECTING ROD COVER TO CONNECTING ROD, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
29
NUT
32
BEARING SHELL PARTS KIT,REPAIR SIZE III 31.25 MM, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
32
BEARING SHELL REPAIR SIZE III 31.25 MM
32
BEARING SHELL CONNECTING ROD BEARING SHELLS,32.00 MM STANDARD SIZE,082679
32
BEARING SHELL CONNECTING ROD BEARING SHELLS,31.90 MM STANDARD SIZE I,082679
32
BEARING SHELL PARTS KIT,REPAIR SIZE I 31.75 MM, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
32
BEARING SHELL REPAIR SIZE I 31.75 MM
32
BEARING SHELL STANDARD,082678
32
BEARING SHELL PARTS KIT,REPAIR SIZE II 31.50 MM, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
32
BEARING SHELL STANDARD SIZE I 31.90 MM
32
BEARING SHELL REPAIR SIZE II 31.50 MM
32
REPAIR KIT , Replaced By: A3525860213
32
REPAIR KIT , Replaced By: A3525860313
32
REPAIR KIT , Replaced By: A3525860413
32
REPAIR KIT , Replaced By: A3525860513
32
REPAIR KIT , Replaced By: A3525860613
32
REPAIR KIT , Replaced By: A3521312033
32
REPAIR KIT , Replaced By: A3521312133
32
REPAIR KIT , Replaced By: A3521312233
32
REPAIR KIT , Replaced By: A3521312333
32
REPAIR KIT , Replaced By: A3521312433
32
REPAIR KIT , Replaced By: A3521312533
32
REPAIR KIT , Replaced By: A3521312633
32
REPAIR KIT , Replaced By: A3521312733
32
REPAIR KIT , Replaced By: A3521312833
32
REPAIR KIT , Replaced By: A3521312933
35
PISTON RING , Replaced By: A3521310114
35
PISTON RING , Replaced By: A0001317711
38
PISTON RING , Replaced By: A0001317711
38
PISTON RING , Replaced By: A3521311111
41
PISTON RING PARTS KIT,STANDARD 77.000 MM, TO 321 130 00 17
41
PISTON RING , Replaced By: A0001317711
41
PISTON RING , Replaced By: A3521310111
44
PISTON PIN
47
LOCK RING
50
PISTON RING PARTS KIT,STANDARD 77.000 MM, TO 321 130 00 17
50
PISTON RING PARTS KIT, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
50
PISTON RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0001319211
50
REPAIR KIT , Replaced By: A0001317711
50
PISTON RING STANDARD 77.000 MM, TO 344 130 14 17
53
GASKET AS REQUIRED 0.90 MM
53
GASKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 082678, Replaced By: A3521310480
53
GASKET
53
GASKET , Replaced By: A3661310280
53
GASKET , Replaced By: A3661310180
53
GASKET AS REQUIRED 0.65 MM
53
GASKET
53
GASKET
56
CYLINDER HEAD
56
CYLINDER HEAD
56
CYLINDER HEAD
62
SPRING CASE
65
VALVE DISC
68
VALVE DISC
71
VALVE DISC
71
VALVE DISC
74
WASHER
77
SPRING
80
SEAL RING
83
NUT PRESSURE VALVE TO CYLINDER HEAD
83
NUT PRESSURE VALVE TO CYLINDER HEAD
83
NUT PRESSURE VALVE TO CYLINDER HEAD
86
SCREW BRACKET TO CONSOLE M 8X25
86
SCREW BEARING BRACKET TO CAB M 8X30
89
REPAIR KIT AIR COMPRESSOR CYLINDER HEAD
89
REPAIR KIT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 082678, Replaced By: A3521300020
104
INTAKE PIPE , Replaced By: A3521302801
104
INTAKE PIPE FROM CYLINDER HEAD COVER TO AIR COMPRESSOR
110
NUT INTERMEDIATE SPEED STOP
113
HOSE , Replaced By: N900271015037
113
HOSE HEAT EXCHANGER 18X25X700
116
CLAMP , Replaced By: N000000000667
116
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
137
BRACKET GUIDE TUBE
140
BRACKET AIR COMPRESSOR INTAKE PIPE TO CYLINDER HEAD COVER, 943,FROM ENGINE 003074
143
SCREW CLAMP TO BRACKET AND TO PIPE
143
BOLT. SCREW QUICK-RELEASE VALVE TO BRACKET
146
LOCK WASHER
149
NUT TAIL LAMP TO BRACKET
152
SCREW OIL TANK TO BRACKET
152
SCREW BATTERY CABLE TO CAB CROSS MEMBER M 6X22,776251
155
LOCK WASHER RESISTOR
158
NUT BALL PIVOT TO LEVER
161
CLAMP HOSE TO FLANGE AND TO VALVE
167
SCREW PLUG AT TANK
167
SCREW PLUG RELAY VALVE,CONNECTIONS: "23"
170
SEAL RING POWER STEERING PUMP
999
PISTON , Replaced By: A3441301417
999
PISTON77,00 MM
