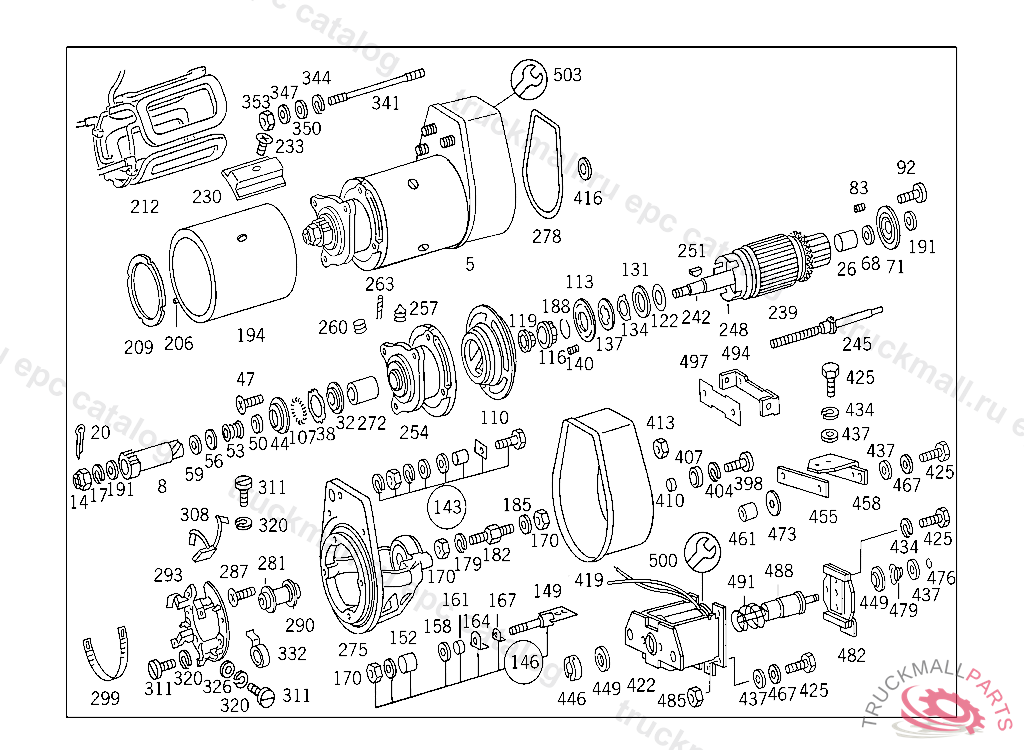

Поз.
Артикул
Описание
5
STARTING MOTOR
5
STARTING MOTOR
5
STARTING MOTOR
5
STARTING MOTORFA. BOSCH
5
STARTING MOTORNASHVILLE
5
STARTING MOTOR , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE, Replaced By: A0031517301
5
STARTING MOTOR , Replaced By: A0031518701
5
STARTING MOTORFA. BOSCH
5
STARTING MOTOR , Replaced By: A0041515801
5
STARTING MOTOR , Replaced By: H990001510301
5
STARTING MOTOR , Replaced By: A3411517301
8
PINION
8
PINION
8
PINION
8
PINIONTO 343 151 71 01
8
PINION
8
PINIONTO 003 151 04 01/74 01
14
NUTTO 000 151 33 01,001 151 41 01,
14
NUT
14
NUT
14
NUT
14
NUT
14
NUT , Replaced By: A0001510072
17
THRUST WASHER , Replaced By: A0009900247
17
LOCK WASHER
20
LOCK
20
LOCK
26
BUSHING STARTER PINION TO 004 151 58 01/003 151 87 01
26
BUSHING
26
BUSHING STARTER PINION TO 003 151 04 01/74 01
26
BUSHING
26
BUSHING
26
BUSHING
26
BUSHING
26
BUSHING DRIVE END BEARING
32
FLANGE ,002753
32
FLANGE
32
FLANGE
38
LOCK PLATE
38
WASHER
38
SPACER WASHER
44
COVER
44
COVER
47
SCREW
47
SCREW , Replaced By: A3401517071
50
SPACER RING
50
BUSHING
53
SPRING
53
SPRING
56
WASHER
56
WASHER
59
SEAL RING
59
SPACER WASHER
59
WASHER , Replaced By: A0001510060
59
SEAL RING
59
SEAL RINGTO 001 151 36 01,001 151 38 01
68
SPACER WASHER
68
SEAL RING
68
SEAL RING
71
PLATE
71
PLATE
71
COVERTO 343 151 71 01, USED WITH 343 151 70 01 STARTING MOTOR WITH BOSCH NO.9 000 083 027 USED WITH 343 151 71 01 STARTING MOTOR WITH BOSCH NO.9 000 083 028
71
PLATE
71
BEARINGTO 343 151 71 01
71
PLATE , Replaced By: A3401517017
71
COVER
83
THREADED PIN
92
SCREW
92
SCREW , Replaced By: A3401517071
92
SCREW
107
SPRING
107
SPRING
110
COUPLING
113
COUPLING PART
116
NUT
119
COUPLING PART
122
THRUST WASHER
122
THRUST WASHER
122
SPACER WASHER
122
SPACER WASHER
131
PLATE
131
SPACER WASHER0.10 MM
131
SPACER WASHER0.15 MM
131
SPACER WASHER0.10 MM
131
SPACER WASHER0.50 MM
131
SPACER WASHER , Replaced By: A3411517852
131
SPACER WASHER0.20 MM
134
COUPLING PART
137
COUPLING PART
137
LOCK PLATE
140
SPRING
143
MOUNTING MATERIAL
146
MOUNTING MATERIAL
149
THREADED PIN
149
SCREW
152
BUSHING
152
BUSHING
158
SPACER WASHER
161
BUSHING
164
INSULATION
167
SPACER WASHER
170
NUT
170
NUT , Replaced By: A0019902751
170
NUT
170
NUT
170
NUT
179
LOCK WASHER , Replaced By: N000127010202
179
THRUST WASHER , Replaced By: A0009902047
182
SCREW
182
SCREW
185
THRUST WASHER
185
THRUST WASHER
188
SNAP RING
191
SPACER WASHER
191
SPACER WASHER
191
SPACER WASHER
191
SPACER WASHER
191
SPACER WASHER
191
SPACER WASHER
191
SPACER WASHER ,002753
191
SPACER WASHER
191
SPACER WASHER
191
SPACER WASHER
191
SPACER WASHER
191
SPACER WASHER
191
SPACER WASHER
191
SPACER WASHER
194
FRAME
194
BEARING HOUSING
206
PIN
206
PIN
209
WASHER
209
GROOVED RING
212
EXCITER COIL
212
EXCITER COIL
212
EXCITER COILTO 003 151 87 01
212
PRIMARY WINDING
212
EXCITER COILTO 343 151 71 01
212
EXCITER COIL , Replaced By: A0001510855
212
EXCITER COIL
212
EXCITER COIL
212
SECONDARY WINDING
230
MAGNET
233
SCREW
233
SCREW
233
SCREW , Replaced By: A0009909030
233
SCREWTO 004 151 58 01
233
SCREWTO 343 151 71 01
233
SCREW , Replaced By: A0009903430
233
THREADED PIN
239
ARMATURE , Replaced By: A0001515115
239
ARMATURETO 004 151 58 01
239
ARMATURETO 343 151 71 01
239
ARMATURE
239
ARMATURE
239
ARMATURE
242
SHAFT
245
PIN
248
INTERMEDIATE PIECE
248
INTERMEDIATE PIECE
251
LOCK
251
WOODRUFF KEY
254
COVER
254
COVER
257
SCREW
257
THREADED PIN
260
SPRING ,002753
263
FILTER
263
FILTER
263
GREASE NIPPLE
263
GREASE NIPPLE
272
BUSHING
272
BUSHINGTO 004 151 58 01/003 151 87 01
272
BUSHINGTO 343 151 71 01
272
BUSHING
272
BUSHING
275
COVER
275
FLANGE
275
COVER
278
SEAL RING
281
GUIDE BUSHING
281
PIN
287
SCREW ,002753
290
SPACER WASHER
290
SPACER WASHER
293
BRUSH HOLDER
293
BRACKETTO 343 151 71 01, USED WITH 343 151 70 01 STARTING MOTOR WITH BOSCH NO.9 000 083 027 USED WITH 343 151 71 01 STARTING MOTOR WITH BOSCH NO.9 000 083 028
293
BRACKET , Replaced By: A0001500373
293
PLATE , Replaced By: A3401517117
293
PLATE
293
BRACKETTO 343 151 71 01
299
CONTACT BRIDGE
299
CONTACT BRIDGE
308
CARBON BRUSH SET
308
CARBON BRUSH SETTO 004 151 58 01/003 151 87 01
308
CARBON BRUSH SETTO 003 151 14 01
308
CARBON BRUSH SETTO 343 151 71 01
308
CARBON BRUSH SET , Replaced By: A0011512014
308
CARBON BRUSH SETTO 343 151 71 01, USED WITH 343 151 70 01 STARTING MOTOR WITH BOSCH NO.9 000 083 027 USED WITH 343 151 71 01 STARTING MOTOR WITH BOSCH NO.9 000 083 028
308
CARBON BRUSH SET
