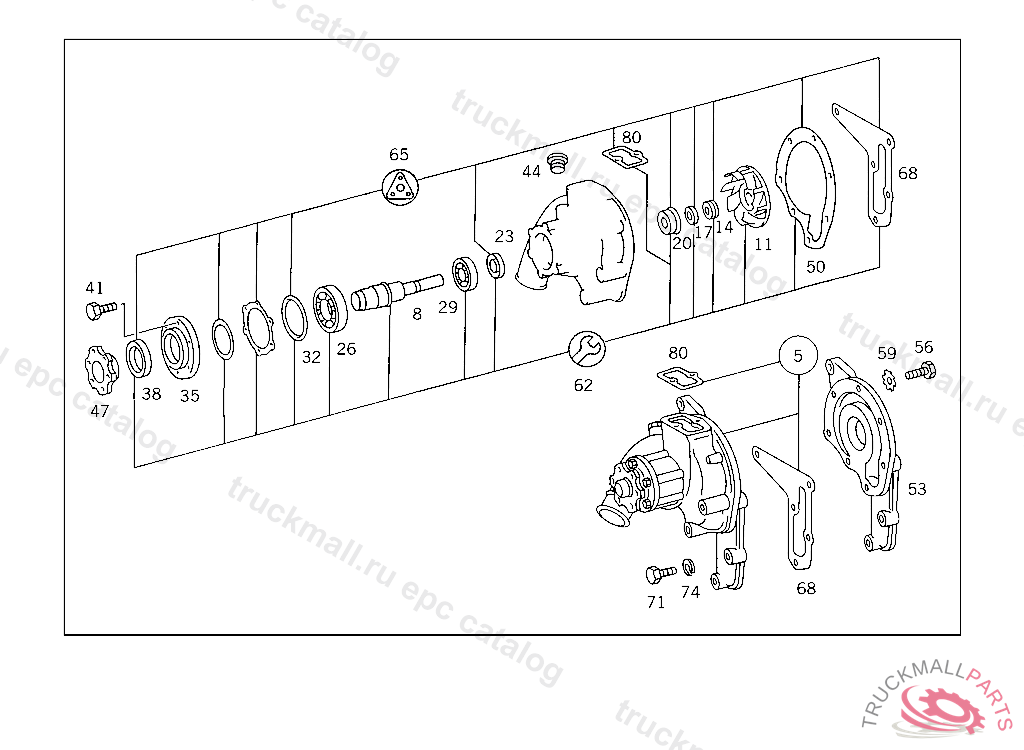

Поз.
Артикул
Описание
5
WATER PUMP WITH GASKET
5
WATER PUMP , Replaced By: A3522009401
8
SHAFT , Replaced By: A3662010205
8
SHAFT , Replaced By: A3662010105
8
SHAFT
11
IMPELLER
14
THRUST RINGTO 000 201 66 19/72 19
14
THRUST RING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0002017119
14
THRUST RING , Replaced By: A0002010463
17
BOOTTO 000 201 66 19,000 201 72 19
20
SEAL WITH THRUST RING AND BOOT
20
SEAL , Replaced By: A0012012619
20
SEAL , Replaced By: A0012011919
20
SEAL , Replaced By: A0012011919
20
SEAL , Replaced By: A0012011819
20
SEAL , Replaced By: A0012011719
20
SEAL , Replaced By: A0002019219
20
SEAL , Replaced By: A0002016719
20
SEAL , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0002018019
20
SEAL , Replaced By: A0002015719
20
SEAL , Replaced By: A0002017219
20
SEAL , Replaced By: A0002019919
20
SEAL , Replaced By: A0002016619
20
SEAL , Replaced By: A0002016119
20
SEAL , Replaced By: A0002013619
20
SEAL , Replaced By: A0002013719
23
SEAL RING
23
SEAL RING
23
SEAL RING ,A 057418
26
GROOVED BALL BEARING
29
GROOVED BALL BEARING
32
SEAL RING WATER PUMP
35
SEAL HOLDER
35
SEAL HOLDER
35
SEAL HOLDER , Replaced By: A3522010258
35
SEAL HOLDER , Replaced By: A3522010258
38
SEAL RING
38
SEAL RING
41
SCREW LEVER TO THROTTLE VALVE SHAFT
44
SCREW PLUG STABILIZER
44
GREASE NIPPLE , Replaced By: N000906010000
44
GREASE NIPPLE
47
HUB
47
FLANGE
50
GASKET WATER PUMP TO CYLINDER CRANKCASE
50
GASKET , Replaced By: A3642010280
53
COVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 740566, Replaced By: A3522011803
56
SCREW WATER PUMP COVER TO WATER PUMP HOUSING M 8X28
59
LOCK PLATE , Replaced By: A0000710473
62
IMPELLER REPAIR KIT
62
REPAIR KIT , Replaced By: A3522001304
65
GASKET KIT , Replaced By: A3442000201
65
REPAIR KIT , Replaced By: A3522000560
68
GASKET , Replaced By: A3522011680
68
GASKET WATER PUMP COVER
71
SCREW , Replaced By: N304017010047
71
SCREW VALVE TO BRACKET, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
74
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
80
GASKET , Replaced By: A3522032380
80
GASKET1 MM
