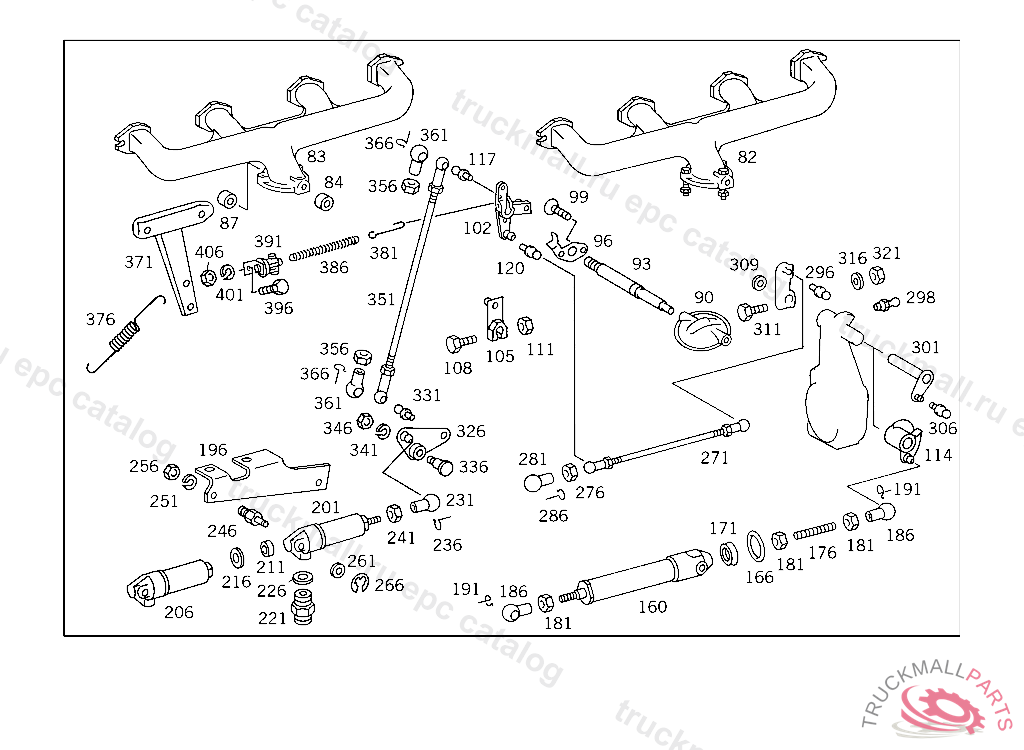

Поз.
Артикул
Описание
82
EXHAUST MANIFOLD WITH THROTTLE VALVE
82
EXHAUST MANIFOLD
82
EXHAUST MANIFOLD
83
EXHAUST MANIFOLD WITH BUSHINGS
84
BUSHING *** 13 MM
87
BUSHING MOUNTING MATERIAL, TO BE ADAPTED DURING ASSEMBLY
90
THROTTLE VALVE , Replaced By: A3521442213
93
SHAFT EXHAUST-BRAKE THROTTLE VALVE
96
STOP
99
SCREW
99
SCREW STOP TO EXHAUST MANIFOLD
102
LEVER THROTTLE VALVE
102
LEVER , Replaced By: A3521401325
117
BALL PIVOT
120
BALL PIVOT , Replaced By: A3129910120
120
BALL PIVOT
120
BALL PIVOT LEVER
196
BRACKET EXHAUST BRAKE COMPRESSED AIR CYLINDER
201
CYLINDER COMPRESSED AIR CYLINDER
206
HOUSING
211
SEAL RING
216
WASHER
221
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
226
SEAL RING
231
BALL SOCKET ROD TO BALL PIVOT
236
SECURING CLIP. CIRCLIP
241
NUT STEP TO APPARATUS SUPPORT
246
PIN COMPRESSED AIR CYLINDER TO BRACKET
251
LOCK WASHER , Replaced By: N912004010102
256
NUT BRACKET TO RETARDER
261
WASHER TRAILER PLUG SOCKET TO BRACKET
266
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
271
ROD , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
276
NUT BALL PIVOT TO LEVER
281
BALL SOCKET CONTROL
286
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
296
BALL PIVOT , Replaced By: A3129910120
301
INTERMEDIATE SHAFT
309
WASHER RAIL TO SUBSTRUCTURE
311
HEX. HEAD. SCREW LEVER TO SHIFTING SHAFT
316
WASHER , Replaced By: N000125008443
321
NUT LEVER TO SHIFTING SHAFT
326
LEVER EXHAUST BRAKE INTERMEDIATE LEVER
331
BALL PIVOT
336
PIN LEVER TO BRACKET
341
LOCK WASHER , Replaced By: N912004010102
346
NUT BRACKET TO RETARDER
351
ROD CONNECTOR TO EXHAUST MANIFOLD
356
NUT ,B 884219
361
BALL SOCKET ROD TO BALL PIVOT
366
SECURING CLIP. CIRCLIP
999
LEVER LEVER TO INTERMEDIATE SHAFT
