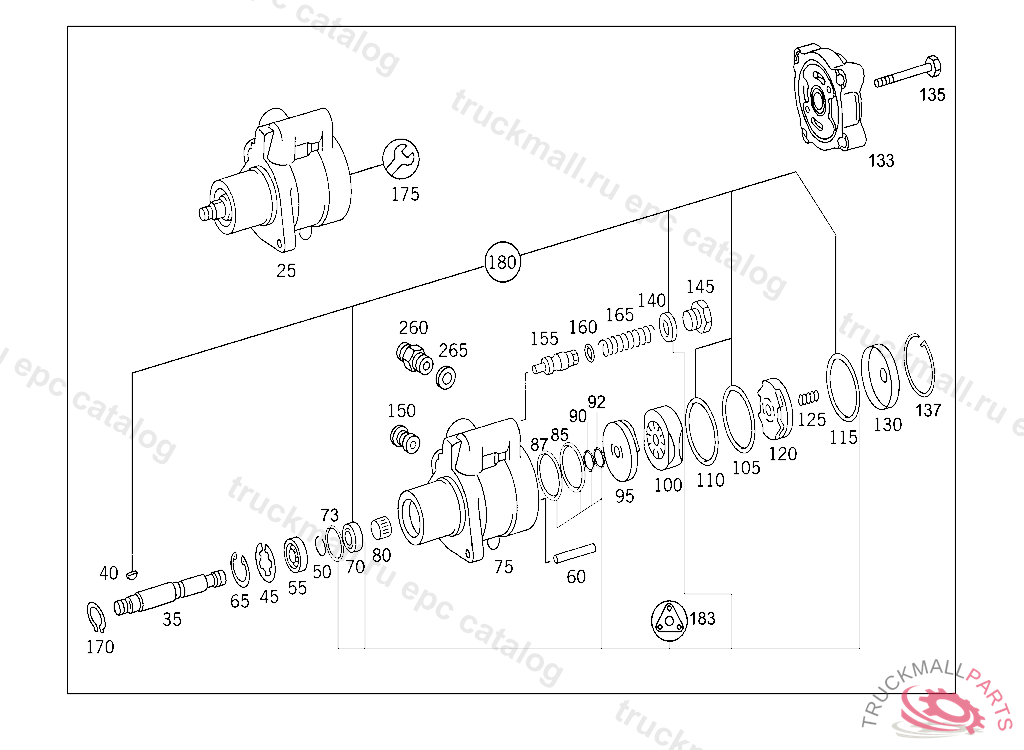

Поз.
Артикул
Описание
25
HYDRAULIC PUMP
25
HYDRAULIC PUMP
25
HYDRAULIC PUMP
25
HYDRAULIC PUMP
25
HYDRAULIC PUMP , Replaced By: A3744667101
35
DRIVE SHAFTTO 476 460 70 80
35
DRIVE SHAFT
35
DRIVE SHAFT
40
KEY
40
KEY , Replaced By: A0009912568
45
LOCK RING
50
SNAP RINGTO 374 466 71 01
55
BALL BEARING
55
BALL BEARING
55
BALL BEARING , Replaced By: A0049810925
55
BALL BEARING , Replaced By: A0049819625
60
DOWEL PINTO 001 466 77 01
60
DOWEL PINTO 374 466 71 01
60
ROLLERTO 476 460 70 80
65
SNAP RINGTO 374 466 71 01
65
SNAP RING
70
SEAL RINGTO 476 460 70 80
70
SEAL RING
70
SEAL RING , Replaced By: A0005862746
73
SEAL RING TO A 376 460 80 80
75
HOUSING
80
NEEDLE BEARING , Replaced By: A0059810310
80
NEEDLE BEARING
80
NEEDLE BEARING , Replaced By: A0149818010
85
SEAL RINGTO 000 460 26 80
85
SEAL RINGTO 476 460 70 80
87
SEAL RINGTO 476 460 70 80
90
SEAL RINGTO 476 460 70 80
90
SEAL RINGTO 000 553 23 01,000 553 37 01,,4 250876
92
SEAL RINGTO 476 460 70 80
95
COVER
95
COVERTO 476 460 70 80
95
COVER , Replaced By: A0004664305
95
COVER , Replaced By: A0004667105
100
ROTOR SETTO 476 460 70 80, Replaced By: A0004667521
100
ROTOR F VANE-TYPE PUMPTO 476 460 70 80
100
ROTOR SET (PARTS KT),ROTOR TO 374 466 71 01
100
SET OF ROTORS
105
SEAL RINGTO 000 460 23 80
110
SPACER RING , Replaced By: A0004661151
115
SEAL RING
115
SEAL RING
115
SEAL RINGTO 476 460 70 80
120
COVER , Replaced By: A0004663505
120
COVER , Replaced By: A0004667205
120
COVER , Replaced By: A0004668005
120
COVERTO 374 466 71 01
120
COVERTO 000 460 23 80
120
COVER
125
SPRINGTO 000 460 23 80
125
SPRING , Replaced By: A0059934201
130
COVER , Replaced By: A0004666505
130
COVERTO 000 460 23 80
130
COVER
133
COVERTO 476 460 70 80
135
SCREW PROPELLER SHAFT TO COUPLING FLANGE
137
SNAP RINGTO 000 460 23 80
140
SEAL RINGTO 476 460 70 80
140
SEAL RING LINE CONNECTION
145
SCREW PLUGTO 000 460 23 80
145
SCREW PLUG TO A 376 460 80 80
150
CARTRIDGE
150
CARTRIDGETO 374 466 71 01
150
NON-RETURN VALVETO 376 460 80 80
150
CARTRIDGE , Replaced By: A0004663584
155
PISTON , Replaced By: A0004664583
155
PISTON , Replaced By: A0004660483
155
PISTONTO 374 460 80 80
155
PISTON
155
PISTONTO 374 466 71 01
160
SPACER WASHER0,1 MM, TO 476 460 70 80
160
SPACER WASHER0,05 MM, TO 476 460 70 80
160
SPACER WASHER0,2 MM, TO 476 460 70 80
160
SPACER WASHER1,4 MM, TO 476 460 70 80
160
SPACER WASHER0,5 MM, TO 476 460 70 80
160
SPACER WASHER0,90 MM, TO 374 466 71 01
160
SPACER WASHER0,7 MM, TO 476 460 70 80
165
SPRING
165
SPRINGTO 601 466 01 01
170
LOCK RING
175
REPAIR KIT
175
REPAIR KIT (GASKET KIT),POWER STEERING PUMP TO 001 466 19 01/27 01
180
GASKET (GASKET KIT),POWER STEERING PUMP TO 374 466 71 01
183
GASKET KIT POWER STEERING PUMP TO 476 460 70 80
260
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
260
SCREW-IN FITTING OIL LINE CONNECTION
265
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
265
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
999
HOSE DELIVERY LINE TO PUMP
999
BRACKET FUEL FILTER
999
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I,B 837037D 034670
999
LINE FROM OIL TANK TO HYDRAULIC PUMP,D 087895
999
CONNECTOR LINE TO OIL PUMP
999
SEAL RING VALVE TO VALVE,K 025179
