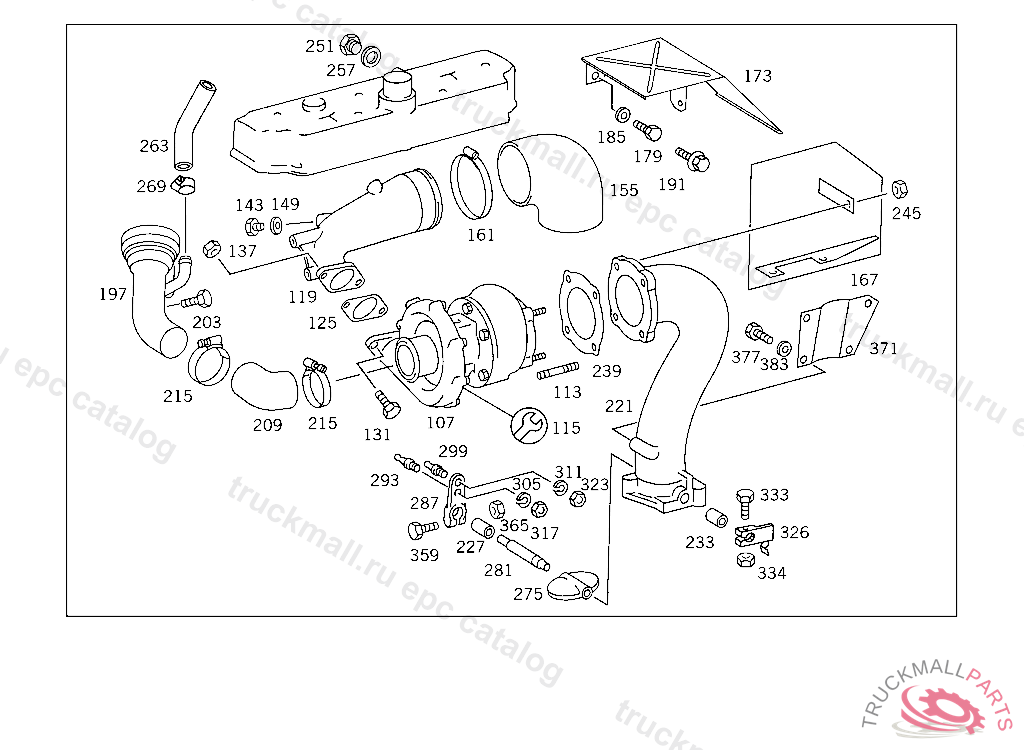

Поз.
Артикул
Описание
107
TURBOCHARGER , Replaced By: A3520964499
107
TURBOCHARGER , Replaced By: A3520965799
107
TURBOCHARGER
107
TURBOCHARGER
107
TURBOCHARGER
113
SCREW , Replaced By: A0000960470
113
STUD MAKE AIRESEARCH
115
REPAIR KIT TURBOCHARGER MOVING PARTS,MAKE KKK TO 352 096 57 99
115
REPAIR KIT , Replaced By: A0000900080
115
REPAIR KIT TURBOCHARGER,MAKE KKK TO 352 096 57 99
119
ELBOW AIR
119
ELBOW , Replaced By: A3520986915, +001N007603012106, +001N007604012102
119
ELBOW , Replaced By: A3520987015, +001N000961010002, +001N007603010110
125
GASKET
131
SCREW POWER CYLINDER TO BEARING BRACKET
137
NUT LEVER TO SHIFTING SHAFT
143
SCREW TO MOUNT THE PROPELLER SHAFTS
149
SEAL RING RELAY VALVE,CONNECTION: "41"
155
HOSE
161
CLAMP , Replaced By: A3449979890
161
CLAMP. LOOM TIE90-110
167
SCREENING PLATE EXHAUST MANIFOLD
167
SCREENING PLATE , Replaced By: A3440907534
173
SCREENING PLATE , Replaced By: A3440907434, +002A0039905801
173
SCREENING PLATE FUEL LINE
179
SCREW 3/2-WAY VALVE TO BRACKET
185
WASHER FUSE TO FUSE BOX
191
SCREW TRAILER CONTROL VALVE TO BRACKET,4 940459
197
AIR INTAKE PIPE AIR INTAKE PIPE TO COMPRESSED AIR ELBOW,755354
203
HEX. HEAD. SCREW AIR INTAKE,755353
209
HOSE HOSE TO AIR INTAKE PIPE AND TO INTAKE PIPE SOCKET
215
LOOM TIE. CLAMP
215
CLAMP
221
ELBOW FLANGED ELBOW
227
BUSHING
233
BUSHING *** 13 MM
239
GASKET FLANGED ELBOW TO TURBOCHARGER
239
GASKET , Replaced By: A3520980980
245
NUT CONNECTING PIPE TO EXHAUST MANIFOLD
245
NUT
245
NUT REAR EXHAUST PIPE TO BRACKET
251
SCREW PLUG AT TANK
251
SCREW PLUG RELAY VALVE,CONNECTIONS: "23"
257
SEAL RING POWER STEERING PUMP
263
HOSE FROM HEAT EXCHANGER TO WATER PUMP,073289
269
LOOM TIE ELECTRIC CABLE MOUNTING
269
LOOM TIE , Replaced By: A0019978390
275
THROTTLE VALVE , EXHAUST STOCK OF OLD PART NUMBER FIRST, Replaced By: A3601440313
275
THROTTLE VALVE
281
SHAFT
287
LEVER , 344.963,991 ENGINE ONLY APPLICABLE TO COMPRESSED AIR OPERATED EXHAUST BRAKE
287
LEVER THROTTLE VALVE, EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 805185
287
LEVER , Replaced By: A3441407125
293
BALL PIVOT ,805185
299
BALL PIVOT ,805186
299
BALL PIVOT
299
BALL PIVOT , Replaced By: N071803013102
305
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
311
LOCK WASHER RAIL TO BATTERY SUPPORT
317
NUT
323
NUT LEVER TO SHIFTING SHAFT
326
LEVER , Replaced By: A3441407132
326
LEVER THROTTLE VALVE
326
LEVER
333
SCREW
334
NUT TAIL LAMP TO BRACKET
359
SCREW OVERLOAD PROTECTOR TO BRACKET
359
SCREW VALVE TO BRACKET
365
NUT TACHOGRAPH TO BRACKET
365
NUT
371
BRACKET
377
SCREW BRACKET TO SIDE MEMBER
383
WASHER GROUND CABLE
999
SEAL RING SWITCH TO CASE COVER
999
LOOM TIE , Replaced By: A3449978490
999
HOSE
999
FITTING OIL RETURN LINE TO EXHAUST GAS TURBOCHARGER
999
WASHER CONSOLE TO REAR CROSS MEMBER,5 751724
999
INTERMEDIATE SHAFT
999
BRACKET OIL-DELIVERY/OIL-RETURN LINES
999
OIL LINE RETURN
999
OIL LINE RETURN
999
BRACKET OIL DELIVERY LINE
999
THROTTLE VALVE
999
BUSHING MOUNTING MATERIAL, TO BE ADAPTED DURING ASSEMBLY
999
STOP
999
PIN
999
SHAFT
999
SPACER TUBE , 934 UP TO ENGINE 000779, 937 UP TO ENGINE 000183, 938 UP TO ENGINE 000375, 939 UP TO ENGINE 000994
999
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD AND TO RELEASE SPRING MOUNTING
999
CLAMPING PIECE CENTRAL
999
LEVER
999
LEVER , 934 UP TO ENGINE 000779, 937 UP TO ENGINE 000183, 938 UP TO ENGINE 000375, 939 UP TO ENGINE 000994
999
INTAKE PIPE FROM CYLINDER HEAD COVER TO AIR COMPRESSOR
999
BRACKET
999
HOSE
999
BANJO UNION
999
BRACKET
999
SCREENING PLATE EXHAUST MANIFOLD
999
SPRING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6769930010
999
CLAMPING PIECE
999
EXHAUST MANIFOLD , Replaced By: A3521400111
999
CLAMP COMPRESSED AIR LINE MOUNTING
999
INTERMEDIATE PIECE , Replaced By: A3521500744
999
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
999
CLAMP FLEXIBLE SHAFT
999
ROD END L.H. THREAD
999
ROD END R.H. THREAD
999
LEVER
999
SCREW
999
SCREW PLUG , Replaced By: N000908016000
999
LOCK
999
BALL PIVOT LEVER
999
REINFORCEMENT RING
999
CLAMP WIRE CABLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
NUT CONNECTING PIPE TO EXHAUST MANIFOLD
999
LOOM TIE
