Mercedes N304032005005 - Гайка M 5

E 200 KOMPRESSOR 210.245 FROM MODELLJAHR CODE 800

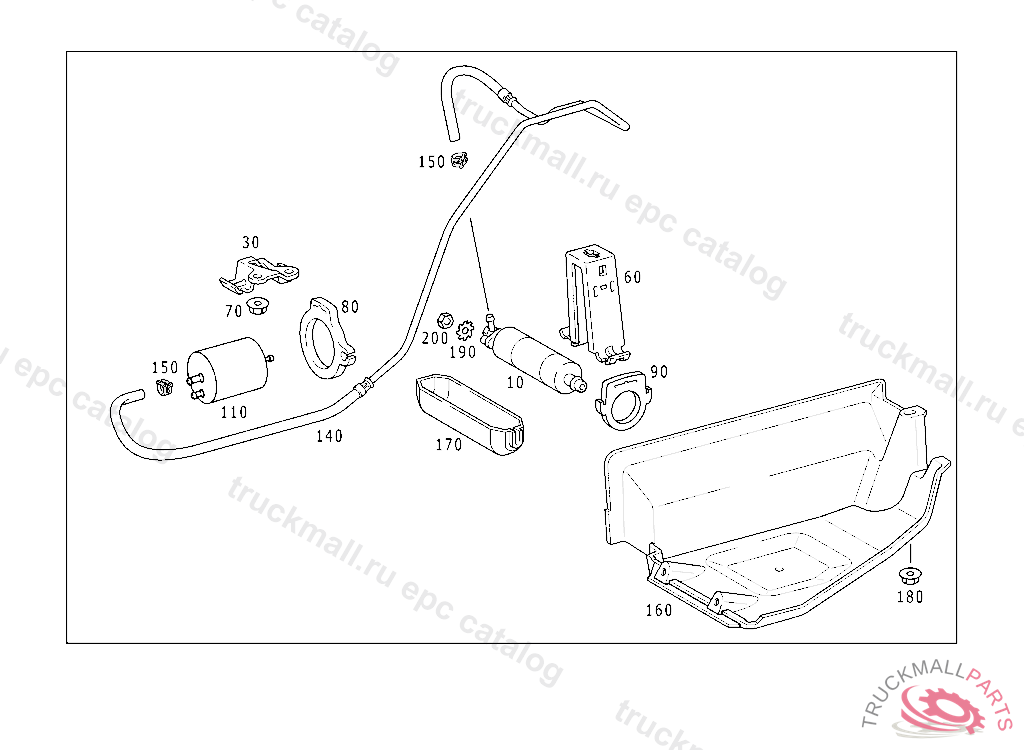

47 FUEL SYSTEM - 030 FUEL PUMP PACKAGE

Поз.
Артикул
Описание
10
A0004707894
FUEL PUMP ,F 110985
30
A2104780640
BRACKET
60
A2104780840
BRACKET
70
A0039900251
NUT COVERING TO CAB FIRE WALL
80
A2104780182
RUBBER RING
90
A2104780082
RUBBER RING FUEL PUMP
110
A0024772701
FUEL FILTER ,C 226336
110
A0024772801
FUEL FILTER ,C 226336
140
A2104702964
LINE FROM FUEL PUMP TO FILTER, B 21137320000803 X 04733520000908
150
A0069971890
HOSE CLAMP HOSE ATTACHMENT
160
A2104780237
PROTECTIVE COVER FUEL PUMP
170
A2104780137
PROTECTIVE COVER FUEL PUMP
180
A0039900251
NUT COVERING TO CAB FIRE WALL
190
N000000004450
TOOTHED WASHER ELECTRIC CABLE TO FUEL PUMP
190
N006797005131
TOOTHED WASHER
200
N304032005005
NUT IN CASE OF SUBSEQUENT INSTALLATION
200
N304032004002
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
