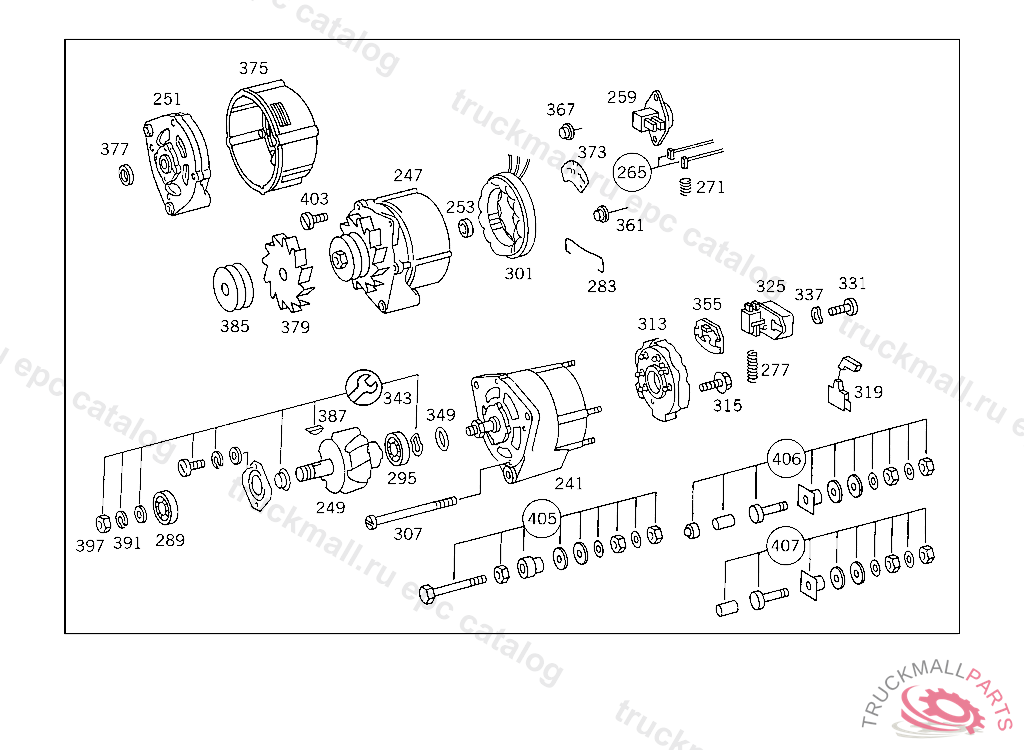

Поз.
Артикул
Описание
247
ALTERNATOR WITH PULLEY, LESS REGULATOR 12 V/55 A
247
ALTERNATOR , Replaced By: A3431507350
247
ALTERNATOR
249
ROTOR , Replaced By: A0001545715
249
ROTOR
249
ROTOR ,822956
251
CONNECTORTO 343 150 71 50
253
BEARINGTO 344 154 71 02
259
BRUSH HOLDERTO 344 154 71 02
265
CARBON BRUSH SETTO 344 154 71 02
265
CARBON BRUSH SETTO 007 154 27 02
265
CARBON BRUSH SETTO 343 150 73 50
265
REPAIR KITTO 344 154 71 02
265
CARBON BRUSH SET , Replaced By: A0001549514
271
SPRING , Replaced By: A0001541393
271
SPRINGTO 004 154 75 02
277
SPRING
283
SPRINGTO 344 154 71 02
289
BALL BEARING , Replaced By: A0059812225
289
BALL BEARINGTO 344 154 71 02
295
BALL BEARINGTO 344 154 71 02
295
BALL BEARINGTO 005 154 34 02
301
COIL EXCITER TO 343 150 73 50
301
COIL , Replaced By: A0001546625
301
COIL , Replaced By: A0001545325
307
SCREW , Replaced By: A0019906420
307
SCREW , Replaced By: A0019900821
307
SCREW , Replaced By: A0019902120
307
SCREWTO 344 154 71 02
307
SCREW , Replaced By: A0019902120
307
SCREW HOUSING
307
SCREWTO 344 150 73 50
307
SCREW , Replaced By: A0009908321
307
SCREW , MODEL 343.919.000 FROM ENGINE 154150,MODEL 344.919.000 FROM ENGINE 822957
313
RECTIFIERTO 005 154 83 02,006 154 67 02
313
RECTIFIER
315
SCREW-AND-WASHER ASSEMBLY. COMBINATION BOLT
319
CONDENSER
319
CONDENSER , Replaced By: A0011566701
325
REGULATOR AND CUT-OUTTO 005 154 34 02
325
REGULATOR AND CUT-OUTTO 343 150 73 50
331
SCREW , Replaced By: N007985004130
337
SPRING WASHER ALTERNATOR CONNECTION D+
343
REPAIR KIT
343
REPAIR KIT ARMATURE MOUNTING TO 343 150 73 50
349
SEAL RINGTO 005 154 34 02
355
GASKET
361
DIODE NEG. TO 344 154 71 01,344 154 72 01, MODEL 343.919.000 UP TO ENGINE 154149,MODEL 344.919.000 UP TO ENGINE 822956
361
DIODE , Replaced By: A0015481118
367
DIODE POS.
367
DIODE POS.
373
DIODE CARRIER COMPLETE
375
COVERTO 344 150 71 50,80 50,344 154 75 01
377
SEAL RING , MODEL 343.919.000 FROM ENGINE 154150,MODEL 344.919.000 FROM ENGINE 822957
379
FAN WITH PULLEY
379
FAN FAN ONE-GROOVE V-BELT PULLEY
385
PULLEYTO 344 150 73 50
385
PULLEY , MODEL 343.919.000 FROM ENGINE 154150,MODEL 344.919.000 FROM ENGINE 822957
387
WOODRUFF KEY POWER STEERING PUMP
391
LOCK WASHER SUPPORT TO SIDE MEMBER
397
NUT , Replaced By: N308673014001
403
SCREW , Replaced By: A0019900821
403
SCREW HOUSING
403
SCREWTO 344 154 71 02
405
INSULATING PART PARTS KIT B+, MODEL 343.919.000 FROM ENGINE 154150,MODEL 344.919.000 FROM ENGINE 822957
406
INSULATING PART PARTS KIT
407
INSULATING PART , OM 352 FROM ENGINE 823237,OM 352 A FROM ENGINE 822957
