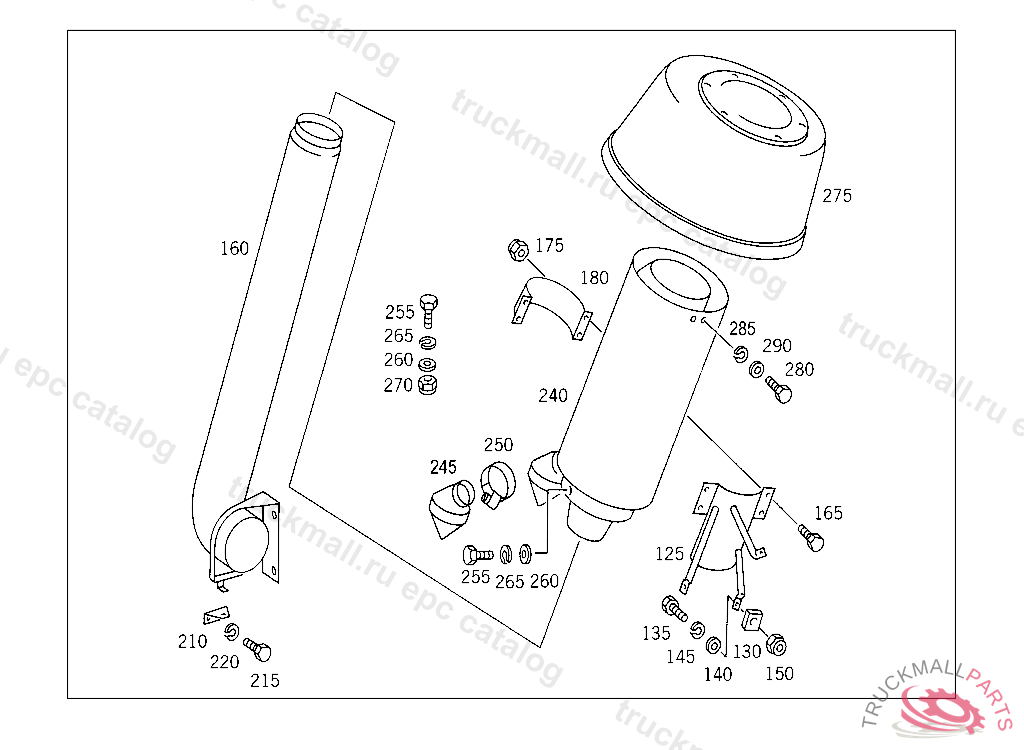

Поз.
Артикул
Описание
125
BRACKET AIR CLEANER,5 094417
130
SHIM
135
SCREW VALVE TO BRACKET, Replaced By: N304014008002
135
SCREW VALVE TO BRACKET
135
SCREW VALVE TO BRACKET
135
SCREW , Replaced By: N304017008021
135
SCREW PIPE CLAMP
135
SCREW PIPE CLAMP
135
SCREW PIPE CLAMP
140
WASHER , Replaced By: N000125008443
140
WASHER EXHAUST MUFFLER TO STRAP
140
WASHER EXHAUST MUFFLER TO STRAP
140
WASHER EXHAUST MUFFLER TO STRAP
145
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
150
NUT
150
NUT
160
AIR INTAKE PIPE ,5 127480
165
SCREW , Replaced By: N304017006020
165
SCREW LICENSE PLATE TO BRACKET
175
NUT , Replaced By: N913004006001
175
NUT PUMP TO BRACKET
180
CLAMP INTAKE PIPE TO BRACKET,5 094417
210
BRACKET ,5 094417
215
SCREW , Replaced By: N304017008034
215
SCREW BRACKET TO CROSS CONNECTION STRUT
220
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
240
AIR CLEANER ,5 094417
245
VALVE CYCLONE
250
CLAMP CYCLONE
255
SCREW , Replaced By: N304017006016
255
SCREW PUMP TO BRACKET
255
SCREW PUMP TO BRACKET
260
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
260
WASHER COMPRESSED AIR LINE TO BRACKET
260
WASHER COMPRESSED AIR LINE TO BRACKET
265
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
270
NUT , Replaced By: N913004006001
270
NUT PUMP TO BRACKET
275
ANTINOISE CAPSULE AIR INTAKE
280
SCREW , Replaced By: N304017006016
280
SCREW PUMP TO BRACKET
285
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
290
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
290
WASHER COMPRESSED AIR LINE TO BRACKET
999
HOSE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0000948482
999
SEAL CONE
999
AIR CLEANER OIL BATH
999
AIR CLEANER OIL BATH
999
STRAP OIL BATH AIR CLEANER
999
BEARING BRACKET OIL BATH AIR CLEANER
999
BOOT OIL BATH AIR CLEANER
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE
999
BUSHING INTAKE MANIFOLD
999
STRAP
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE
999
BRACKET OIL BATH AIR CLEANER
999
BRACKET OIL BATH AIR CLEANER
999
COVERING INTAKE MANIFOLD
999
BOOT INTAKE PIPE TO AIR CLEANER
