Поз.
Артикул
Описание

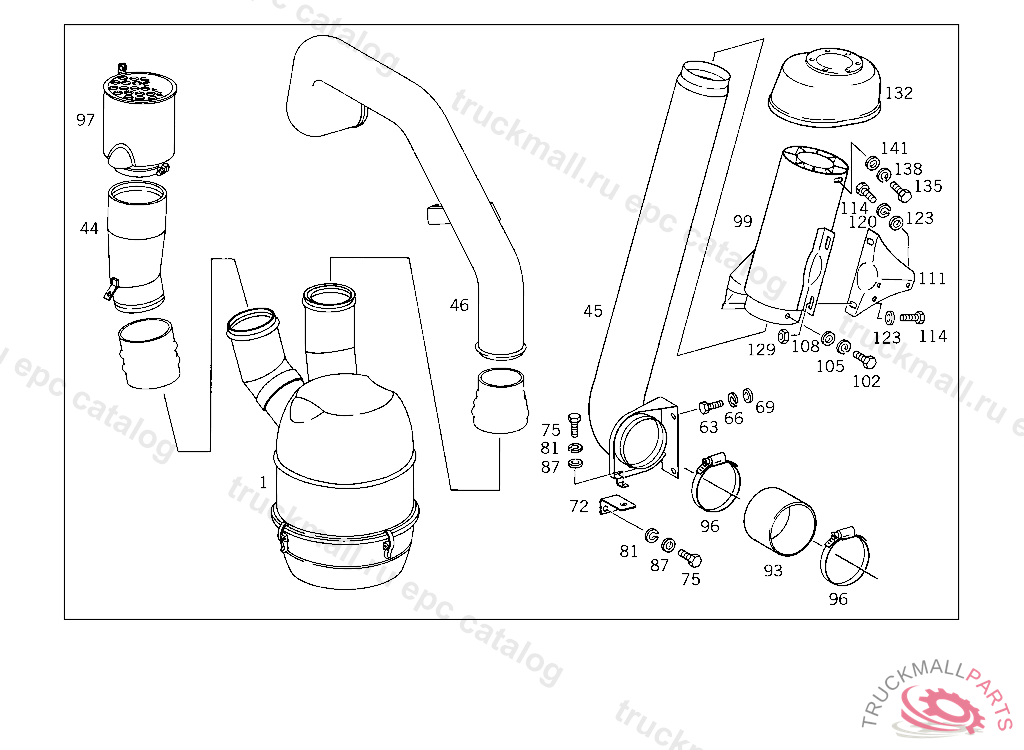

1
AIR CLEANER OIL BATH
44
AIR INTAKE PIPE FROM OIL BATH AIR CLEANER TO CYCLONE AIR TRAP
45
AIR INTAKE PIPE FROM OIL BATH AIR CLEANER TO CYCLONE AIR TRAP,5 094416
46
AIR INTAKE PIPE FROM AIR DUCT TO ENGINE TO 005 094 97 02
46
AIR INTAKE PIPE FROM AIR DUCT TO ENGINE TO 005 094 97 02
63
SCREW PIPE CLAMP
63
SCREW , Replaced By: N304017008021
66
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
69
WASHER EXHAUST MUFFLER TO STRAP
69
WASHER , Replaced By: N000125008443
72
BRACKET AIR INTAKE PIPE, NOT USED
75
SCREW COVER PLATE TO BRACKET
81
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
87
WASHER COMPRESSED AIR LINE TO BRACKET
87
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
93
BOOT AIR INTAKE PIPE TO AIR CLEANER,4 647937
96
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
96
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
96
CLAMP , Replaced By: N000000000678
97
AIR CLEANER
99
AIR CLEANER CYCLONE, NOT USED
102
SCREW COVER PLATE TO BRACKET
105
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
108
WASHER COMPRESSED AIR LINE TO BRACKET
108
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
111
BRACKET CYCLONE, NOT USED
114
SCREW PIPE CLAMP
114
SCREW , Replaced By: N304017008021
120
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
123
WASHER EXHAUST MUFFLER TO STRAP
123
WASHER , Replaced By: N000125008443
129
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
129
NUT , Replaced By: N910113006001
132
ANTINOISE CAPSULE AIR INTAKE
135
SCREW COVER PLATE TO BRACKET
138
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
141
WASHER COMPRESSED AIR LINE TO BRACKET
141
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
VALVE CYCLONE
999
FASTENER
999
LOOM TIE LINE MOUNTING
999
AIR CLEANER , Replaced By: A0050949702, +001A3365200701, +001A3615280091
999
AIR CLEANER OIL BATH
999
AIR CLEANER CYCLONE
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE
999
BUSHING INTAKE MANIFOLD
999
AIR INTAKE PIPE FROM OIL BATH AIR CLEANER TO CYCLONE AIR TRAP
999
AIR INTAKE PIPE FROM AIR DUCT TO ENGINE TO 005 094 07 02
999
AIR INTAKE PIPE
999
STAY STRAP
999
AIR INTAKE PIPE FROM OIL BATH AIR CLEANER TO CYCLONE AIR TRAP,5 094417
999
BRACKET AIR CLEANER,5 094417
999
CLAMP INTAKE PIPE TO BRACKET,5 094417
999
HOSE AIR INTAKE PIPE TO AIR CLEANER,4 832350
999
BRACKET ,5 094417
999
SHIM
999
BOOT INTAKE PIPE TO AIR CLEANER
999
SCREW SHIFT CASE TO SLOTTED GATE
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SCREW , Replaced By: N304017006020
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
NUT BALL PIVOT TO LEVER
999
WASHER , Replaced By: N007349010007
999
WASHER STRUT TO CROSS MEMBER
999
SCREW LICENSE PLATE TO BRACKET
999
HOSE INTAKE PIPE TO AIR CLEANER
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
