Поз.
Артикул
Описание

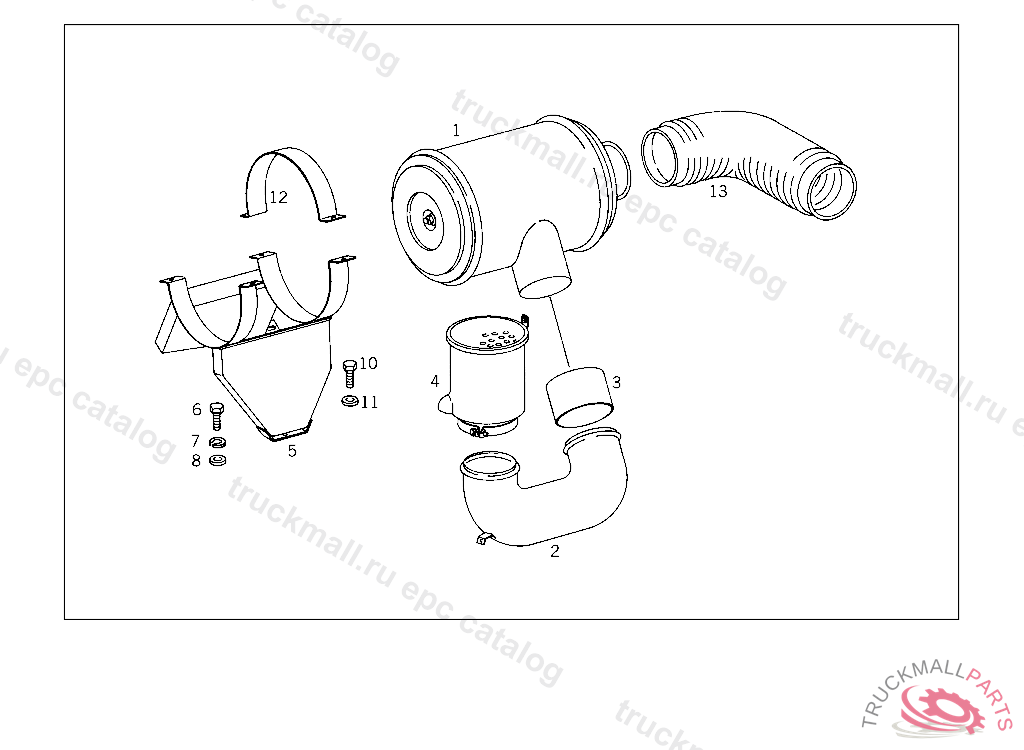

1
AIR CLEANER
2
AIR INTAKE PIPE
3
BOOT
4
AIR CLEANER
5
SUPPORT
6
SCREW BRACKET TO SIDE MEMBER
7
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
8
WASHER BRACKET TO COVERING
8
WASHER , Replaced By: N009021010209
10
SCREW BRACKET TO CROSS CONNECTION STRUT
10
SCREW , Replaced By: N304017008034
11
WASHER , Replaced By: N009021008213
11
WASHER BRACKET TO LEFT SIDE MEMBER
12
CLAMP
13
HOSE
999
VACUUM BOX
999
LOOM TIE , Replaced By: N916018110000
999
FILTER ELEMENT
999
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
999
LOOM TIE , Replaced By: A0009979990
999
LOOM TIE
999
FILTER ELEMENT , Replaced By: A0010941004
999
AIR CLEANER OIL BATH
999
AIR CLEANER OIL BATH
999
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
999
STRAP OIL BATH AIR CLEANER
999
BEARING BRACKET OIL BATH AIR CLEANER
999
BOOT OIL BATH AIR CLEANER
999
AIR INTAKE PIPE
999
BOOT INTAKE PIPE TO AIR CLEANER, THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE
999
AIR INTAKE PIPE
999
BUSHING INTAKE MANIFOLD
999
STRAP
999
STRAP
999
SUPPORT
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE
999
BRACKET OIL BATH AIR CLEANER
999
BRACKET OIL BATH AIR CLEANER
999
COVERING INTAKE MANIFOLD
999
BOOT INTAKE PIPE TO AIR CLEANER
999
SCREW SHIFT CASE TO SLOTTED GATE
999
SCREW LICENSE PLATE TO BRACKET M 6X18,4 707518
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW , Replaced By: N304017008027
999
NUT BALL PIVOT TO LEVER
999
NUT INTERMEDIATE SPEED STOP
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
NUT
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
CLAMP , Replaced By: A0059971490
