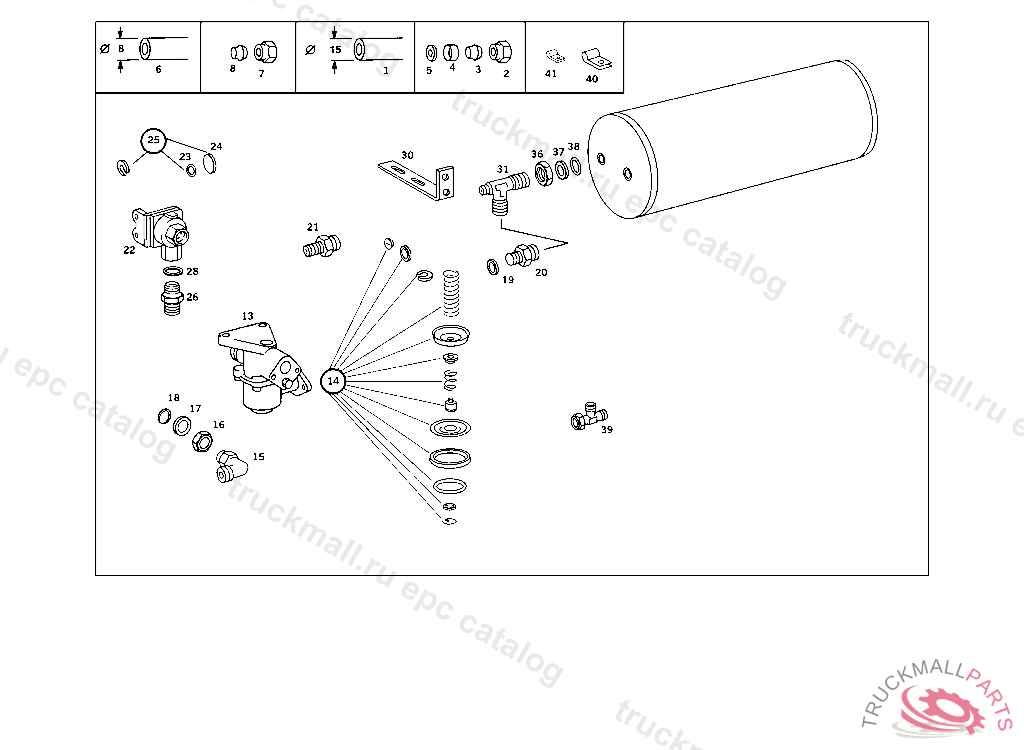

Поз.
Артикул
Описание
1
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
2
UNION NUT AIR COMPRESSOR LINE CONNECTION
2
UNION NUT BUTT SCREW CONNECTION
3
GLAND LINE CONNECTION
4
THRUST RING BUTT SCREW CONNECTION
5
SEAL RING , Replaced By: N007603012121
5
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
6
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
7
UNION NUT LINE CONNECTION
7
UNION NUT , Replaced By: N915017008100
8
GLAND LINE CONNECTION
13
VALVE TRAILER BRAKE,5 116581 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
14
REPAIR KIT
15
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
16
NUT CHECK VALVE TO AIR RESERVOIR
17
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
17
THRUST RING CHECK VALVE TO AIR RESERVOIR
18
O-RING CHECK VALVE TO AIR RESERVOIR
19
SEAL RING LINE CONNECTION
20
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
21
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
22
VALVE
23
SEALING CORD BRAKE POWER REGULATOR
24
DIAPHRAGM , NOT USED
25
REPAIR KIT
26
FITTING , Replaced By: A0019972372
26
FITTING SHUTTLE VALVE,CONNECTION: "20"
28
SEAL RING LINE CONNECTION
30
BRACKET
31
T-FITTING 3/2-WAY VALVE
36
NUT CHECK VALVE TO AIR RESERVOIR
37
THRUST RING CHECK VALVE TO AIR RESERVOIR
37
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
38
O-RING CHECK VALVE TO AIR RESERVOIR
39
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
40
CLAMP DELIVERY AND SUCTION LINES TO STEERING
40
CLAMP , Replaced By: A6739950001
41
CLAMP , Replaced By: A3604300143
41
CLAMP , Replaced By: N916016008200
41
CLAMP ,K 147121, Replaced By: N000000000319
41
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
SCREW BRACKET TO SIDE MEMBER
999
CROSS FITTING
999
T-FITTING COMPRESSED AIR VALVE CONNECTION
999
SCREW PLUG RELAY VALVE,CONNECTIONS: "23"
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT BALL PIVOT TO LEVER
999
SCREW HAND PUMP TO BRACKET
999
SCREW , Replaced By: N304017010002
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SCREW PLUG AT TANK
999
BRACKET
999
VALVE TWO-WAY VOSS
999
BALLTO 003 429 22 44
999
ELBOW FITTING TWO-WAY VALVE,CONNECTION "1.2"
999
REPAIR KITTO 000 429 40 44
999
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
999
PLUG
999
ELBOW FITTING , Replaced By: A0019904371
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION
999
SEAL RING
999
ELBOW FITTING
999
VALVE BODYTO 002 429 95 44
999
VALVE , Replaced By: A0004291182
999
VALVE , Replaced By: A0004290782
999
GASKETTO 003 429 22 44
